Brand: Turck

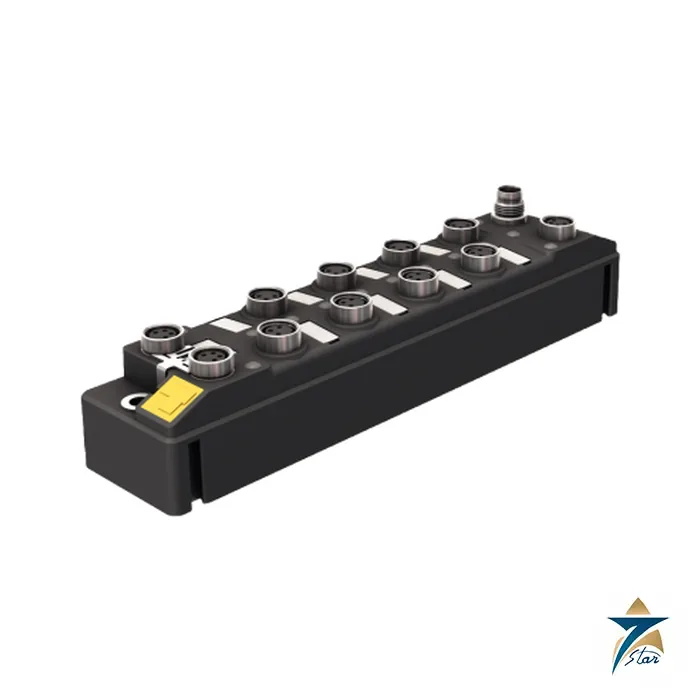

Turck TBEN-S1-8DIP Block I/O Module 8 PNP Inputs M8 Group
Description
TBEN-S1-8DIP in brief
TBEN-S1-8DIP is a compact TBEN-S1 multiprotocol I/O block with eight PNP digital inputs on M8 connectors, input diagnostics per group, and a 4-pin M8 male power connector.
Datasheet feature summary: Shock and vibration tested; Protection classes IP65, IP67, IP69K; ATEX zone 2/22; 4-pin M8 male connector for power supply; PROFINET S2 system redundancy; Fully potted module electronics; Input diagnostics per group; 2 × M8, 4-pin, Ethernet fieldbus connection; Glass fiber reinforced housing.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | TBEN-S1-8DIP |
| Ident number | 6814020 |
| Supply voltage | 24 VDC |
| Admissible range | 18…30 VDC |
| Voltage supply connection | 2 × M8, 4-pin, A-coded |
| Operating current | V1: max. 150 mA |
| Sensor/actuator supply | supply of ports C0-C7 from V1 |
| Fault exclusion | Yes, acc. to EN ISO 13849-2, appendix D.2 |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 × M8, 4-pin |
| Protocol detection | automatic |
| Web server | default: 192.168.1.254 |
| Service interface | Ethernet via P1 or P2 |
| BEEP functionality | Supported |
| ARGEE functionality | Supported |
| Addressing | Static IP, DHCP |
| Supported function codes | FC1, FC2, FC3, FC4, FC6, FC15, FC16, FC23 |
| Number of TCP connections | 8 |
| Input register start address | 0 (0x0000 hex) |
| Output register start address | 2048 (0x0800 hex) |
| Quick Connect (QC) | < 500 ms |
| Device Level Ring (DLR) | supported |
| Class 3 connections (TCP) | 3 |
| Class 1 connections (CIP) | 10 |
| Input Assembly Instance | 103 |
| Output Assembly Instance | 104 |
| Configuration Assembly Instance | 106 |
| Conformance class | B (RT) |
Application notes
This compact S1 type differs from the S2 module by diagnosing the sensor supply per group rather than per port and by using a 4-pin M8 power connector with galvanically separated voltage groups. It is a straightforward way to add eight sensor inputs to a distributed machine. Like all TBEN blocks it offers automatic protocol detection, a web server for configuration, ARGEE programming and an integrated Ethernet switch.
Installation hint: mount the block on a flat surface with the two fixing holes, use the supply and bus connectors the table lists, assign the IP address or use DHCP before connecting to the controller, and fit protective caps on unused ports so the IP65, IP67 or IP69K rating is kept. Check the power budget of the sensor and actuator groups.
Ordering code and what to confirm
Derived from the datasheet titles: TBEN is the Turck block Ethernet family, S1 and S2 are the compact 32 mm wide housings with M8 connections, L4 and L5 are the larger housings with M12 connections (L4 with a 4-pin and L5 with a 5-pin 7/8-inch supply connector in the feature list), DIP means digital PNP inputs, DOP digital PNP outputs and IOL IO-Link master channels. Ident number 6814020 identifies this exact module.
Before ordering, confirm any hazardous-area conditions in the Quick Start Guide, the fieldbus protocol and firmware needed by your PLC, the number and type of channels, the connector style (M8 or M12) of your sensors and valves, and the supply connector. Values on this page are copied or summarised from the manufacturer datasheet; where the datasheet and a later revision differ, the manufacturer document governs.
Documents and quotation
The official Turck datasheet for TBEN-S1-8DIP is hosted here as a PDF so you can check every value before you send an RFQ. Seven Star LLC is an independent supplier in Muscat; we do not set the manufacturer’s specifications, and this page restates what the datasheet prints. For availability and a quotation, send the exact code TBEN-S1-8DIP and your quantity through the PLC & I/O Cards category or the RFQ form.
Datasheets & Documents
- Datasheet Turck TBEN-S1-8DIP Datasheet Download
Reviews (0)
About brand
Turck is a German manufacturer of sensors, connectivity and fieldbus technology for factory and process automation, founded in 1965 and headquartered in Mülheim an der Ruhr. The family-owned group develops and manufactures sensors, connectors, interface technology and I/O systems.
Seven Star LLC is an independent supplier in Muscat. We list Turck sensors and I/O devices for machine builders and maintenance teams in Oman and the GCC.
Turck product series
Most of the Turck products here are inductive proximity sensors: threaded M12, M18 and M30 barrels in flush (BI) and non-flush (NI) versions, uprated-range (U) sensors, rectangular CP40 and CP80 housings and BIM magnetic-field sensors for detecting pistons in pneumatic cylinders. The type code describes the sensor; in BI5-M18-AP6X-H1141, BI means flush mounting, 5 is the switching distance in mm, AP6X a three-wire PNP output and H1141 the M12 connector.
Turck also makes RU ultrasonic sensors, PS pressure, TS temperature and LS level sensors, FCI inline flow sensors, the CMVT vibration and temperature sensor for condition monitoring over IO-Link, and fieldbus and Ethernet I/O modules and communication components.
Where Turck sensors are used
Position detection on conveyors, packaging machines, presses and robotic cells; level, pressure and temperature monitoring on hydraulic units and process skids; and vibration monitoring on motors, pumps and fans.
Ordering Turck sensors: what we need
Send the full type code and the six- or seven-digit ID number printed on the sensor or its label. If the label is missing, give the housing size, flush or non-flush mounting, switching distance, output type (PNP or NPN, NO or NC), supply voltage and connection (cable or connector).
Browse Turck products by category: Inductive Proximity Sensors, Flow Indicators & Switches, Level Instrumentation, Pressure Instrumentation, Temperature Instrumentation, Vibration Monitoring.
Related products
Frequently Asked Questions
Which fieldbus protocols does TBEN-S1-8DIP support?
The datasheet feature list names PROFINET, EtherNet/IP and Modbus TCP, selected by automatic protocol detection.
What supply does TBEN-S1-8DIP need?
Supply voltage 24 VDC with an admissible range of 18…30 VDC, via 2 × M8, 4-pin, A-coded.
What are the housing and protection class of TBEN-S1-8DIP?
Datasheet protection class IP65 (the feature list also names IP67 and IP69K), ambient temperature -40…+70 °C, housing PA6-GF30.
Is TBEN-S1-8DIP listed for hazardous areas?
The feature list names ATEX zone 2/22 and CCC-Ex, and the datasheet refers to the Quick Start Guide for the conditions of use in Ex areas, which must be checked.
What should I confirm before ordering TBEN-S1-8DIP?
Confirm any hazardous-area conditions in the Quick Start Guide, the fieldbus protocol and firmware needed by your PLC, the number and type of channels, the connector style (M8 or M12) of your sensors and valves, and the supply connector.
