Beckhoff LC5100 CANopen Bus Coupler
Description
A CANopen coupler for digital Bus Terminals

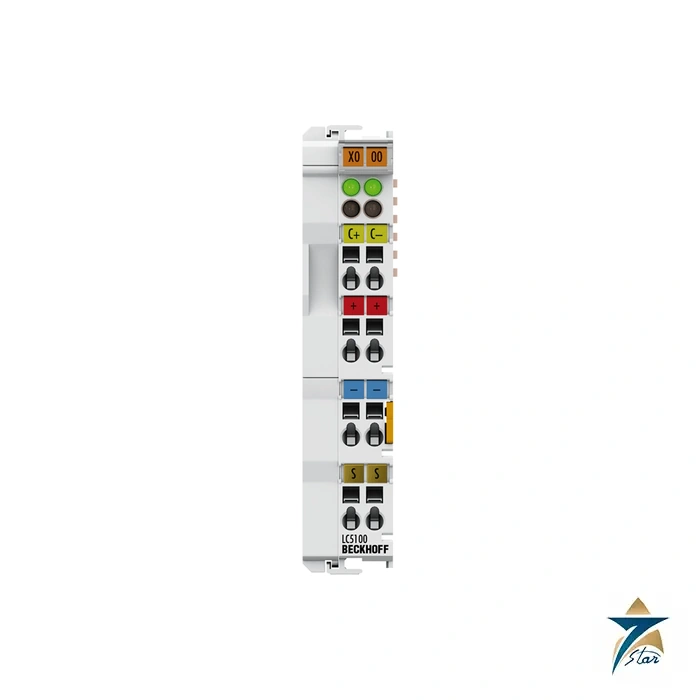

The Beckhoff LC5100 connects supported digital Bus Terminals to a CANopen network. The manufacturer specifies 256 digital signals and five receive plus five transmit PDOs. This low-cost coupler does not support analog peripheral signals.
Terminal selection matters. The LC5100 supports bit-oriented digital terminals with the documented exceptions KL15xx, KL25x2, KL2692 and KL27x1. Check the exact terminal list when replacing an installed coupler or extending an I/O station.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Beckhoff |
| Model | LC5100 |
| Network | CANopen |
| Digital signals | 256 |
| Analog peripheral signals | Not supported |
| PDOs | 5 receive / 5 transmit |
| Supply | 24 V DC, −15%/+20% |
| Maximum supply input current | 200 mA |
| K-bus supply | Up to 500 mA |
| Operating temperature | 0–55 °C |
| Protection | IP20 |
Power and terminal-bank planning
The coupler uses a 24 V DC supply with a −15%/+20% tolerance. Its K-bus supply is rated up to 500 mA. Sum the connected terminal requirements before choosing the station arrangement.
A station supports up to 64 terminals; extension to 255 uses the specified KL9020/KL9050 arrangement. These extension components are separate items. The manufacturer lists no electrical isolation between the power supply, fieldbus and power contacts for LC5100.
Replacement enquiries
Send the LC5100 reference, quantity, CANopen controller details and complete terminal list. Include the station layout, supply arrangement and any extension modules.
Browse Industrial Communications for related network equipment.
Datasheets & Documents
- Manual BK51x0/LC5100 CANopen Manual — version 3.3.0 Download
