Overview

The Winsonic NE10006-004111 is a compact EN50155-compliant, IP68-sealed, unmanaged M12 PoE+ switch built for rolling stock, vehicles, wayside cabinets, and outdoor industrial sites. Its M12 D-coded connectors maintain vibration-safe links, while PoE+ powers cameras, APs, and IIoT sensors at the edge—no external injectors required. Designed for harsh conditions, it runs fanless from −40 to +85°C with sealed aluminum construction for dust and water protection.

Key Features & Specifications

• Ports & Connectors: 5×10/100Base-T(X) M12 D-coded copper; auto-negotiation, full/half-duplex, MDI/MDI-X. 1× M12 A-coded DC input.

• PoE Power: IEEE 802.3af/at (PoE/PoE+), all 5 ports PoE-capable; 15.4 W (af) or 30 W (at) per port (typical). PoE priority: Port 1 > 2 > 3… when budget is exceeded.

• Voltage Booster & Budgets: Built-in booster with total PoE power up to 48 W @ 12 VDC or 96 W @ 24 VDC (room temp). Per spec, series connection of 2 units at 12 V input or 4 units at 24 V input is supported (budget depends on PD loads).

• Ruggedization & EMC: EN50155 compliance; EMI/EMC/EMS per CISPR 32, FCC Part 15B Class A, EN 55032/24; immunity tests IEC 61000-4-2/3/4/5/6/8; shock/vibration IEC 60068-2-27/-64, free fall -2-32. MTBF: 300,000 h, warranty: 3 years.

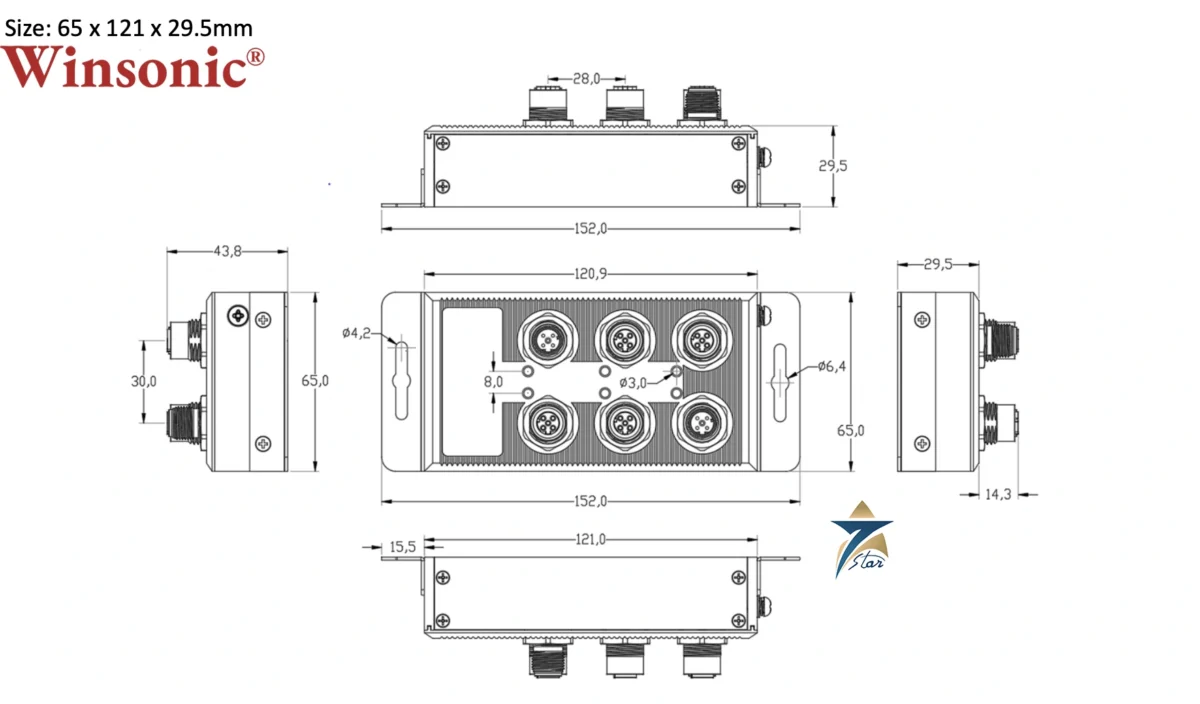

• Thermal & Mechanics: −40~85°C operating; <5 W device consumption (base); IP68 aluminum enclosure; 65 × 121 × 29.5 mm; wall-mount; LED: PWR and Link/ACT. Natural, fanless cooling.

Applications

• Railway Ethernet (rolling stock & wayside): onboard CCTV, AP backhaul, PIS/PA in compact spaces.

• Vehicle & ITS networks: sealed M12 PoE+ edge switching for buses, trams, service fleets.

• Outdoor surveillance & kiosks: PTZ/thermal cameras and small NVRs in IP-rated enclosures.

• Industrial edge/IIoT: rugged PoE+ for sensors and gateways in dusty, wet or vibrating environments.

Helpful Links

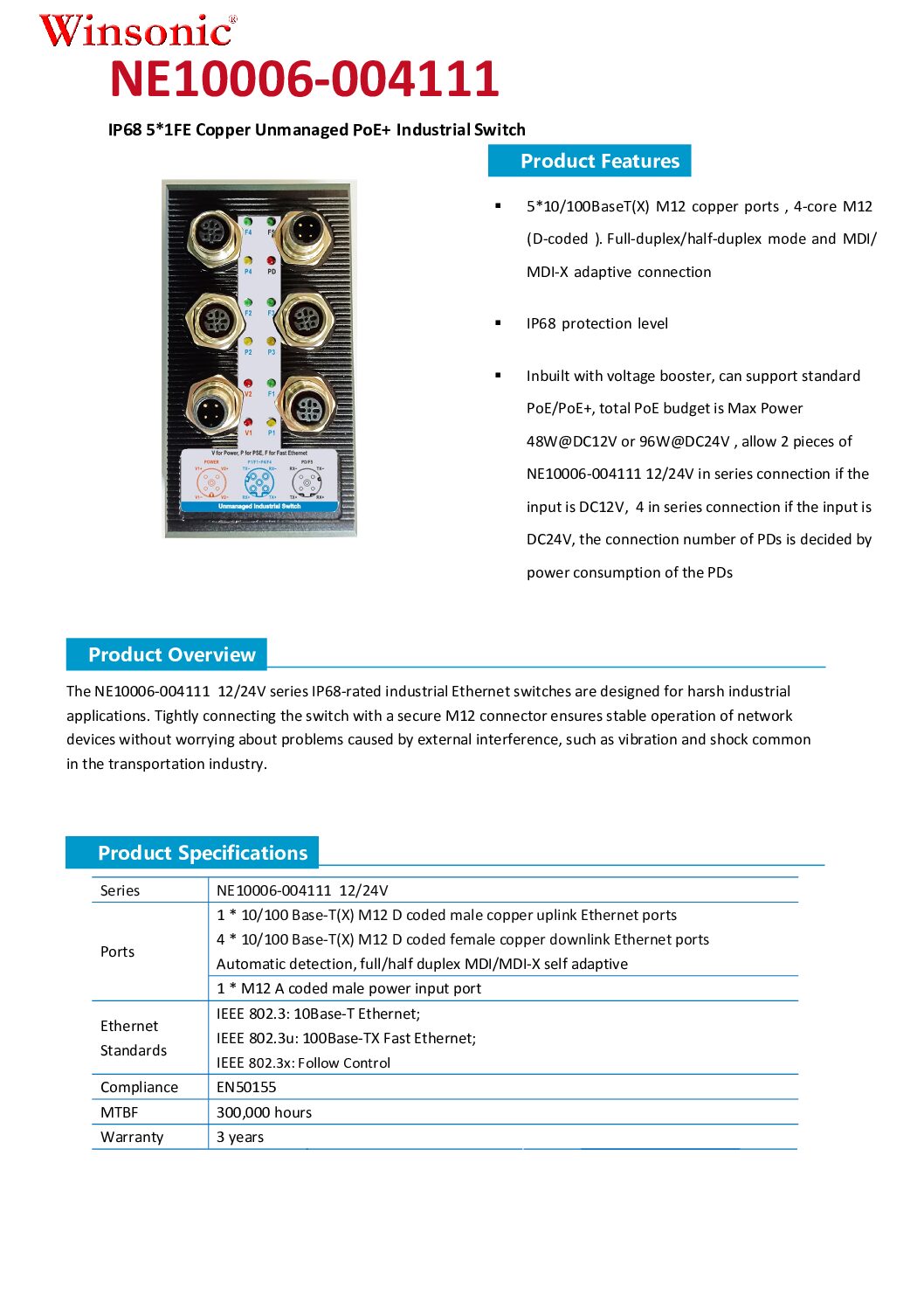

• PDF Datasheet: NE10006-004111 spec

• Official Product Page (Winsonic Website): NE10006-004111

• inquiry (RFQ) : CLICK

FAQ

How many PoE+ ports and what’s the budget?

All 5 M12 D-coded ports support PoE/PoE+ (af/at). Total PoE power is 48 W @ 12 VDC or 96 W @ 24 VDC at room temperature; Port-priority keeps critical PDs powered.

What is the operating temperature and protection rating?

−40~85°C fanless operation with an IP68 sealed aluminum enclosure.

What standards does it meet for rail and EMC?

It’s EN50155-compliant with EMI/EMC/EMS per CISPR 32 / EN 55032/24 and immunity IEC 61000-4-2/3/4/5/6/8; shock/vibration to IEC 60068-2-27/-64.

Power input and wiring?

12–24 V DC via M12 A-coded input; reverse-polarity protection; built-in voltage booster. Series connection: 2 units (12 V) or 4 units (24 V) per spec (validate loads).

Is this a managed switch?

No—unmanaged, true plug-and-play for fast, reliable deployment.
