SICK IME12-04BPSZC0K Inductive Sensor
Description

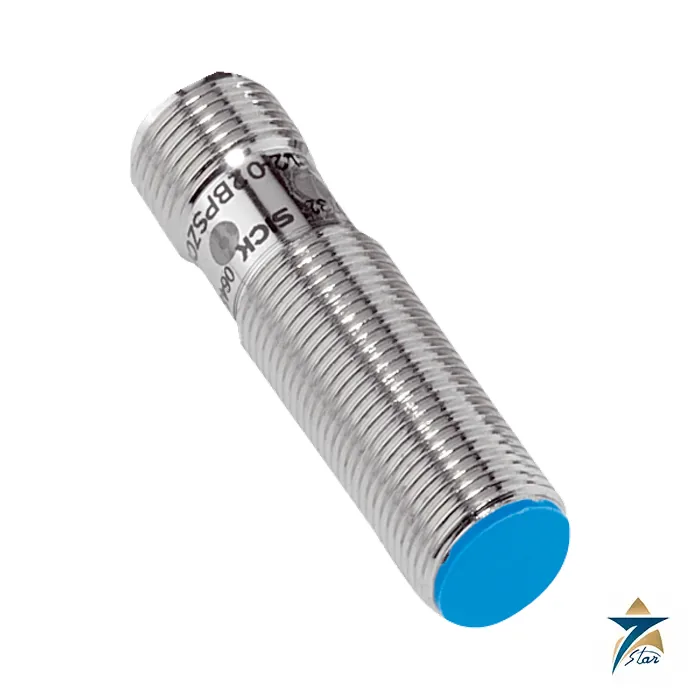

IME12-04BPSZC0K is a SICK IME inductive proximity sensor (part no. 1040763) with short-body housing, threaded M12 x 1 (Ø 12 mm), for non-contact detection of metal targets. The nominal sensing range Sn is 4 mm (safe sensing range Sa 3.24 mm), mounting is flush, and the output is PNP with nO and DC 3-wire wiring, connected through male connector M12, 4-pin.
What the IME12-04BPSZC0K detects and how far away
Reduction factors for other metals, as listed in the data sheet: Note The values are reference values which may vary; St37 steel (Fe) 1; Stainless steel (V2A, 304) Approx. 0.8; Aluminum (Al) Approx. 0.45; Copper (Cu) Approx. 0.4. An inductive sensor detects metal through the damping of a high-frequency field in front of its face, so it needs no contact and has no wearing parts. Flush mounting lets the sensing face sit level with the surrounding metal, and non-flush types need free metal-free space around the face; keep to the installation distances in the data sheet.
Flush mounting lets the face sit level with the surrounding metal. Frequency 2,000 Hz, continuous current up to ≤ 200 mA. Housing: brass, nickel-plated (length 46 mm, thread length 29 mm). Face: plastic, PA 66. Supplied: mounting nut, brass, nickel-plated (2x).
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | IME12-04BPSZC0K |
| Part number | 1040763 |
| EAN | 4047084256950 |
| Product family | IME |
| Housing | Metric |
| Housing material | Short-body |
| Thread size | M12 x 1 |
| Diameter | Ø 12 mm |
| Sensing range Sn | 4 mm |
| Safe sensing range Sa | 3.24 mm |
| Installation type | Flush |
| Switching frequency | 2,000 Hz |
| Connection type | Male connector M12, 4-pin |
| Switching output | PNP |
| Switching output detail | PNP |
| Output function | NO |
| Electrical wiring | DC 3-wire |
| Enclosure rating | IP67 |
| Items supplied | Mounting nut, brass, nickel-plated (2x) |
| Supply voltage | 10 V DC … 30 V DC |
| Ripple | ≤ 10 % |
| Voltage drop | ≤ 2 V |
| Time delay before availability | ≤ 100 ms |
| Hysteresis | 5 % … 15 % |
| Reproducibility | ≤ 2 % ; |
| Temperature drift (of Sr) | ± 10 % |
| EMC | According to EN 60947-5-2 |
| Continuous current Ia | ≤ 200 mA |
| No load current | ≤ 10 mA |
| Short-circuit protection | Yes |
| Power-up pulse protection | Yes |
| Shock and vibration resistance | 30 g, 11 ms/10 Hz … 55 Hz, 1 mm |
| Ambient operating temperature | –25 °C … +75 °C |
| Housing material | Brass, nickel-plated |
| Sensing face material | Plastic, PA 66 |
| Housing length | 46 mm |
| Thread length | 29 mm |
| Tightening torque, max. | ≤ 12 Nm |
| MTTFD | 1,735 years |
| DCavg | 0 % |
| St37 steel (Fe) | 1 |
| Stainless steel (V2A, 304) | Approx. 0.8 |
| Aluminum (Al) | Approx. 0.45 |
| Copper (Cu) | Approx. 0.4 |
| Brass (Br) | Approx. 0.4 |
| B | 24 mm |
| C | 12 mm |
| D | 12 mm |
| F | 32 mm |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; Moroccan declaration of conformity; China RoHS; China Compulsory Product Certification (CCC) exempt; cULus certificate |
Type code IME12-04BPSZC0K and part number 1040763
Use 1040763 as the order key for IME12-04BPSZC0K. Sensors that look alike can be 3-wire or 4-wire, normally open or complementary, and have a standard or short housing, and the PLC wiring depends on those details.
Related catalogue entries in the same family, each ordered under a different number:
- IME12-04BPSZC0S (part no. 1040764)
- IME12-04BPSZC0SS71 (part no. 1115941)
- IME12-04BPSZC0KS21 (part no. 1051971)
- IME12-04BPSZC0KS41 (part no. 1068239)
- IME12-04BPOZC0S (part no. 1040768) – Output function: NC
Mounting, wiring and replacement notes
Wire it to a supply of 10 V DC … 30 V DC. Protection is IP67, and the permitted ambient range in operation is –25 °C … +75 °C. Maximum tightening torque: ≤ 12 Nm. Confirm the PLC input type, the output function and the pin assignment of the M12 plug before ordering a replacement. Check the free-zone distances in the data sheet when sensors are mounted in pairs or next to metal.
Documents and quotation
Attached: the unaltered SICK data sheet for IME12-04BPSZC0K, part number 1040763. It is the reference if anything on this page needs checking. Tell us the quantity and the delivery location in the RFQ form, quoting the part number above, and we will come back with a quotation. Related items are listed under Inductive Proximity Sensors. Before ordering, confirm that output polarity, connection and range match your controller and the device being replaced. If this page and the data sheet ever differ, the data sheet applies.
