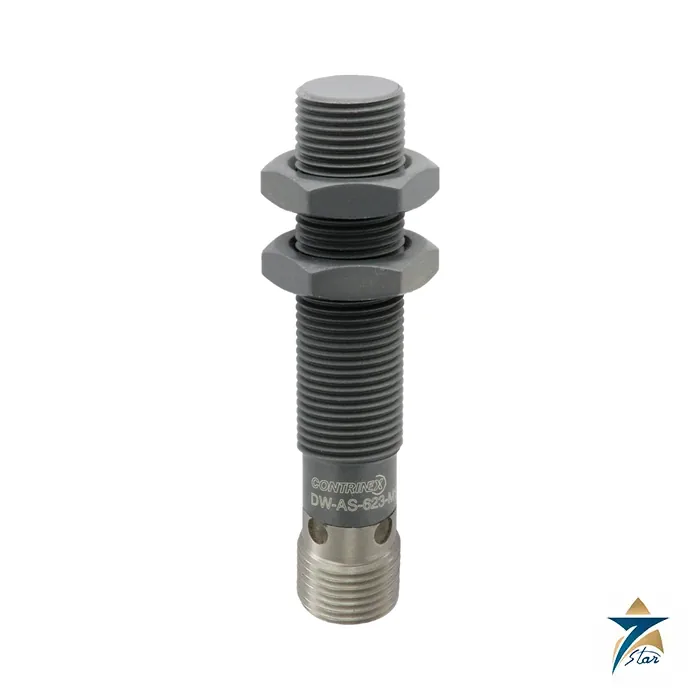

Contrinex DW-AS-623-M12-693 Weld-Immune M12 Inductive Sensor
Description
A coated inductive sensor made for the welding cell
The Contrinex DW-AS-623-M12-693 is an M12 inductive proximity sensor with an anti-spatter coating on a V2A stainless steel body. Contrinex describes the series as magnetic field resistant in welding applications and as having an exceptional price-performance ratio and high repeatability.
It is the smallest threaded body in the classic weld-immune range apart from the M8, and it detects steel at 4 mm in embeddable mounting, with a PEEK sensing face, an M12 4-pin connector and a PNP normally open output.
Technical specifications
| Parameter | Specification |
|---|---|
| Part reference | DW-AS-623-M12-693 (coated); uncoated version DW-AS-623-M12-673 |
| Series | Weld-immune Classics 600, datasheet DW-Ax-62x-M12-6xx (Rev 2) |
| Rated operating distance Sn | 4 mm, embeddable |
| Assured operating distance Sa | Max. 0.81 x Sn |
| Repeat accuracy | Max. 0.2 mm |
| Standard target | 12 x 12 x 1 mm, FE360 |
| Output | PNP, normally open (NO) on pin 4; M12 4-pin connector |
| Supply voltage | 10 to 30 VDC; residual ripple max. 20 % of UB |
| Output current | Max. 200 mA; voltage drop max. 2.0 VDC; residual current max. 0.1 mA |
| Switching frequency | Max. 15 Hz |
| Housing / sensing face | V2A 1.4305 (AISI 303) with anti-spatter coating; sensing face PEEK |
| Max. tightening torque | 10 Nm |
| Ambient temperature | -25 to +70 C (UL: max. 70 C) |
| Enclosure rating | IP67 |
| Weight | 13.3 g |
| Correction factors | Steel 1; copper 1.15; aluminum 1.4; brass 1.6; stainless steel V2A 0 |
| Metal-free zone | a 10 mm, b 35 mm, c 12 mm, steel 0 mm |
| Protections | Short-circuit and voltage reversal protection; yellow indicator LED |
| IO-Link | Not available on this series |
| Approvals as printed | CE, cULus listed |
Selection and installation notes
Use the coated -693 version where weld spatter will land on the sensor body, for example on clamps, fixtures or positioning stops in a robotic welding cell, and the uncoated -673 where there is no spatter. Because the sensor is embeddable it can be flush-mounted in steel, but the datasheet gives a metal-free zone around the sensing face (10 mm, with 35 mm in front) and a correction factor for each material, so the real distance on aluminum or brass differs from the 4 mm steel value.
Torque the lock nuts to no more than 10 Nm. Weld-immune does not mean unlimited: confirm the welding current, the distance to the arc and the magnetic field level with the manufacturer before ordering.
Other models of the weld-immune range, as listed on the Contrinex product pages:
| Part reference | Series | Rated distance Sn |
|---|---|---|
| DW-AS-623-M8-693 | M8 classic weld-immune, coated | 2 mm |
| DW-AS-623-M12-693 | M12 classic weld-immune, coated | 4 mm |
| DW-AS-623-M18-693 | M18 classic weld-immune, coated | 8 mm |
| DW-AS-623-M30-693 | M30 classic weld-immune, coated | 14 mm |
| DW-AS-703-M8-697 | M8 full-inox weld-immune, IO-Link | 3 mm |
| DW-AS-703-M12-693 | M12 full-inox weld-immune, IO-Link | 6 mm |
| DW-AS-703-M18-693 | M18 full-inox weld-immune, IO-Link | 10 mm |
| DW-AS-713-M30-693 | M30 full-inox weld-immune, non-embeddable, IO-Link | 40 mm |
Weld-immune range and alternatives
For a longer sensing distance see the M18 and M30 pages and the full-inox series, and for chip or spatter exposure in a tool environment ask for the matching chip-immune series. Browse the other inductive proximity sensors or compare with the published <a href="Turck BI5-M18 inductive sensor“>Turck BI5-M18.
Documents and quotation
The attached Contrinex datasheet lists every part reference of the series, correction factors, installation distances and connector pin assignment. When requesting a quotation, send the part reference, quantity, target material and mounting arrangement, and state whether a coated or uncoated version is required.
Datasheets & Documents
- Datasheet Contrinex DW-Ax-62x-M12-6xx weld-immune inductive sensor datasheet (Rev 2) Download
Reviews (0)
About brand
Contrinex is a Swiss manufacturer of inductive and photoelectric sensors for factory automation, founded in 1972 by Peter Heimlicher and headquartered in Corminboeuf, Switzerland. The group has grown from a one-man operation into a multinational company with more than 500 employees, and its range also includes distance measurement sensors, RFID systems and safety light curtains. Seven Star LLC supplies Contrinex sensors to industrial customers in Oman and the GCC on inquiry.
Inductive sensors for harsh environments
The inductive range covers miniature, basic, extra-distance, washdown, high-temperature and high-pressure sensors, as well as weld-immune and extreme full-inox designs with IO-Link. Weld-immune sensors with an anti-spatter coating are used on welding fixtures, clamps and robotic cells where standard sensors fail.
Selecting the right Contrinex sensor
Choosing a model depends on thread size, operating distance, embeddable or non-embeddable mounting, output polarity, connector type and the environment. We check each part reference against the manufacturer's datasheet, including the available types table, before quoting.
Related products
Frequently Asked Questions
How far does the DW-AS-623-M12-693 sense?
Rated operating distance Sn is 4 mm, embeddable, on a 12 x 12 x 1 mm FE360 standard target.
What is the coating for?
It is an anti-spatter coating, and the datasheet describes the sensor as magnetic-field resistant in welding applications.
What is the difference to the -673 type?
The -673 is the uncoated version and the -693 is the coated version of the same sensor.
What output and connector does it have?
PNP, normally open on pin 4, with an M12 4-pin connector.
Does it support IO-Link?
No. IO-Link is not available on the 62x series.
