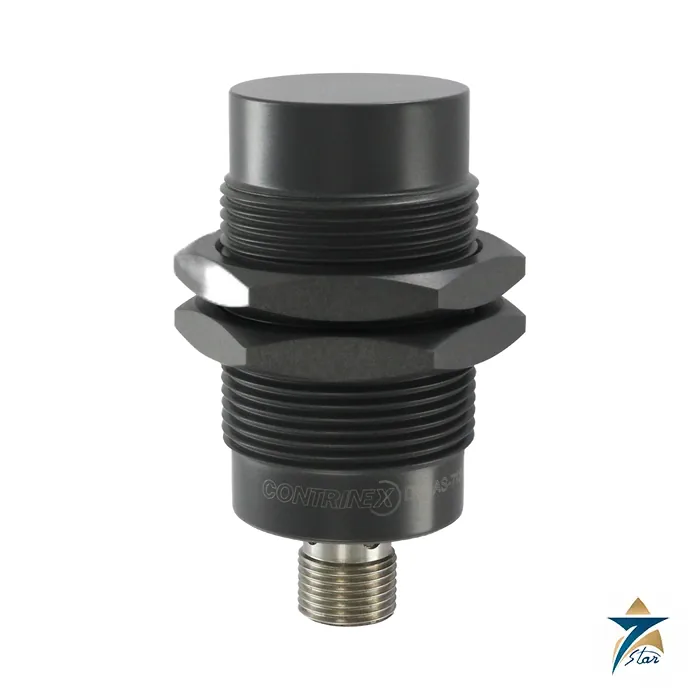

Contrinex DW-AS-713-M30-693 Weld-Immune M30 IO-Link Sensor
Description
A full-metal weld-immune sensor with IO-Link and IP69K protection
The Contrinex DW-AS-713-M30-693 is a non-embeddable M30 weld-immune inductive sensor with a 40 mm rated operating distance, the longest in this family. A full-metal V2A stainless steel body with an anti-spatter coating, IP68/IP69K protection and IO-Link 1.1 make it suitable for detecting parts at a distance from the weld zone.
Contrinex lists immunity to medium-frequency fields up to 15 kA and 50 Hz fields up to 40 mT, with a footnote that the distance to the welding point must be more than 50 mm. The output is PNP normally open on an M12 4-pin connector and the supply is 15 to 30 VDC.
Technical specifications
| Parameter | Specification |
|---|---|
| Part reference | DW-AS-713-M30-693 |
| Series | Weld-immune Full Inox 700, datasheet DW-Ax-71x-M30-6xx |
| Rated operating distance Sn | 40 mm, non-embeddable |
| Assured operating distance Sa | Max. 0.81 x Sn |
| Repeat accuracy | Max. 1.4 mm |
| Standard target | 48 x 48 x 1 mm, FE360 |
| Output | PNP, normally open (NO) / IO-Link on pin 4; M12 4-pin connector |
| Supply voltage | 15 to 30 VDC; residual ripple max. 20 % of UB |
| Output current | Max. 200 mA; voltage drop max. 2.0 VDC; residual current max. 0.1 mA |
| Switching frequency | Max. 15 Hz |
| Housing / sensing face | V2A 1.4305 (AISI 303) with anti-spatter coating |
| Magnetic-field immunity as printed | Medium frequency up to 15 kA; 50 Hz fields up to 40 mT |
| Max. tightening torque | 150 Nm |
| Ambient temperature | -25 to +85 C (UL: max. 70 C) |
| Enclosure rating | IP68 / IP69K |
| Weight | 137 g (connector version) |
| IO-Link | Version 1.1; SIO mode supported; 7-bit process data input; COM2 (38.4 kBaud); min. cycle time 10.4 ms; ISDU not supported |
| Correction factors (target) | Steel 1; copper 0.8; aluminum 1; brass 1.2; stainless steel V2A 0.2 (1 mm) / 0.6 (2 mm) |
| Metal-free zone | a 90 mm, b 300 mm, c 120 mm, steel 16 mm |
| MTTF at 40 C | 1028 years |
Selection and installation notes
Because the sensor is non-embeddable, the metal around the sensing face must be kept clear: the datasheet gives 90 mm to the side, 300 mm in front and 120 mm behind the face, with steel allowed from 16 mm. Repeat accuracy is 1.4 mm, so it is a robust presence sensor for large parts, bins and carriers rather than a fine positioning sensor.
At 137 g, the housing needs a rigid bracket, and the maximum tightening torque is 150 Nm. Check the supply range (15 V minimum, unlike the smaller sizes) and the IO-Link master before ordering.
Other models of the weld-immune range, as listed on the Contrinex product pages:
| Part reference | Series | Rated distance Sn |
|---|---|---|
| DW-AS-623-M8-693 | M8 classic weld-immune, coated | 2 mm |
| DW-AS-623-M12-693 | M12 classic weld-immune, coated | 4 mm |
| DW-AS-623-M18-693 | M18 classic weld-immune, coated | 8 mm |
| DW-AS-623-M30-693 | M30 classic weld-immune, coated | 14 mm |
| DW-AS-703-M8-697 | M8 full-inox weld-immune, IO-Link | 3 mm |
| DW-AS-703-M12-693 | M12 full-inox weld-immune, IO-Link | 6 mm |
| DW-AS-703-M18-693 | M18 full-inox weld-immune, IO-Link | 10 mm |
| DW-AS-713-M30-693 | M30 full-inox weld-immune, non-embeddable, IO-Link | 40 mm |
Weld-immune range and alternatives
Embeddable M12 and M18 sizes are on their own pages. Browse the other inductive proximity sensors or compare with the published Turck BI5-M18 inductive sensor“>Turck BI5-M18.
Documents and quotation
The attached Contrinex datasheet lists every part reference of the series, correction factors, installation distances and connector pin assignment. When requesting a quotation, send the part reference, quantity, target material and mounting arrangement, and state whether a coated or uncoated version is required.
