Contrinex DW-AS-703-M18-693 Weld-Immune M18 IO-Link Sensor

A full-metal weld-immune sensor with IO-Link and IP69K protection

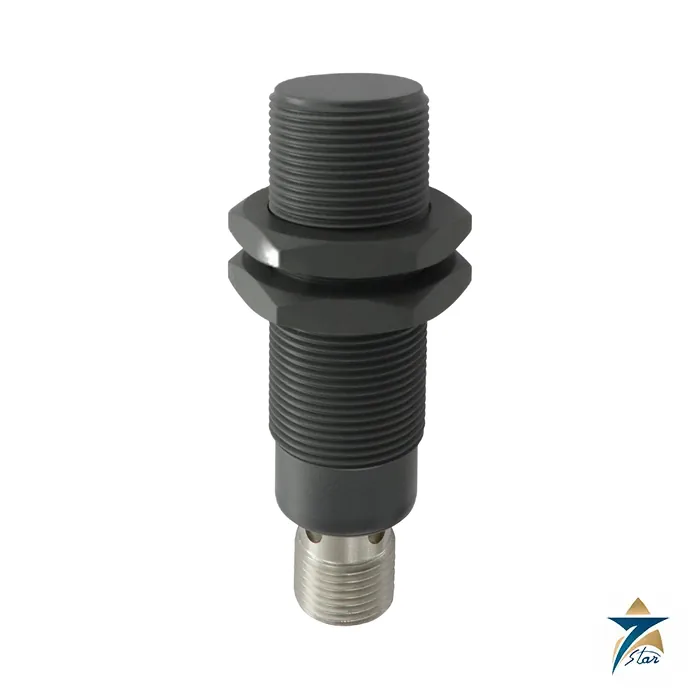

The Contrinex DW-AS-703-M18-693 is the M18 full-inox weld-immune inductive sensor with a 10 mm embeddable sensing distance. It is a one-piece V2A stainless steel sensor with an anti-spatter coating, designed for medium-frequency fields up to 15 kA and 50 Hz fields up to 40 mT as printed by Contrinex.

Outputs are PNP normally open or IO-Link 1.1 on an M12 4-pin connector, supply is 10 to 30 VDC, and the enclosure rating is IP68/IP69K. The M18 size is the most common format on welding fixtures and gun-position feedback.

Technical specifications

Selection and installation notes

Compared with the classic M18 sensing 8 mm, this model adds 2 mm of distance, IO-Link and a higher ambient temperature limit (-25 to +85 C). The metal-free zone is 25 mm around the face and 50 mm in front, and the correction factors are 1 for steel, 0.85 for copper and 1 for aluminum. Embedded in a steel support the distance is further multiplied by 0.7.

The maximum tightening torque is 50 Nm and the switching frequency is 15 Hz, so this is a position and presence sensor rather than a counting sensor. Confirm the IO-Link master and the welding field level before ordering.

Other models of the weld-immune range, as listed on the Contrinex product pages:

Weld-immune range and alternatives

Other sizes of the range are on the M12 and M30 pages. Browse the other inductive proximity sensors or compare with the published Turck BI5-M18 inductive sensor“>Turck BI5-M18.

How the Contrinex DW-AS-703-M18-693 works

The sensor makes a high-frequency magnetic field at its face, and a metal target in this field changes the oscillation, so the output switches. In welding cells there are strong fields from the welding current. The weld-immune design keeps the sensor stable in these fields, and the one-piece stainless steel body with an anti-spatter coating resists weld spatter and hard washdown. The IO-Link 1.1 interface can also send process data to the controller.

Where the DW-AS-703-M18-693 is used

• Welding fixtures and clamp position feedback
• Welding gun position detection
• Robot welding cells in the automotive industry
• Machines washed down at high pressure
• Lines that need sensor data over IO-Link

Selection checklist for the DW-AS-703-M18-693

• Sensing distance of 10 mm, embeddable
• Output: PNP normally open or IO-Link
• M12 4-pin connector
• Supply of 10 to 30 VDC
• Ambient temperature up to 85 degrees C, or 70 degrees C for UL
• Enclosure rating IP68 and IP69K
• Target material and correction factor
• Metal-free zone around the face

Installation, commissioning and maintenance notes

Fit the sensor in the bracket and tighten it to no more than 50 Nm. Keep the metal-free zone clear, which is 25 mm around the face and 50 mm in front. If the sensor is embedded in a steel support, apply the lower correction factors. Connect the M12 cable and check the output by moving a target to the face. Use the IO-Link master for settings, and keep the spatter coating clean and undamaged.

Requesting a quotation for the DW-AS-703-M18-693

Please send the part reference, the quantity and the cable needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

DW-AS-703-M18-693 magnetic field immunity

The sensor is listed for medium frequency fields up to 15 kA and 50 Hz fields up to 40 mT.

DW-AS-703-M18-693 electrical data

The output current is up to 200 mA and the voltage drop is up to 2.0 VDC. The switching frequency is up to 15 Hz.

DW-AS-703-M18-693 IO-Link

The IO-Link version is 1.1 at 38.4 kBaud with a minimum cycle time of 10.4 ms, and SIO mode is supported.

DW-AS-703-M18-693 accuracy and weight

The repeat accuracy is 0.5 mm or better, and the weight is 53 g with the connector.

Sensor records for DW-AS-703-M18-693

Keep the fitting position, the IO-Link settings and the replacement dates with the welding cell file.

Choosing the right DW-AS-703-M18-693 mounting

Check whether the sensor will be flush in a steel support or free in air, because the correction factors differ. In a steel support the distance falls to about 0.7 of the free value. The standard target is 30 x 30 x 1 mm of FE360 steel, and smaller or thinner targets shorten the working distance.

DW-AS-703-M18-693 compared with the 8 mm type

This model offers 10 mm of distance, IO-Link and a higher temperature limit than the classic M18 sensor with 8 mm.

Documents and quotation

The attached Contrinex datasheet lists every part reference of the series, correction factors, installation distances and connector pin assignment. When requesting a quotation, send the part reference, quantity, target material and mounting arrangement, and state whether a coated or uncoated version is required.
