Schneider Electric Vamp 257 Feeder Protection Relay

Overview

The Schneider Electric Vamp 257 Feeder Protection Relay is a numerical protection relay from the Vamp range engineered for feeder and motor protection applications in medium-voltage substations and industrial power systems. For protection engineers across Oman and the GCC, the Vamp 257 combines overcurrent, earth-fault, and motor-specific protection functions in one relay platform, reducing the number of separate devices needed to protect a critical feeder or large motor circuit.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the Schneider Electric Vamp 257 Feeder Protection Relay numerical feeder and motor protection relay to industrial, commercial, and utility customers across the Sultanate of Oman and the wider GCC. Every unit is supplied on request with full technical documentation and local application support, giving panel builders and facility engineers in Oman confidence in their numerical feeder and motor protection relay investment from procurement through commissioning.

Operating Principle

The Vamp 257 continuously digitizes current and voltage inputs from instrument transformers and applies protection algorithms in real time to detect overcurrent, earth-fault, unbalance, and thermal overload conditions relevant to the protected feeder or motor. When a monitored parameter crosses its configured threshold for the set time delay, the relay issues a trip command and records the event with time-stamped waveform data for later analysis.

Motor-specific protection elements built into the Schneider Electric Vamp 257 model thermal behavior over time, tracking motor temperature rise based on measured current and configured thermal time constants, so the relay can trip on sustained overload before winding insulation is damaged while still permitting normal starting inrush current. This thermal modeling capability makes the Vamp 257 particularly suited to protecting large motors in Oman’s process industries where unplanned motor failure carries significant production cost.

Engineering Design of the Schneider Electric Vamp 257

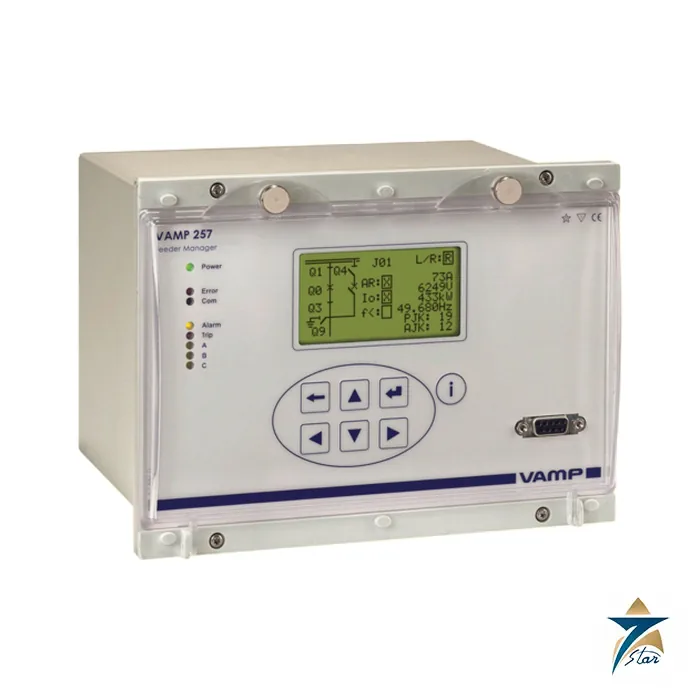

The Vamp 257 is housed in a panel or rack-mount case with a front display for local settings review, event browsing, and metering values, and a full complement of digital inputs and output contacts for breaker control, alarming, and interlocking with adjacent protection devices. Communication ports support standard substation protocols for integration into SCADA and power management systems used across Oman’s utility and industrial networks.

Internally, the Schneider Electric Vamp 257 separates measurement, protection, and communication processing to maintain fast, reliable trip response even while running multiple protection elements and continuous disturbance recording in parallel. Setting groups can be password protected and switched based on operating conditions, letting the relay adapt its protection profile automatically between, for example, normal running and motor starting conditions.

Key Features

The Schneider Electric Vamp 257 Feeder Protection Relay is built around design priorities that matter most to feeder and motor protection specifiers in Oman and the GCC:

• The Vamp 257 combines overcurrent, earth-fault, and motor thermal protection in one relay platform.
• Thermal overload modeling tracks motor temperature rise to protect against sustained overload conditions.
• Time-stamped event and waveform recording supports detailed post-disturbance analysis.
• Multiple switchable setting groups adapt protection profiles between running and starting conditions.
• Standard substation communication protocols support SCADA and power management integration.
• A front-panel display provides local access to settings, events, and real-time metering values.
• Configurable digital inputs and outputs support breaker control and interlocking schemes.
• Password-protected setting groups prevent unauthorized changes to protection parameters.

Industrial Applications

The Schneider Electric Vamp 257 Feeder Protection Relay is deployed on medium-voltage feeders and large motor circuits in utility substations and industrial plants across Oman, wherever combined feeder and motor protection functionality in a single relay reduces panel complexity and cost. Protection engineers in Muscat specify the Vamp 257 for critical process motors where thermal overload protection is essential to avoiding costly unplanned downtime.

With fast quotation turnaround and technical support, Seven Star LLC distributes the Schneider Electric Vamp 257 Feeder Protection Relay to panel builders, MEP contractors, and plant operators throughout Muscat, Sohar, and Salalah, supporting district cooling plants, RO desalination facilities, oil and gas installations, commercial towers, and hospital complexes across the GCC. Our technical team supports specifiers in Oman who source the Schneider Electric Vamp 257 Feeder Protection Relay, with lead time and availability confirmed at quotation.

Technical Specifications

The table below summarizes the key technical parameters of the Schneider Electric Vamp 257 Feeder Protection Relay relevant to specification and procurement.

Request a Quote for Schneider Electric Vamp 257 Feeder Protection Relay

Facility engineers and procurement teams in Oman and across the GCC can request a formal RFQ for the Schneider Electric Vamp 257 Feeder Protection Relay directly from Seven Star LLC’s instrumentation and low-voltage division. We supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and offer pre-sales engineering support to confirm compatibility before order placement. With engineering support in Muscat, Seven Star LLC supports the Schneider Electric Vamp 257 Feeder Protection Relay from specification and quotation through delivery, with technical support and spares on request.

Because the Schneider Electric Vamp 257 shares its configuration tools and communication architecture with the broader Vamp protection relay family, utilities and industrial operators in Oman can standardize commissioning workflows and spare relay stock across multiple feeder and motor bays rather than supporting several incompatible relay platforms. Seven Star LLC’s protection engineering team can assist with relay setting calculations to ensure the Vamp 257 coordinates correctly with upstream and downstream devices before energization.

Because the Schneider Electric Vamp 257 shares its configuration tools and communication architecture with the broader Vamp protection relay family, utilities and industrial operators in Oman can standardize commissioning workflows and spare relay stock across multiple feeder and motor bays rather than supporting several incompatible relay platforms. Seven Star LLC’s protection engineering team can assist with relay setting calculations to ensure the Vamp 257 coordinates correctly with upstream and downstream devices before energization.
