Schneider Electric BMEP582040 Modicon M580 ePAC Processor

Overview

The Schneider Electric BMEP582040 is a standalone processor of the Modicon M580 ePAC (Ethernet programmable automation controller) platform. Schneider Electric lists it as a Level 2 processor with remote I/O capability: it provides 8 MB of integrated program memory, manages up to 2,048 discrete and 512 analog I/O channels on its local racks, and its two Ethernet device ports act as a remote I/O (RIO) and distributed equipment (DIO) scanner. The 40 suffix is what separates it from the BMEP582020, whose device ports only scan distributed equipment, so this model is the entry point for M580 architectures with Ethernet remote I/O drops.

Seven Star LLC supplies the Schneider Electric BMEP582040 to system integrators, process plants, utilities and oil and gas operators in Oman and the GCC, with engineering support in Muscat. It is widely used where a site needs a mid-sized process controller with remote drops in field substations or motor control centres, and where existing Modicon X80 or Premium knowledge can be reused.

Operating Principle

The M580 was designed with an Ethernet backbone: the processor, the Ethernet backplane, communication modules and remote drop adapters all exchange data over Ethernet, which gives transparent access to diagnostics and device data from SCADA and engineering tools. The Schneider Electric BMEP582040 executes the application written in EcoStruxure Control Expert (formerly Unity Pro) in IEC 61131-3 languages, at about 40 K instructions per millisecond for 100% Boolean code and 30 K instructions per millisecond for a mix of 65% Boolean and 35% fixed-point arithmetic.

Modicon X80 I/O modules in the local rack are scanned through the backplane, while remote drops built with BM•CRA312•0 adapters are connected to the device ports in a ring using RSTP, so a single cable break does not interrupt the I/O. With the remote drops, the Schneider Electric BMEP582040 extends to 8 remote I/O drops and a combined maximum of 10,240 discrete and 2,560 analog channels, and the CPU can scan up to 61 EtherNet/IP or Modbus TCP distributed devices. Change Configuration On The Fly (CCOTF) allows I/O modules, and even complete remote drops, to be added in RUN mode.

Engineering Design of the Schneider Electric BMEP582040

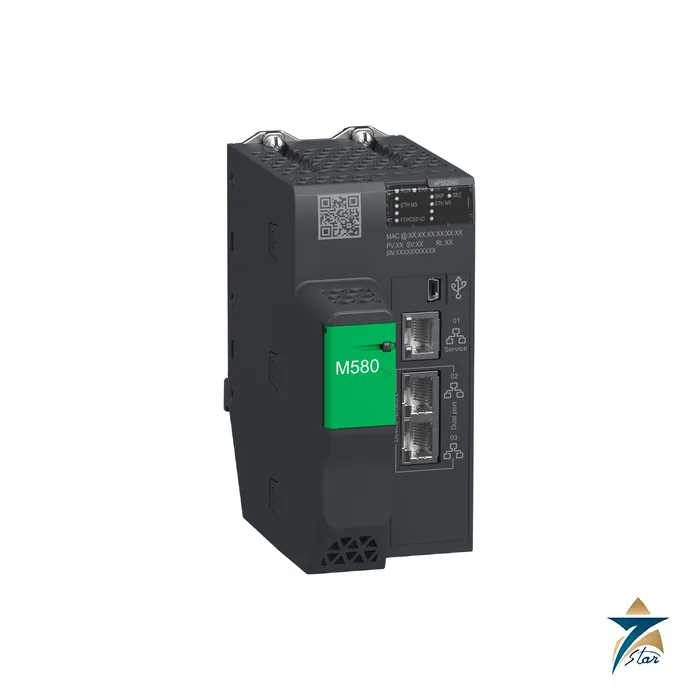

The Schneider Electric BMEP582040 occupies two slots (0 and 1) on a Modicon X80 X-bus or Ethernet backplane and is fixed with two hooks and screws that also provide the ground connection. A display block of eight LEDs (RUN, ERR, I/O, DL, BACKUP, ETH MS, ETH NS and FORCED I/O) gives quick status, and the front panel carries the serial number, product version and MAC address. Ports include a Mini-B USB programming port with a useful data rate of 480 Mbps, an RJ45 Ethernet service port for the engineering console, HMI, SCADA or distributed devices, and the dual RJ45 device network ports.

The internal application RAM of the Schneider Electric BMEP582040 is backed up to persistent memory, and an optional industrial-grade 4 GB SD card, BMXRMS004GPF, stores the application and data with operating capability from -40 to +85 °C. Application protection can be applied by loading only executable code, using a memory protection bit, and signing function blocks. The module weighs 0.849 kg. Schneider Electric offers most Modicon products in coated or hardened versions for harsh environments, and the catalog lists M580 compliance, depending on model, with CE, UL, CSA, RCM, UKCA, Class I Division 2, ATEX/IECEx Zone 2/22 and marine IACS E10 requirements.

Key Features

The Schneider Electric BMEP582040 brings the main M580 benefits to mid-sized systems:

• 8 MB integrated program memory with persistent backup and an optional 4 GB SD memory card.
• Local capacity of 2,048 discrete, 512 analog and 72 application-specific channels.
• Remote I/O scanner for up to 8 Ethernet RIO drops, extending to 10,240 discrete and 2,560 analog channels.
• Dual RJ45 device ports with RSTP ring redundancy, plus a separate Ethernet service port and Mini-B USB port.
• Cybersecurity features recognised by Achilles Level 2 certification of the platform and CSPN certification of the controller by ANSSI, with the ability to disable unused services.
• Secure Engineering Link over HTTPS with firmware V4.20 or later and EcoStruxure Control Expert V16 or later.
• Online program changes and Change Configuration On The Fly to add modules and remote drops without stopping the process.
• Support for Modicon X80 HART analog modules, with up to 6 HART modules in the main rack and 7 in each remote drop.

Industrial Applications

In Oman’s oil and gas sector, the Schneider Electric BMEP582040 controls gathering stations, water injection and produced water plants, tank farms and utility systems, with remote drops placed in field substations and the controller in a central control room. Water and wastewater utilities use it for treatment plants, pumping stations and reservoirs, where HART analog modules bring transmitter diagnostics into the controller and the Ethernet backbone feeds SCADA directly. Power plants and desalination facilities apply it to balance-of-plant, chemical dosing and cooling water systems.

Process industries in Sohar, Duqm and Salalah, including fertiliser, cement, mining and food plants, choose the Schneider Electric BMEP582040 when they need remote I/O over Ethernet without the cost of a larger CPU. When more memory or more drops are needed, the same project can move to a higher M580 processor, and a Hot Standby BMEH processor can be used where redundancy is mandatory. Seven Star LLC supplies the processor together with backplanes, power supplies, X80 I/O, remote drop adapters and SD cards for projects across the GCC.

For variable speed control on the same network, see the Schneider Electric ATV320U15N4C Altivar 320 drive.

Technical Specifications

Values for the Schneider Electric BMEP582040 are taken from the Modicon M580 catalog DIA6ED2151012EN:

How to Order

For a Schneider Electric BMEP582040 offer, send Seven Star LLC the I/O list, number of remote drops, required communication modules and the backplane and power supply arrangement. Our Muscat team will confirm the processor level, check delivery to sites in Oman and the GCC, and supply the documentation; for the Schneider Electric BMEP582040 datasheet values, the Modicon M580 catalog DIA6ED2151012EN is attached to this page. Related products on our site include the Schneider Electric Modicon M241 logic controller, the Schneider Electric Magelis HMISTU655 touch panel and the Schneider Electric Altivar Process ATV930 drive.
