Schischek ExMax-S-3P Explosion-Proof Rotary Actuator, Size S

Name: Schischek ExMax-S-3P Ex Rotary Actuator – Datasheet & Quote
Brand: Schischek
SKU: ExMax-S-3P

Description

Compact ATEX actuator for dampers and small valves

The Schischek ExMax-S-3P is the base datasheet of the size S ExMax quarter-turn actuator line: on-off or 3-position control, a universal 24 to 240 VAC/DC supply and 95 degrees of rotation including 5 degrees of pretension. It is built for safety, control and shut-off dampers, VAV systems, ball valves and throttle valves in explosion-hazard areas of chemical, pharmaceutical, industrial and offshore or onshore plants. The datasheet is now published by Rotork, whose logo it carries, and Schischek is a Rotork brand.

Technical specifications

Parameter	Specification
Datasheet type designation	ExMax-… , -F, -S, -SF; special options -CTS, -VAS (ExMax-S-3P is the file name used by the publisher)
Types	ExMax-5.10 (5 / 10 Nm), ExMax-15.30 (15 / 30 Nm), ExMax-5.10-F (spring 10 Nm), ExMax-15-F (spring 15 Nm)
Supply	24 to 240 VAC/DC +/-10 percent, self-adapting, 50 to 60 Hz +/-20 percent
Control mode	On-off and 3-position, selected by wiring; wiring diagrams SB 1.0, SB 2.0/2.1, aux switches SB 3.0
Motor running time	3 / 15 / 30 / 60 / 120 s per 90 degrees, adjustable on site
Spring return (F)	3 or 10 s per 90 degrees; response up to 1 s after voltage interruption; min. 10,000 operations at 10 s
Auxiliary switches	Versions -S and -SF: 2 potential-free switches at 5 and 85 degrees; 250 VAC / 5 A max.
Power consumption	About 4 to 11 W holding; about 16 W for the heater
Housing	Aluminium die-cast, coated; -CTS seawater-resistant coating; -VAS stainless steel 1.4581
Dimensions / weight	210 x 95 x 80 mm; about 3.5 kg aluminium, about 7 kg stainless steel
Shaft / connection	Double square 12 x 12 mm; M16 x 1.5 cable gland; cable about 1 m, 0.5 mm2
Ambient	-40 to +70 degrees C storage; working -40 to +40 degrees C at T6, -40 to +50 degrees C at T5; heater integrated
Certification as printed	EPS 17 ATEX 1 132 X, IECEx EPS 17.0065X; Ex db [ib Gb] IIC T6, T5 Gb and Ex tb [ib Db] IIIC T80/T95 degrees C Db; CE0158; IP66

Choosing the right ExMax-S variant

Torque is set on site, so a 5.10 unit can be used at 5 or 10 Nm and a 15.30 unit at 15 or 30 Nm. Pick the -F type when the damper must move to a safe position on loss of supply, and the -S or -SF suffix when end-position signals are needed. The sibling datasheets of this line cover the Ex-i tripping circuit (BF), 4-20 mA control (CY), fast spring return (F1), multi-turn (R) and modulating (Y) versions.

Parameters at delivery are 5 Nm and 30 s per 90 degrees for the 5.10 types and 15 Nm and 30 s for the 15.30 types. A shaft clamp, shaft reducers, a stainless steel weather shield, a hand override and Ex-e terminal boxes are listed accessories.

What to confirm before ordering

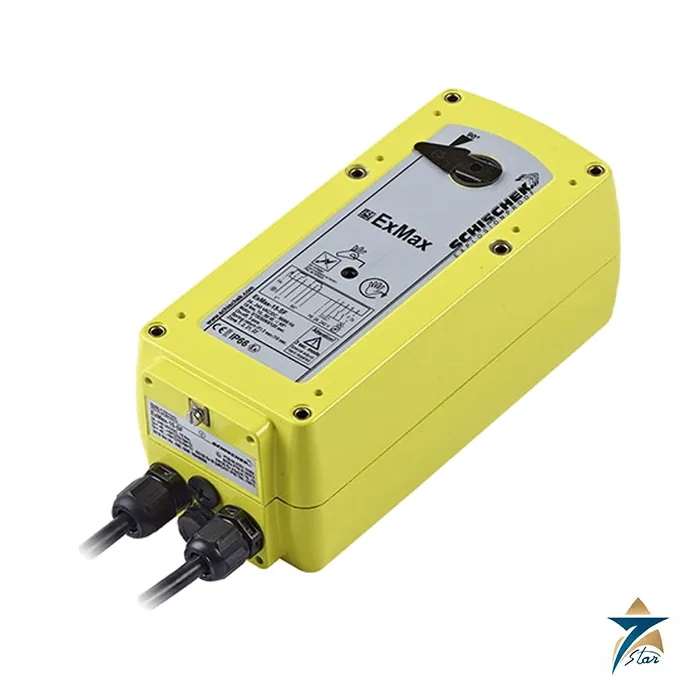

Specify the full type code including suffix and coating option, torque, running time, supply voltage and the zone and temperature class of the installation. The datasheet states that connections in hazardous areas need an Ex-e terminal box, so list one if the design calls for it. Check shaft size and travel against the damper or valve. The photo on this page is a manufacturer family image of a size S ExMax actuator and may not show this exact type variant.

Documents and quotation

This page carries the datasheet PUB113-439 for the ExMax-S-3P exactly as the manufacturer issued it. Requests are handled by Seven Star LLC, an independent supplier based in Muscat. Send the complete type code with suffix, torque and supply and we reply with price, lead time and availability. Other actuators are listed in Valve Actuators.

Datasheets & Documents

Datasheet Rotork Schischek ExMax-S-3P datasheet PUB113-439 Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Schischek makes explosion-proof HVAC products, including damper and valve actuators, sensors and controllers, and is now a Rotork brand. Seven Star LLC lists the Schischek ExMax and RedMax rotary actuators on this page and supplies them from Muscat as an independent supplier, with each type code checked against the manufacturer's datasheet.

Schischek actuator families listed here

The ExMax line is ATEX tested for zones 1, 2, 21 and 22 and comes in a size S housing (5 to 30 Nm) and a size M housing (24 to 150 Nm). The RedMax line shares the size M housing but is tested for zone 2 and zone 22 locations. Versions on this page include 3-position and on-off drives, spring return actuators, the BF type with an Ex-i tripping circuit for fire damper temperature triggers, 4 to 20 mA and modulating Y types with feedback, and a multi-turn type. All run from a 24 to 240 VAC/DC supply unless the datasheet states 24 V only.

Ordering Schischek actuators: what we need

Send the complete type code including the suffix and coating option, the torque, the running time, the supply voltage and the zone and temperature class of the installation. Terminal boxes, brackets, weather shields and shaft adapters are listed in each datasheet as separate accessories, so name them in the request.
