Brand: Schischek
Schischek ExMax-S-F1 Fast Spring-Return Ex Rotary Actuator
Description
One-second fail-safe for safety dampers
The Schischek ExMax-S-F1 is the fast fail-safe version of the size S ExMax. Where the standard spring return takes 3 to 10 s, the F1 closes the damper in about 1 s per 90 degrees after the supply is cut or line 3 is opened, with 6 Nm (type 8-F1) or 12 Nm (type 15-F1) of spring torque. It is on-off controlled and suits safety and shut-off dampers that must move to the safe position almost immediately.
Technical specifications
| Parameter | Specification |
|---|---|
| Types | 8-F1 (motor 8 Nm, spring about 6 Nm), 15-F1 (motor 15 Nm, spring about 12 Nm); -SF1 adds 2 aux switches; -BF1 adds aux switches and an Ex-i tripping circuit |
| Spring return time | About 1 s per 90 degrees; varies at low temperatures, consult the manufacturer |
| Safety operations | Min. 1,000 at 1 s; observe the minimum external load |
| Minimum external load | 2 Nm (8-F1) and 5 Nm (15-F1) |
| Control mode | On-off; spring return on voltage interruption or opening of line 3 |
| Supply | 24 to 240 VAC/DC; about 7 to 17 W holding |
| Motor running time | 3 / 15 / 30 / 60 / 120 s per 90 degrees; 30 s at delivery |
| Wiring diagrams | SB 2.4/2.5; with aux switches SB 3.2; with Ex-i circuit SB 7.4 |
| Cable | About 6.2 mm; -SF1 6.2 + 7.4 mm; -BF1 about 9.3 mm; M16 x 1.5 |
| Dimensions / weight | 210 x 95 x 80 mm; about 3.5 kg; stainless about 7 kg |
| Working temperature | -20 to +40 degrees C at T6; -20 to +50 degrees C at T5 |
| IECEx non-electrical | IECEx EPS 20.0027 as printed in this datasheet |
| Certification as printed | EPS 17 ATEX 1 132 X, IECEx EPS 17.0065X; Ex db [ib Gb] IIC T6, T5 Gb and Ex tb [ib Db] IIIC T80/T95 degrees C Db; CE0158; IP66 |
Fast spring return limits
A one second spring return puts mechanical load on the damper, so the datasheet requires a minimum external load and warns that low temperatures change the return time. The working range starts at -20 degrees C, narrower than the -40 degrees C of the slower spring return types. Keep this in mind for cold climate or outdoor intakes.
What to confirm before ordering

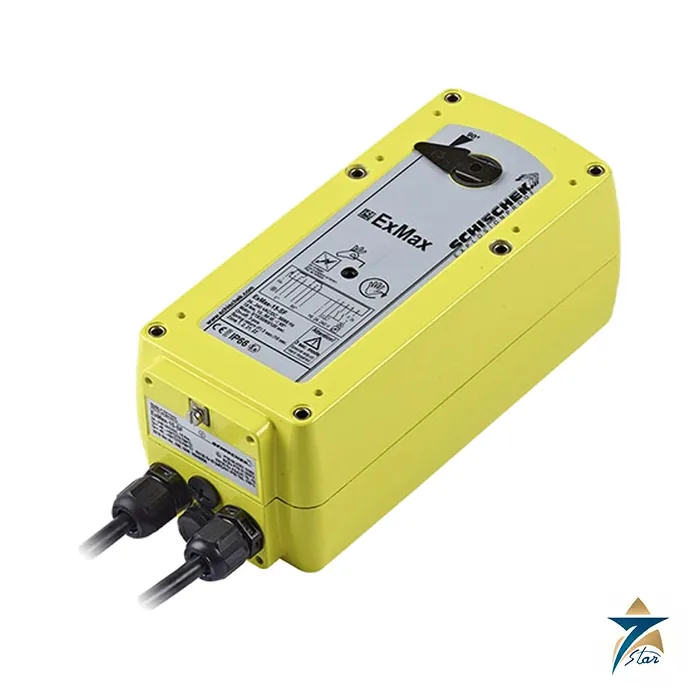

Name the exact suffix (F1, SF1 or BF1), the motor torque, the damper’s required closing time, the load, and the supply voltage. The BF1 version is used with an ExPro-TT temperature trigger. A terminal box rated for the zone is needed for field wiring. The photograph here is the manufacturer’s family picture of a size S ExMax and not specific to the F1 type.
Documents and quotation
The datasheet PUB113-442 for the ExMax-S-F1 published by the manufacturer is hosted here for download. Seven Star LLC, an independent supplier in Muscat, handles the quotation. Please include the exact designation, torque, supply and quantity in your request so the quotation matches your order. Other actuators are listed in Valve Actuators.
Datasheets & Documents
- Datasheet Rotork Schischek ExMax-S-F1 datasheet PUB113-442 Download
Reviews (0)
About brand
Schischek makes explosion-proof HVAC products, including damper and valve actuators, sensors and controllers, and is now a Rotork brand. Seven Star LLC lists the Schischek ExMax and RedMax rotary actuators on this page and supplies them from Muscat as an independent supplier, with each type code checked against the manufacturer's datasheet.
Schischek actuator families listed here
The ExMax line is ATEX tested for zones 1, 2, 21 and 22 and comes in a size S housing (5 to 30 Nm) and a size M housing (24 to 150 Nm). The RedMax line shares the size M housing but is tested for zone 2 and zone 22 locations. Versions on this page include 3-position and on-off drives, spring return actuators, the BF type with an Ex-i tripping circuit for fire damper temperature triggers, 4 to 20 mA and modulating Y types with feedback, and a multi-turn type. All run from a 24 to 240 VAC/DC supply unless the datasheet states 24 V only.
Ordering Schischek actuators: what we need
Send the complete type code including the suffix and coating option, the torque, the running time, the supply voltage and the zone and temperature class of the installation. Terminal boxes, brackets, weather shields and shaft adapters are listed in each datasheet as separate accessories, so name them in the request.
