Schischek ExMax-S-CY 4-20 mA Ex Rotary Actuator, 24 V
Description
Current-signal positioning for hazardous HVAC
The Schischek ExMax-S-CY is the analogue-controlled version of the size S ExMax actuator. It takes a 4 to 20 mA setpoint, returns a 0 to 10 VDC position feedback, and runs from a 24 VAC/DC supply only. It suits modulating dampers and VAV boxes in hazardous areas where a plant controller gives a current signal. A CYF variant adds spring return with a running time of about 10 s per 90 degrees.
Technical specifications
| Parameter | Specification |
|---|---|
| Types | 5.10-CY (5 / 10 Nm), 15.30-CY (15 / 30 Nm), 5.10-CYF (spring min. 10 Nm), 15-CYF (spring min. 15 Nm) |
| Supply | 24 VAC/DC +/-10 percent, 50 to 60 Hz; about 8 to 12 W holding, about 16 W heater |
| Control signal Y | 4 to 20 mA with galvanic separation from supply |
| Feedback U | 0 to 10 VDC; load 2 kohm to infinity; input resistance of YU 10 kohm |
| Motor running time | 7.5 / 15 / 30 / 60 / 120 s per 90 degrees; 7.5 s at 24 V is S3 50 percent ED duty |
| Spring return (CYF) | About 10 s per 90 degrees; response up to 1 s; min. 10,000 operations |
| Wiring diagrams | SB 6.0 (CY), SB 6.1 (CYF) |
| Adjustment | Self-adjustment drive started by a push button (T); required before first operation |
| Cable | About 1 m, diameter about 8 mm, M16 x 1.5; Ex-e terminal box required in hazardous areas |
| Dimensions / weight | 210 x 95 x 80 mm; about 3.5 kg; shaft 12 x 12 mm double square |
| Working temperature | -40 to +40 degrees C at T6; -40 to +50 degrees C at T5 |
| Certification as printed | EPS 17 ATEX 1 132 X, IECEx EPS 17.0065X; Ex db [ib Gb] IIC T6, T5 Gb and Ex tb [ib Db] IIIC T80/T95 degrees C Db; CE0158; IP66 |
Using the analogue version
Before first operation the actuator must be put through its self-adjustment mode so that the end stops and rotation angle are learned gently. This also applies when an external mechanical limit restricts travel. The 24 V-only supply is the main difference from the 24 to 240 V multi-voltage 3-position and Y types, so confirm the plant supply before choosing it.
What to confirm before ordering

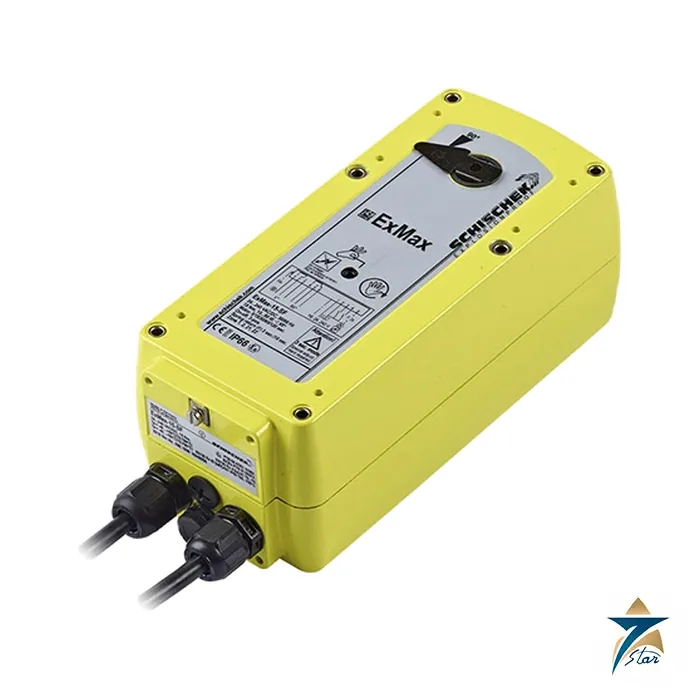

Give type code and suffix, torque, running time, spring return need, signal type and the supply voltage. Check that the controller output can drive a 4 to 20 mA input. For hazardous-area wiring include an Ex-e terminal box. This page uses the manufacturer’s family photograph of a size S ExMax, which is not specific to the CY version.
Documents and quotation
You can download the manufacturer’s datasheet PUB113-441 for the ExMax-S-CY from this page. We supply from Muscat as an independent company. For a quotation, give us the nameplate type code, voltage and number of units; price and availability follow on request. Other actuators are listed in Valve Actuators.
Datasheets & Documents
- Datasheet Rotork Schischek ExMax-S-CY datasheet PUB113-441 Download
Reviews (0)
About brand
Schischek makes explosion-proof HVAC products, including damper and valve actuators, sensors and controllers, and is now a Rotork brand. Seven Star LLC lists the Schischek ExMax and RedMax rotary actuators on this page and supplies them from Muscat as an independent supplier, with each type code checked against the manufacturer's datasheet.
Schischek actuator families listed here
The ExMax line is ATEX tested for zones 1, 2, 21 and 22 and comes in a size S housing (5 to 30 Nm) and a size M housing (24 to 150 Nm). The RedMax line shares the size M housing but is tested for zone 2 and zone 22 locations. Versions on this page include 3-position and on-off drives, spring return actuators, the BF type with an Ex-i tripping circuit for fire damper temperature triggers, 4 to 20 mA and modulating Y types with feedback, and a multi-turn type. All run from a 24 to 240 VAC/DC supply unless the datasheet states 24 V only.
Ordering Schischek actuators: what we need
Send the complete type code including the suffix and coating option, the torque, the running time, the supply voltage and the zone and temperature class of the installation. Terminal boxes, brackets, weather shields and shaft adapters are listed in each datasheet as separate accessories, so name them in the request.
