Brand: Schischek
Schischek ExMax-M-3P Explosion-Proof Rotary Actuator, Size M
Description
Higher-torque ATEX actuator in the size M housing
The Schischek ExMax-M-3P covers the larger housing of the ExMax line for bigger dampers, ball valves and throttle valves. Without spring return it delivers 50 / 75 Nm, 100 Nm or 150 Nm, and with spring return 30, 50 or 60 Nm. It runs on 24 to 240 VAC/DC with on-off or 3-position control, 95 degrees of rotation, and carries IP66/IP67 protection. The datasheet is published by Rotork.
Technical specifications
| Parameter | Specification |
|---|---|
| Types | ExMax-50.75 (50 / 75 Nm), ExMax-100 (100 Nm), ExMax-150 (150 Nm); -F types: 30-F, 50-F, 60-F (spring about 20 s per 90 degrees) |
| Motor running time | 40 / 60 / 90 / 120 / 150 s per 90 degrees (150 Nm and 60-F without 150 s) |
| Control mode | On-off and 3-position; wiring SB 1.0, spring return types SB 2.2 / 2.3, aux switches SB 3.0 |
| Supply | 24 to 240 VAC/DC +/-10 percent; about 4 to 11 W holding, about 16 W heater |
| Auxiliary switches | Versions -S and -SF: 2 potential-free switches at 5 and 85 degrees |
| Safety operations | Min. 10,000 at 20 s for spring return types |
| Output shaft | Double square 16 x 16 mm; 100 percent overload protected |
| Housing | Aluminium die-cast; -CTM seawater coating; -VAM stainless steel; IP66/IP67 |
| Dimensions / weight | About 288 x 149 x 116 mm; about 9.5 kg aluminium; about 15 kg stainless |
| Duty | 80 percent ED permitted |
| Ambient | Working -40 to +40 degrees C at T6, +50 degrees C at T5 |
| Special versions | -S3: up to +60 degrees C (T4), 110 to 240 VAC/DC, 25 percent ED; -S17: 3 m cable |
| Certification as printed | EPS 17 ATEX 1 132 X, IECEx EPS 17.0065X; Ex db [ib Gb] IIC T6, T5 Gb and Ex tb [ib Db] IIIC T80/T95 degrees C Db; CE0158; IP66/IP67 |
Which size M type to pick
Select the torque with a margin over the damper or valve requirement, remembering that the 80 percent rule applies to spring return torque: the external load should not exceed 80 percent of the spring torque, and at least 10 Nm. The 50.75 type is adjustable between 50 and 75 Nm on site. Parameters at delivery are 50, 100 and 150 Nm with 90 s per 90 degrees.
What to confirm before ordering
Provide the full type code with suffix, torque, shaft size, running time, voltage, zone and temperature class. Accessories listed include ExBox terminal boxes, the MKK-M bracket, ExSwitch external switches, the HV-MK manual override, AR-16 shaft reducers and the WS-M weather shield.
Documents and quotation
This page carries the datasheet PUB113-457 for the ExMax-M-3P exactly as the manufacturer issued it. Seven Star LLC is an independent supplier in Muscat. Price, delivery time and availability are quoted once we have the type code, torque, running time and quantity. Other actuators are listed in Valve Actuators.
Datasheets & Documents
- Datasheet Rotork Schischek ExMax-M-3P datasheet PUB113-457 Download
Reviews (0)
About brand
Schischek makes explosion-proof HVAC products, including damper and valve actuators, sensors and controllers, and is now a Rotork brand. Seven Star LLC lists the Schischek ExMax and RedMax rotary actuators on this page and supplies them from Muscat as an independent supplier, with each type code checked against the manufacturer's datasheet.
Schischek actuator families listed here

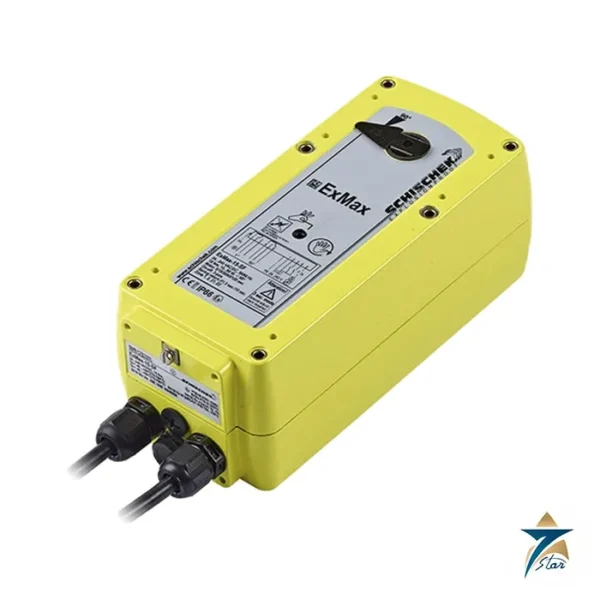

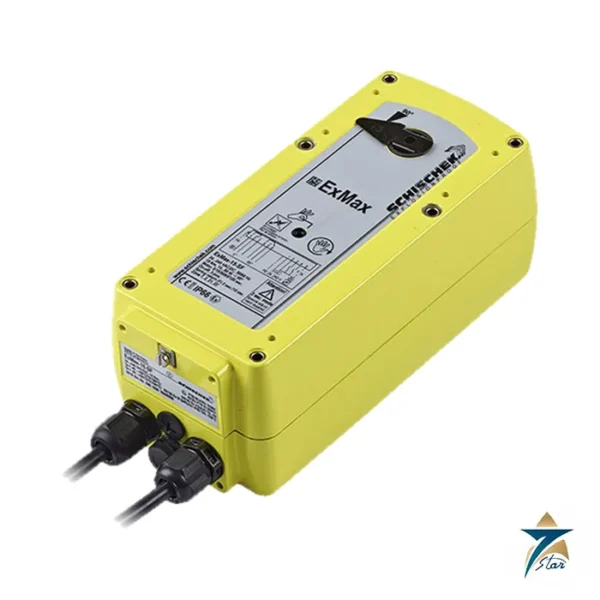

The ExMax line is ATEX tested for zones 1, 2, 21 and 22 and comes in a size S housing (5 to 30 Nm) and a size M housing (24 to 150 Nm). The RedMax line shares the size M housing but is tested for zone 2 and zone 22 locations. Versions on this page include 3-position and on-off drives, spring return actuators, the BF type with an Ex-i tripping circuit for fire damper temperature triggers, 4 to 20 mA and modulating Y types with feedback, and a multi-turn type. All run from a 24 to 240 VAC/DC supply unless the datasheet states 24 V only.
Ordering Schischek actuators: what we need
Send the complete type code including the suffix and coating option, the torque, the running time, the supply voltage and the zone and temperature class of the installation. Terminal boxes, brackets, weather shields and shaft adapters are listed in each datasheet as separate accessories, so name them in the request.
Related products
Frequently Asked Questions
What torque range does the ExMax-M-3P cover?
50 to 150 Nm without spring return and 30 to 60 Nm with spring return.
What shaft connection is used?
A double square 16 x 16 mm direct coupling.
What are the dimensions and weight?
About 288 x 149 x 116 mm and about 9.5 kg in aluminium.
What protection class is stated?
IP66/IP67 according to EN 60529.
Can it be used above 50 degrees C?
Only the special -S3 version is listed for up to +60 degrees C at T4, with 25 percent ED.
