Moxa EDS-205A 5-Port Unmanaged Ethernet Switch
Description
A compact five-port switch for cabinets and harsh sites

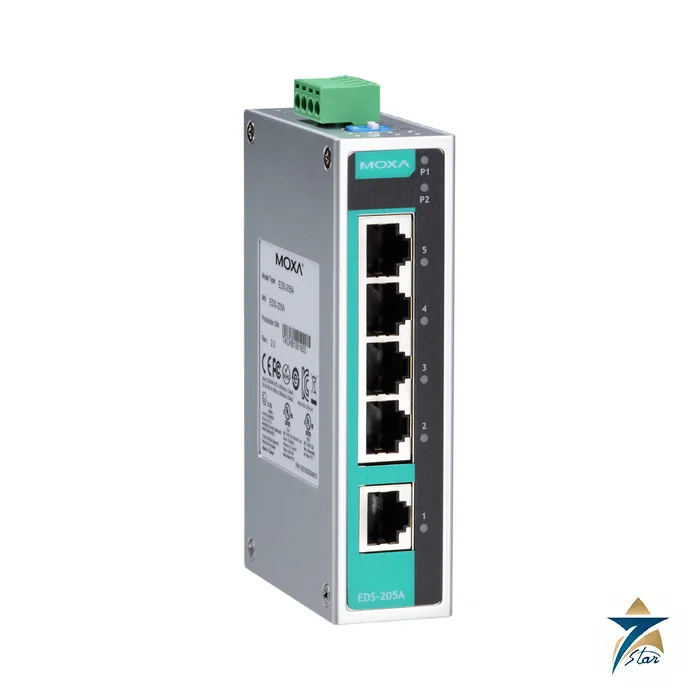

The Moxa EDS-205A is a five-port unmanaged Ethernet switch in an IP30 aluminium housing. It forwards 10/100 Mbit/s traffic on five RJ45 ports with auto-negotiation and auto MDI/MDI-X, so patch cables and crossover cables are both accepted. There is nothing to configure beyond two DIP switches for broadcast storm protection and Quality of Service, which makes it a plug-and-play choice for small control-panel networks, skid packages, CCTV drops and PLC-to-HMI links. Moxa lists maritime (DNV, LR, ABS, NK), hazardous-location (Class I Div. 2, ATEX Zone 2, IECEx), rail wayside (EN 50121-4) and traffic-control (NEMA TS2) approvals for the series, and compliance with PROFINET Conformance Class A.
Technical specifications
| Parameter | Specification |
|---|---|
| Ports (EDS-205A / 205A-T) | 5 x 10/100BaseT(X), RJ45, auto-negotiation, full/half duplex, auto MDI/MDI-X |
| Standards | IEEE 802.3, 802.3u, 802.3x flow control |
| MAC table / packet buffer | 2K / 768 kbits, store and forward |
| DIP switches | Broadcast storm protection, QoS (enabling QoS also enables multicast filtering, which blocks LLDP and PROFINET PTCP-Delay traffic) |
| Power input | 12/24/48 VDC redundant dual inputs, operating range 9.6 to 60 VDC, 0.29 A max. |
| Power connection | 1 removable 4-contact terminal block; overload and reverse-polarity protection |
| Housing / protection | Aluminium, IP30 |
| Dimensions / weight | 30 x 115 x 70 mm / 175 g |
| Mounting | DIN rail; wall mounting with optional WK-30 kit |
| Operating temperature | EDS-205A: -10 to 60 deg C; EDS-205A-T: -40 to 75 deg C |
| Storage / humidity | -40 to 85 deg C / 5 to 95 percent, non-condensing |
| Safety and EMC | UL 61010-1, UL 61010-2-201, UL 62368, EN 62368-1; EN 55032/35, FCC Part 15B Class A; IEC 61000-4-2/-3/-4/-5/-6/-8 |
| Hazardous locations / maritime | IECEx, ATEX, Class I Division 2; ABS, LR, NK, DNV |
| MTBF / manufacturer warranty | EDS-205A: 3,969,664 hrs (Telcordia); 5 years |
Models in the EDS-205A series
All variants share the same housing and power section. The suffix tells you the uplink: M is multi-mode, S is single-mode, SC or ST is the fibre connector, and T is the -40 to 75 deg C range.
| Model | RJ45 ports | 100BaseFX port | Typical distance | Operating temperature |
|---|---|---|---|---|
| EDS-205A | 5 | – | – | -10 to 60 deg C |
| EDS-205A-T | 5 | – | – | -40 to 75 deg C |
| EDS-205A-M-SC / -M-SC-T | 4 | 1 multi-mode SC | 4 km (OM1 to OM4) | -10 to 60 / -40 to 75 deg C |
| EDS-205A-M-ST / -M-ST-T | 4 | 1 multi-mode ST | 5 km (50/125 um) | -10 to 60 / -40 to 75 deg C |
| EDS-205A-S-SC / -S-SC-T | 4 | 1 single-mode SC | 40 km (G.652) | -10 to 60 / -40 to 75 deg C |
Selection and installation
Choose the plain EDS-205A for air-conditioned panels and the -T version for outdoor kiosks, pump stations and unconditioned shelters. Feed both power inputs from separate 24 VDC supplies if you want redundancy; Moxa lists DIN-rail supplies such as HDR-60-24, MDR-40-24 and NDR-120-24 as accessories. For a larger or managed network, look at a managed switch such as the Moxa EDS-G508E. Fibre models are meant for noise immunity or distance: before relying on a fibre link, check that its link budget exceeds the fibre loss plus the dispersion penalty, and fit an attenuator on short single-mode runs as the datasheet advises.
Documents and quotation
Seven Star LLC, an independent supplier in Muscat, can quote the EDS-205A and its fibre and wide-temperature variants against your exact order code. Please confirm the port mix, temperature range and approval you need on the project before ordering. The manufacturer datasheet (version 3.0) is attached, and more network hardware is listed under Industrial Communications.
