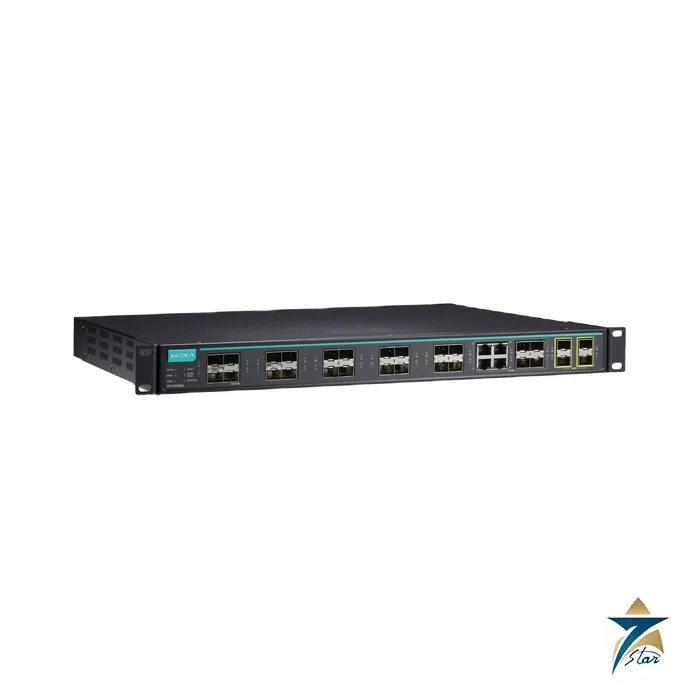

Moxa ICS-G7528A 28-Port Gigabit Rackmount Managed Switch

A fanless 28-port Gigabit backbone for rack rooms and substations

The Moxa ICS-G7528A series is a rack-mount Layer 2 managed switch with 24 Gigabit ports and four 10 Gigabit SFP+ slots, up to 28 optical connections in all. It is fanless, runs from -40 to 75 deg C, and has isolated redundant 100 to 240 VAC power inputs, which suits control rooms, pumping-station backbones and transportation networks where large volumes of data, voice and video are aggregated. Turbo Ring and Turbo Chain recover in under 20 ms at 250 switches (under 50 ms when the ring speed is 1 Gbit/s or higher), and MSTP, MRP and V-ON are available. Security covers ACLs, RADIUS, TACACS+, IEEE 802.1X, sticky MAC and MAB authentication.

Technical specifications

Models and port mixes

The suffix HV-HV-T means two high-voltage AC inputs and the wide-temperature range. Choose the copper-heavy model where many devices connect directly and the 20GSFP model for fibre-only backbones.

Planning notes

Count the fibre links first: every optical port needs an SFP module, and 10G ports need SFP+ modules of the correct reach. The package includes rack ears, port caps, a USB console cable and EU and US power cords. For small cabinets with 12/24/48 VDC supply, a DIN-rail unit such as the Moxa EDS-G508E is more suitable. Seven Star LLC, an independent supplier in Muscat, quotes the specific code you select. Please verify the model, SFP list and approval requirements before ordering. The Moxa datasheet (version 1.9) is attached, and other network products are listed under Industrial Communications. The unit is 1U high, 440 mm wide and about 387 mm deep, and weighs 6.47 kg, so check rack depth and cable bend space at the rear. Both AC inputs are isolated, which lets you feed them from different UPS or distribution circuits. Plan ring roles, VLANs and uplink speeds before installation; the 10G slots are intended for aggregation links between backbone switches, while Gigabit ports serve access switches and servers. Keep a configuration backup on a USB stick in the front USB port. The ICS-G7528A is a Layer 2 platform: routing is not listed, so if the design needs inter-VLAN routing, plan a separate Layer 3 device. Moxa gives a five-year warranty and MTBF figures between 536,851 and 573,832 hours depending on the model. EMC and immunity test levels are printed in the datasheet (for example 6 kV contact ESD and 2 kV power surge), which you can compare with the site specification.
