Moxa TCC-120 RS-422/485 Converter and Repeater
Description
Boosting RS-422/485 signals over long cable runs

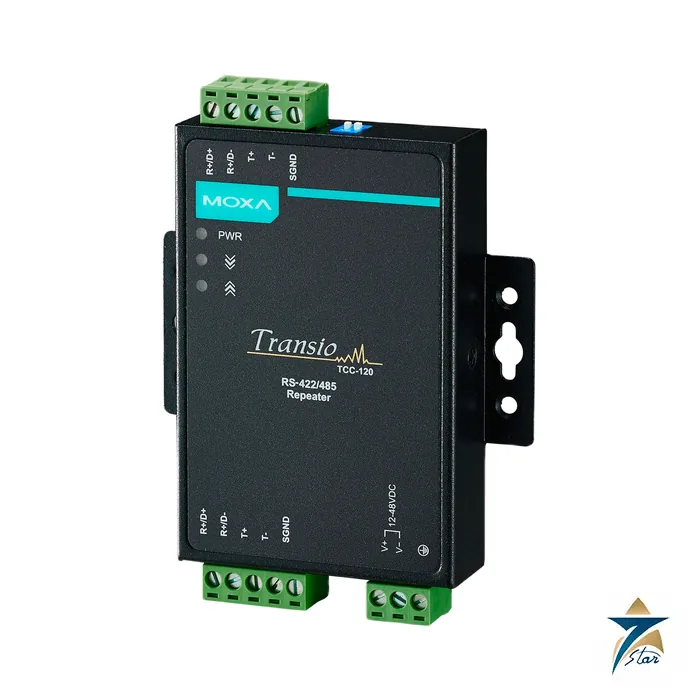

The Moxa TCC-120 is an industrial RS-422/485 converter and repeater. It boosts a weak RS-422 or RS-485 signal so the line can run farther, or converts an RS-422 link to RS-485. Where a multidrop bus has too many nodes or too much cable for the transceivers on the field devices, a repeater regenerates the signal at the midpoint. The metal housing uses terminal blocks for both signal and power wiring, a DIP switch sets the built-in 120 ohm terminator and the pull-up and pull-down resistors, and the unit can be wall-mounted or fitted to a DIN rail with the supplied kit. The TCC-120I adds 2 kV isolation for protection against ground loops and surges on long runs between buildings.
Technical specifications
| Parameter | Specification |
|---|---|
| Serial interface | 2 ports, terminal block; RS-422 and RS-485 (2-wire and 4-wire) |
| Signals | RS-422/RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND |
| Baud rate | 50 bps to 921.6 kbps, non-standard rates supported |
| RS-485 control | ADDC automatic data direction control |
| Terminator / pull resistors | 120 ohm or 120 kilo-ohm selectable; pull high/low 1 kilo-ohm or 150 kilo-ohms |
| Isolation | TCC-120I: 2 kV |
| Power | 12 to 48 VDC via terminal block, 1 input; TCC-120 65 mA at 12 VDC; TCC-120I 180 mA at 12 VDC; overload protection |
| Housing | Metal, IP30, 67 x 100.4 x 22 mm, 148 g |
| Installation | Wall mount; DIN rail with the supplied kit |
| Operating temperature | -20 to 60 deg C; storage -40 to 85 deg C; 5 to 95 percent humidity, non-condensing |
| Standards | EN 55032/35, FCC Part 15B Class A, UL 60950-1, IEC 61000-4 series, IEC 60068-2-1/-2/-3/-6 |
| MTBF / manufacturer warranty | 1,949,025 hrs (Telcordia) / 5 years |
| In the box | Converter/repeater, terminal block-to-power jack converter, DIN-rail kit, rubber stand, quick installation guide, warranty card |
Choosing between TCC-120 and TCC-120I
| Model | Isolation | Operating temperature | Input current |
|---|---|---|---|
| TCC-120 | No | -20 to 60 deg C | 65 mA at 12 VDC |
| TCC-120I | Yes, 2 kV | -20 to 60 deg C | 180 mA at 12 VDC |
Pick the isolated version when the two cable segments sit at different earth potentials, run between buildings or pass through electrically noisy areas such as VFD rooms. For short, same-panel links the non-isolated model is enough.
Wiring notes and ordering
RS-485 is a bus, so terminate only the two physical ends of the line with 120 ohm and leave middle nodes unterminated. Remember that a repeater adds a segment; check the node and distance limits of the protocol you run, for example Modbus RTU. The datasheet gives no maximum cable distance for this product, so rely on the transmission limits stated by your equipment manufacturer. For RS-232 sources use a converter such as the TCC-80 first, and for serial over IP see the Moxa NPort range. Seven Star LLC, an independent supplier in Muscat, quotes the exact model; state isolation, supply voltage and mounting before ordering. The Moxa datasheet (version 1.2) is attached, and related products are listed under Industrial Communications. Wire two-wire RS-485 with Data+ and Data-, and four-wire RS-422 or RS-485 with Tx+, Tx-, Rx+ and Rx-, always with a signal ground reference. The datasheet lists only an operating range of -20 to 60 deg C and no wide-temperature model, so install the unit inside an enclosure where temperature is controlled. The terminal block can also be fed through the supplied power-jack converter.
