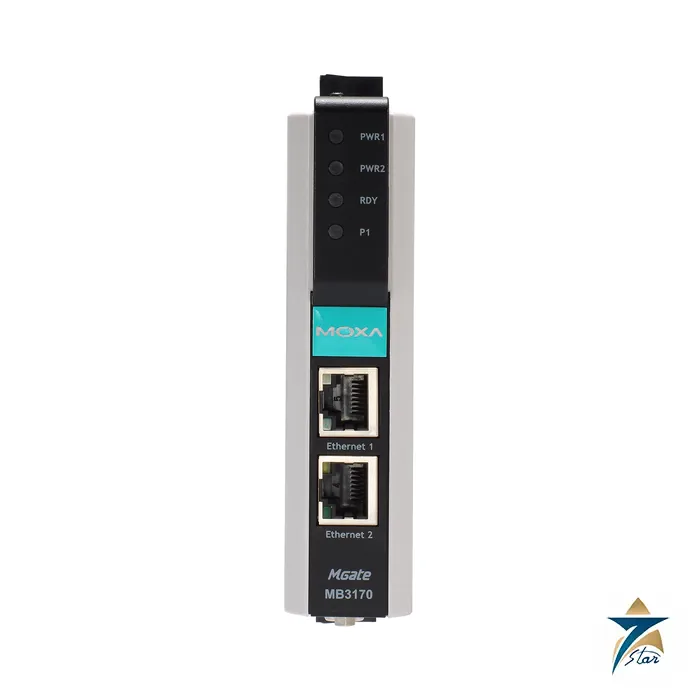

Moxa MGate MB3170 1-Port Advanced Modbus Gateway
Description
An advanced Modbus gateway for SCADA with many masters
The Moxa MGate MB3170 is a one-port Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII. Up to 32 TCP masters can access the serial side, each with 32 buffered requests, or the unit can act as a master to as many as 32 Modbus TCP servers. It reaches up to 31 serial slaves per port (62 on the two-port MB3270). Routing can be by slave ID, TCP port or IP address, and Auto Device Routing builds the slave ID table with one click. Priority control forces urgent commands through ahead of normal polling, and embedded traffic monitoring helps troubleshooting. A serial redirector lets a serial master keep direct access to slaves while TCP masters share the same bus.
Technical specifications
| Parameter | Specification |
|---|---|
| Ethernet | 2 x 10/100BaseT(X) RJ45 (one IP address, second port for Ethernet cascading), auto MDI/MDI-X, 1.5 kV magnetic isolation; fibre models 1 x 100BaseFX |
| Serial (MGate MB3170) | 1 port, RS-232/422/485 software selectable; DB9 male for RS-232, terminal block for RS-422/485 |
| Serial parameters | 50 bps to 921.6 kbps; 7 or 8 data bits; 1 or 2 stop bits; parity none, even, odd, space, mark; flow control DTR/DSR, RTS Toggle, RTS/CTS |
| RS-485 extras | ADDC, 120 ohm terminator, 1 kilo-ohm or 150 kilo-ohm pull resistors |
| Protocols | Modbus TCP client and server; Modbus RTU/ASCII master and slave; 32 client and 32 server connections |
| Security / management | HTTPS (TLS 1.2), SNMPv3, local authentication, AES-128/256, SHA-256; web console, DSU, MGate Manager, MCC Tool, Telnet, NTP client |
| Power | 12 to 48 VDC redundant dual inputs, 7-pin terminal block; 435 mA at 12 VDC (MB3170); 1 relay output, 1 A at 30 VDC resistive |
| Housing | Plastic, IP30; 29 x 89.2 x 124.5 mm with ears; 360 g (MB3170) |
| Operating temperature | Standard models 0 to 60 deg C; -T models -40 to 75 deg C |
| Approvals as printed | ATEX, Class I Division 2, IECEx; DNV; UL 508, UL 60950-1, IEC 60950-1, EN 62368-1 |
| MTBF / manufacturer warranty | MB3170: 1,662,526 hrs (Telcordia SR332) / 5 years |
Ordering codes
| Model | Ethernet | Serial ports | Serial isolation |
|---|---|---|---|
| MGate MB3170 / -T | 2 x RJ45 | 1 | No |
| MGate MB3170I / -I-T | 2 x RJ45 | 1 | 2 kV |
| MGate MB3270 / -T | 2 x RJ45 | 2 | No |
| MGate MB3270I / -T | 2 x RJ45 | 2 | 2 kV |
| MGate MB3170-M-SC / -M-ST | 1 x multi-mode fibre | 1 | No |
| MGate MB3170-S-SC | 1 x single-mode fibre | 1 | No |
| MGate MB3170I-M-SC / -S-SC | Fibre | 1 | 2 kV |
Add -T for the -40 to 75 deg C versions. Fibre models reach 4 km (multi-mode) or 40 km (single-mode) typical.
Selection and quotation
Use the MB3170 or MB3270 when several SCADA or historian masters poll the same serial devices, or when urgent commands need priority. If you need a simpler and cheaper standard gateway, compare the MB3180. Gateways do not change Modbus register maps, so confirm slave addresses and timeouts with the device manuals. Seven Star LLC, an independent supplier in Muscat, quotes the exact order code; state port count, isolation, fibre type and temperature range before ordering. The Moxa datasheet (version 2.1) is attached, and related products are in Industrial Communications. The second Ethernet port provides built-in cascading, so a neighbouring gateway or device can be daisy-chained without an extra switch port. Emergency request tunnels reserve bandwidth for urgent requests, and embedded Modbus traffic monitoring supports troubleshooting. Fibre models are immune to electromagnetic noise and suit sites with high ground-loop voltages, and Moxa notes that fibre has no sparking risk in hazardous environments.
