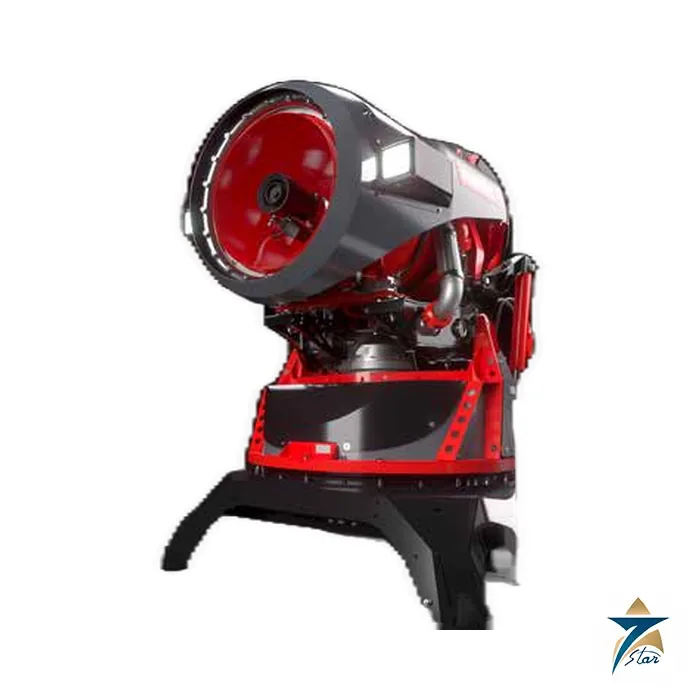

Minimax MXOne Firefighting Turbine Water Mist Monitor

Water mist powered by turbine force from a safe distance

The Minimax MXOne firefighting turbine protects large areas with an increased risk of fire outbreak and spread, wherever conventional systems reach their limits. Long throw distances, adjustable spray patterns and the use of different extinguishing media allow precise firefighting from a safe distance.

Minimax names a 4-in-1 effect: extinguishing, cooling, smoke extraction and binding of pollutants. Integrated controls execute predefined extinguishing scenarios automatically, or the unit can be aligned manually by radio remote control. The brochure states that performance, effectiveness and durability were tested and certified by FM Global and other independent testing institutes.

Technical specifications

Applications, variants and system use

The brochure lists airports and hangars, waste incineration and recycling plants, substations and transformers, tank and storage logistics, and the paper and wood industry as versatile fields of use. The robust turbine is designed for harsh conditions, including high ambient temperatures in industrial environments.

Two variants are shown: a mobile version on a trailer for quick positioning at the scene of a fire, with pre-installed power and water connections, and a version on a standard flat rack with its own power and water supply, optionally with foam proportioning, where water replenishment from the local supply is possible through prepared connections.

MXOne can also be part of a stationary fire protection system together with water supply, valve stations, piping, industrial fire detectors and a fire extinguishing and control panel. Minimax states that, as a VdS-approved installation company, it takes responsibility for the process from design to commissioning and maintenance. For the water side of such a system, compare the Minimax FSX deluge valve set.

An air flow of 32,000 m3/h at about 120 km/h at the outlet and a 12.5 kW fan at 2,910 rpm give the turbine its reach, while the nozzle ring adds up to 800 l/min of water against a total maximum of 6,500 l/min. Inclination from -19 to +43 degrees with 360 degree rotation allows predefined scenarios to sweep a wide area, and two 3,000 lumen LED spotlights are fitted.

What to confirm before ordering

The unit draws 12.5 kW and needs a DN125 water connection at 4 to 16 bar, so site power (400 V 50 Hz or 480 V 60 Hz), the water supply and the foam option should be confirmed first. Please also tell us the protected hazard, the required throw distance, and whether trailer or flat rack is wanted.

Documents and quotation

The Minimax brochure PB61We with the full technical specification is attached. Seven Star LLC is an independent supplier in Muscat and prepares the quotation request for Minimax from your site data. See also Fire Fighting.
