Fuji Electric FKC Differential Pressure Transmitter
Description
A smart differential pressure transmitter for flow, level and DP duties

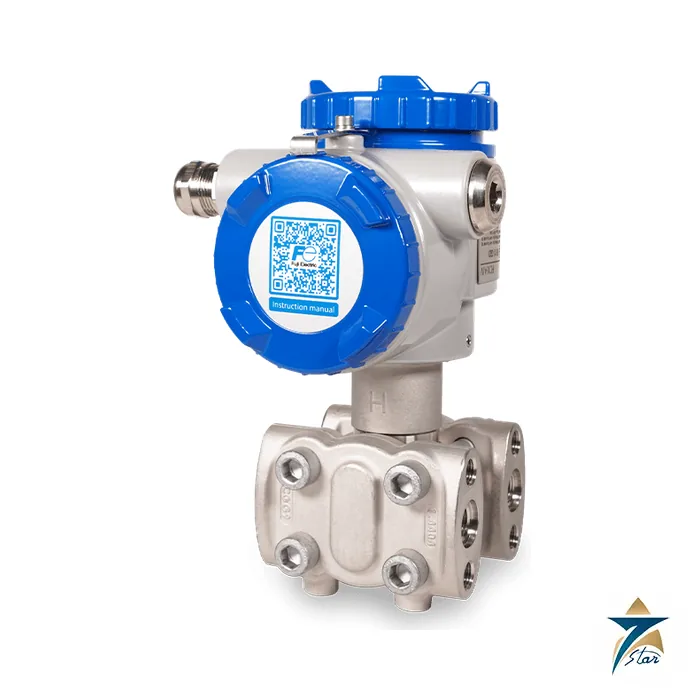

The Fuji Electric FKC is the differential pressure model of the FCX-A IV family of smart pressure transmitters. It measures differential pressure, liquid level or flow and outputs a proportional 4-20 mA signal with HART communication, using a micro-capacitive silicon sensor with digital signal processing. Fuji states standard accuracy of 0.065 percent of the set range, with 0.04 percent as an option, and compliance with SIL 2 (HFT 0) and SIL 3 (HFT 1) to IEC 61508 and IEC 61511. Its uses include flow measurement across orifice plates, level, density, filtration and interface measurement.
Technical specifications
| Parameter | Specification |
|---|---|
| Type | FKC smart differential pressure transmitter, 4-20 mA with HART |
| Service | Liquid, gas or vapour |
| Accuracy | +/-0.065 percent of set range (standard); +/-0.04 percent optional |
| Update rate | 40 ms |
| Power supply | 10.5 to 45 V DC at transmitter terminals; 10.5 to 32 V DC with optional arrester |
| Output | 4-20 mA, linear or square root, HART 7 |
| Linearisation | Up to 14 pair-points |
| Burnout current | Adjustable 3.4-3.8 mA and 20.8-22.5 mA (NAMUR NE43 compatible) |
| Wetted materials | 316L process cover; diaphragm 316L, Hastelloy-C, Monel or tantalum depending on code; silicone fill (fluorinated oil optional) |
| Process connection | 1/4-18 NPT per DIN 19213; 1/2-14 NPT with oval flanges optional |
| Conduit connection | 1/2-14 NPT, Pg13.5 or M20 x 1.5 |
| Housing and protection | Low-copper die-cast aluminium (316 SS optional); IP66/IP67, Type 4X |
| Weight | Approx. 3.5 kg without options (+0.2 kg indicator, +0.5 kg bracket, +2.0 kg SS housing) |
| Hazardous area | ATEX and IECEx Ex ia IIC (T4 to 60 C, T5 to 50 C); Ex db IIC T6…T4 flameproof; cCSAus IS and XP listed in the data sheet |
| Safety | SIL 2 / SIL 3 per IEC 61508 and IEC 61511 |
| Temperature effect | Per 28 C change, see data sheet by range code |
Range codes
| Model | Static pressure (MPa) | Min. span (kPa) | Max. span (kPa) | Range limit (kPa) |
|---|---|---|---|---|
| FKC 11 | -0.1 to +3.2 | 0.1 | 1 | +/-1 |
| FKC 22 | -0.1 to +10 | 0.1 | 6 | +/-6 |
| FKC 33 | -0.1 to +16 | 0.32 | 32 | +/-32 |
| FKC 35 | -0.1 to +16 | 1.3 | 130 | +/-130 |
| FKC 36 | -0.1 to +16 | 5 | 500 | +/-500 |
| FKC 38 | -0.1 to +16 | 30 | 3000 | +/-3000 |
| FKC 43 | -0.1 to +42 | 0.32 | 32 | +/-32 |
| FKC 45 | -0.1 to +42 | 1.3 | 130 | +/-130 |
| FKC 46 | -0.1 to +42 | 5 | 500 | +/-500 |
| FKC 48 | -0.1 to +30 | 30 | 3000 | +/-3000 |
| FKC 49 | -0.1 to +30 | 500 | 20000 | +20000 / -10000 |
A span above one tenth of the upper range limit is recommended for best accuracy, and for the FKC 49 the maximum overload on the low-pressure side must not exceed 100 bar.
Selection and ordering
Pick the range code from the maximum differential pressure, then the static-pressure rating, wetted material, fill fluid, electrical connection, indicator and approval. Use square-root output for flow measured across an orifice. State the hazardous-area approval and mounting hardware for your site, and a measuring scale. Related instruments are listed under pressure instrumentation, for example the Setra 267 low differential pressure transducer.
Documents and quotation
The attached data sheet EDSX6-158b (17 May 2023) lists the specifications, hazardous-area table and model code. Confirm the full model code, range and approvals before ordering.
