Brand: Danfoss
Danfoss 137H3223 VACON 100 Industrial Drive 460 A IP00
Description

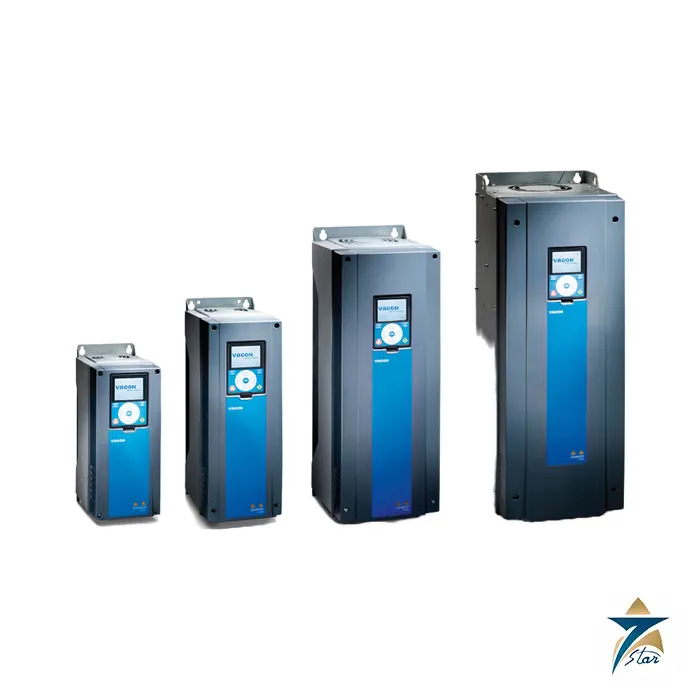

VACON 100 INDUSTRIAL 460 A in IP00: a 250 kW drive module for panel builders
The 137H3223 is the largest drive in this lane: a VACON 100 INDUSTRIAL drive module of 460 A, supplied as IP00 for building into a cabinet. The motor power is 200 kW at high overload and 250 kW at low overload, with a continuous current of 385 A and 460 A, respectively.
Frame 10 measures 507 x 980 x 525 mm and weighs 221 kg. This is a module for panel builders and system integrators who build a motor control centre, not a product for wall mounting.
Technical specifications
| Parameter | Specification |
|---|---|
| Danfoss code number | 137H3223 |
| Type code | VACON0100-3L-0460-5+IP00+EMC4+LS60 |
| Series | VACON 100 INDUSTRIAL |
| Rated current | 460 Amp |
| Mains voltage | 380-500 Vac |
| Installation | DM Drive Module |
| Enclosure | IP00 |
| Frame | Frame 10 |
| Dimensions (W x H x D) | 507 x 980 x 525 mm |
| Control panel | Graphical Keypad MK01 |
| EMC emission category | EMC C4 System Component |
| Brake chopper | No dynamic braking device |
| Fieldbus (internal) | Std protocol,Modbus,N2,BacNet |
| B-slot board | F3,3 Relay board |
| E-slot board | No board |
| Motor power, high overload | 200 kW |
| Motor power, low overload | 250 kW |
| Continuous current, high / low overload | 385 A / 460 A |
| Default motor frequency | 60 Hz def motor freq settings |
| Language pack | UK, DE, FI, SE, IT, FR lang |
| Net weight | 221 kg |
| EAN | = 5715253398587 |
Cabinet design for a 221 kg module
The unit has no enclosure of its own (IP00), so the cabinet must provide touch protection, cooling air, cable entry and mounting. The code includes +LS60, a 60 Hz default motor frequency, and +EMC4, which means the drive is an EMC C4 system component: the final machine builder has to show EMC compliance of the complete installation.
The module weighs over 220 kg, so use a hoist and provide a plinth that supports the load. Verify that the busbar and cable terminals match the current. Keep the manufacturer’s cooling clearances and plan for the air flow in a hot environment.
Configuration of this code
The store lists no brake chopper, no common-mode filter and no dU/dt filter, a three-relay board in slot B and empty slots C, D and E. The documentation is paper manuals, the shipping pack is cardboard and the language pack covers UK, DE, FI, SE, IT and FR. Approvals as printed include UL and Ukrainian approval.
Options such as a sine filter, a brake chopper or a fieldbus card are different codes. For pump and fan duty the VACON 100 FLOW variant may be a better match.
Large modules like this are normally ordered for a project with a delivery plan. Send us the project name, the expected delivery window and the cabinet maker if you want the quotation to cover the logistics questions. Heavy modules need a delivery point with lifting equipment, and the transport packing must stay on until the unit is at its installation position.
Before you order 137H3223, compare it with the nameplate of the unit you intend to replace. Photographs of the nameplate help us to confirm the exact code quickly, and we will tell you plainly if a different version of the same family looks like a better fit for your duty.
Ordering notes
Please confirm supply voltage, motor current, cabinet design and options before ordering. Seven Star LLC is an independent supplier in Muscat and can quote 137H3223. The attached file is the Danfoss VACON 100 operating guide AQ298036140958; related drives are under AC drives.
Datasheets & Documents
- Operating Guide Danfoss VACON 100 Wall-mounted Drives Operating Guide AQ298036140958 (manufacturer, unaltered) Download
Reviews (0)
About brand
Danfoss is the Danish engineering group that makes refrigeration and air-conditioning controls, heating components, variable speed drives and mobile hydraulics. Mads Clausen founded it on 1 September 1933 at his parents' farm in Nordborg on the island of Als, after making his first refrigeration expansion valve in 1932. Nordborg is still the group's headquarters, and Danfoss remains controlled by the Clausen family through the Bitten & Mads Clausen Foundation.
Danfoss company profile
| Founded | 1 September 1933, Nordborg, Denmark, by Mads Clausen (1905–1966) |
|---|---|
| First product | Thermostatic expansion valve for refrigeration |
| Headquarters | Nordborg, Denmark |
| Ownership | Private; majority controlled by the Bitten & Mads Clausen Foundation and the Clausen family |
| Size | About 42,000 employees (2023) |
| Business segments | Danfoss Climate Solutions (refrigeration, air conditioning and heating), Danfoss Drives (VLT and VACON frequency converters, soft starters), Danfoss Power Solutions (mobile and industrial hydraulics) |
| Brands in the group | VLT, VACON, Eaton Hydraulics (bought 2021), Ikusi radio remote controls |
Milestones
- 1932–1933: First expansion valve; the company is founded in Nordborg.
- 1939: 26 employees. By the 10th anniversary in 1943 the company has 179.
- 1950s: Rapid growth turns Nordborg into a Danfoss town with housing and schools for its workforce.
- 1968: Danfoss launches its VLT frequency converter, one of the first mass-produced AC drives.
- 2014: Acquisition of the Finnish drives maker Vacon, now the VACON brand.
- 2021: Acquisition of Eaton's hydraulics business.
Choosing Danfoss products
For solenoid valves, check the operating principle. A direct-operated valve such as EV210B opens even at 0 bar differential pressure. A servo-operated valve such as EV220B needs a minimum differential (typically about 0.3 bar) to open, while an assisted-lift valve such as EV250B works from 0 bar. Coils are ordered separately, so the voltage on the coil (for example 230 V AC or 24 V DC) must match the control circuit. For drives, the VLT family is split by application: FC 51 Micro Drive for small machines, FC 102 HVAC Drive for fans and pumps in buildings, FC 202 AQUA Drive for water, and FC 302 AutomationDrive for demanding industrial duty.
Where Danfoss products are used
In Oman and the GCC, Danfoss drives run pumps, fans and compressors in district cooling plants, water and wastewater stations, desalination and building HVAC. Danfoss pressure switches, transmitters and solenoid valves are built into chillers, refrigeration plants, boilers and hydraulic systems, and AB-QM valves balance chilled-water circuits in large buildings.
Danfoss products we list
| Family | Examples |
|---|---|
| Variable speed drives and soft starters | VLT Micro Drive FC 51, VLT HVAC Drive FC 102, VLT AQUA Drive FC 202, VLT AutomationDrive FC 302, FC 280, iC2-Micro, VACON NXP, MCD 600 soft starter |
| Solenoid valves and coils | EV220B, EV210B, EV250B, EV225B steam, EVR 25, AM230C coil |
| Pressure switches and thermostats | KP 37, KP 44, RT 200, CS, MBC 5000, KPS 77, RT 101 |
| Pressure transmitters | MBS 3000, MBS 5100, MBS 3250, MBS 4251 Ex, AKS 33, DST P92S SIL 2 |
| HVAC and refrigeration valves | AB-QM PICV, NovoCon S, AB-PM, AVTA, ICV, TE 5 element |
Ordering Danfoss products: what we need
Send the Danfoss code number from the label (for example 032U7115 or 131B0149) or the full drive type code (FC-302P3K0T5...). For drives, add the motor power, supply voltage and any fieldbus option. For valves, add the size, connection, medium and coil voltage. For pressure switches and transmitters, add the range, output and pressure connection.
Facts checked against Danfoss's company history pages and published company data, October 2026.
Browse Danfoss products by category: AC Drives, Pressure Instrumentation, Control Valves, Solenoid Valve.
Related products
Frequently Asked Questions
What is Danfoss 137H3223?
A VACON 100 INDUSTRIAL 460 A drive module: 380-500 V, IP00, Frame 10, 200 kW high overload and 250 kW low overload.
Is it ready for wall mounting?
No. IP00 means it must be built into a cabinet.
How heavy is it?
221 kg net per the store entry.
What EMC category does it have?
EMC C4, system component.
Which document is included?
The Danfoss VACON 100 wall-mounted drives operating guide AQ298036140958.
