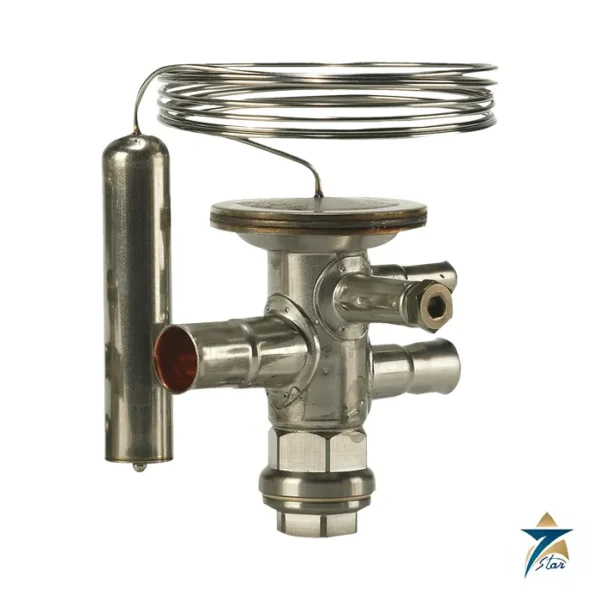

Danfoss 068U4202 TCBE Expansion Valve R22/R407C, 21 kW

Name: Danfoss 068U4202 TCBE Expansion Valve R22/R407C | Seven Star
Brand: Danfoss
SKU: 068U4202

Description

TCBE with orifice 2: a 21 kW R22/R407C thermostatic expansion valve

Danfoss 068U4202 is a TCBE thermostatic expansion valve with a fixed orifice size 2 and a rated capacity of 21 kW (6 TR) at the Danfoss rating point of 4 K superheat, 38 C condensing, 4.4 C evaporating and 37 C liquid. It is charged for R22 and R407C, has a 1/2 in ODF inlet and a 5/8 in ODF outlet, and keeps the externally equalized 1/4 in ODF connection.

This TCBE has a shorter 0.9 m capillary than the 1.5 m version found on the larger TU/TC valves, which suits compact condensing units and air-handling coils where the bulb is near the valve. The product page lists a bi-flow design, a stainless-steel body and a maximum working pressure of 45.5 bar (660 psig).

Technical specifications

Parameter	Specification
Danfoss code number	068U4202
Type	TCBE
Approvals as listed	EAC; UL; UA
Body material	Stainless steel
Capillary tube length	35 in / 900 mm
Equalization connection type	Solder, ODF
Equalization size	1/4 in
Inlet connection type	Solder, ODF
Inlet size	1/2 in
Maximum working pressure	45.5 bar
Orifice capacities	21 kW
Orifice size	2
Outlet connection type	Solder, ODF
Outlet size	5/8 in
Pressure equalization	Externally equalized
Rated capacity conditions	OS=4K; tcond=38 C; tevap=4.4 C; tliq=37 C
Refrigerants	R22/R407C
Static Superheat (SS)	4 C
Superheat setting	Adjustable
Temperature range	-40 C to 10 C
UL approved refrigerants	R22; R407C
Net weight	0.191 kg
EAN	5702428051514

When a TCBE is the right body

A fixed-orifice valve of this kind is chosen when the unit builder knows the duty and wants a sealed part. The page marks it as not serviceable, so the orifice cannot be replaced in the field; the capacity is changed by choosing another code. Danfoss lists an identical product code (068U4514) on the page, which a cross-check against your bill of materials can use.

Static superheat is set at 4 C and can be adjusted, but you should confirm the superheat after commissioning by measuring suction pressure and pipe temperature at the bulb. Evaporating range is -40 to 10 C, so it covers chilled-water and comfort applications as well as medium-temperature rooms.

Points to confirm before ordering

Match the refrigerant charge to your system. This code is R22/R407C only. Check the capillary length against the distance between evaporator outlet and valve, and the connection sizes against the line sizes. Always braze with the body cooled.

The installation guide for TCBE / TCCE / TCAE explains bulb placement and the equalizer connection; read it with the data sheet. The valve has no field adjustment beyond the superheat setting stem.

Keep a note of the charge, orifice size and capillary length in the maintenance file: after a failure it is the quickest way to order the correct replacement, because the valve data is stamped on the body only in short form.

Documents and quotation

For the full drawings, ordering tables and wiring or piping details, open the attached Danfoss Thermostatic expansion valve, TU / TC AI561224665278en-000102 (manufacturer, unaltered) (manufacturer PDF, unaltered). More items of this kind are listed under control valves. Seven Star LLC supplies from Muscat as an independent supplier: ask for a quotation on 068U4202.
