Brand: Danfoss

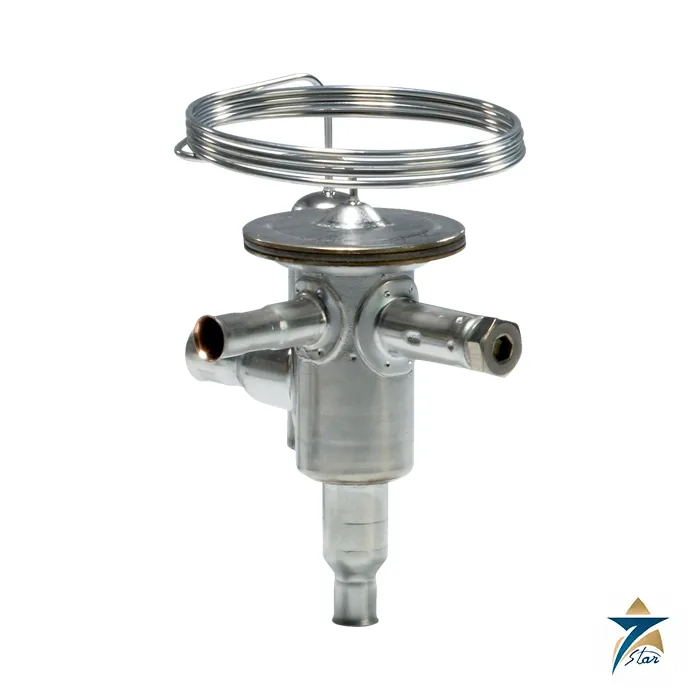

Danfoss 068U1718 TUBE Thermostatic Expansion Valve R404A/R507A
Description
TUBE for R404A/R507A: a low-temperature thermostatic expansion valve with orifice 8
Danfoss 068U1718 is a TUBE thermostatic expansion valve charged for R404A and R507A. It is the stainless-steel angleway member of the TU range, with a 3/8 in ODF solder inlet, a 1/2 in ODF outlet and a 1/4 in ODF external equalization connection. The 1.5 m capillary leads to a bulb that is strapped to the suction line; the bulb strap is supplied with the valve.
Orifice size 8 gives a rated capacity of 5.3 kW (1.5 TR) at the Danfoss rating point of 4 K superheat, 38 C condensing, 4.4 C evaporating and 37 C liquid temperature. The valve is set at the factory to a static superheat of 4 C, and the superheat can be adjusted. The charge has a MOP point of -20 C and the working temperature range is -60 C to -25 C, which places it on freezer evaporators and low-temperature display cases.
Technical specifications
| Parameter | Specification |
|---|---|
| Danfoss code number | 068U1718 |
| Type | TUBE |
| Approvals as listed | EAC; UL; UA |
| Body material | Stainless steel |
| Capillary tube length | 59 in / 1500 mm |
| Equalization connection type | Solder, ODF |
| Equalization size | 1/4 in |
| Inlet connection type | Solder, ODF |
| Inlet size | 3/8 in |
| Maximum working pressure | 34 bar |
| MOP Point | -20 C |
| Orifice capacities | 5.3 kW |
| Orifice size | 8 |
| Outlet connection type | Solder, ODF |
| Outlet size | 1/2 in |
| Pressure equalization | Externally equalized |
| Rated capacity conditions | OS=4K; tcond=38 C; tevap=4.4 C; tliq=37 C |
| Refrigerants | R404A/R507A |
| Static Superheat (SS) | 4 C |
| Superheat setting | Adjustable |
| Temperature range | -60 C to -25 C |
| UL approved refrigerants | R404A; R507A |
| Net weight | 0.154 kg |
| EAN | 5702428044882 |
Where this TUBE version fits
Because the equalization line is external, the valve compensates for pressure drop across an evaporator coil and its liquid splitter, so it suits multi-circuit coils. Flow is single-flow, which means the valve is for one-way systems; heat-pump reversing circuits need a bi-flow version. The maximum working pressure is 34 bar (500 psig), and UL lists the valve for R404A and R507A.
The MOP charge limits the evaporating pressure during pull-down after defrost, protecting the compressor from overload. Compare that MOP point with your design defrost recovery before you order, since a different MOP letter is a different code number.
Sizing and fitting checks
Size the valve from the evaporator load and the real pressure drop across the valve, not from the nominal 5.3 kW alone. Capacity falls when the liquid is warm or the pressure differential is lower than the rating point, and rises when the opposite is true. The orifice is part of the valve assembly; this TUBE is marked as not serviceable, so a different capacity means a different code.
Clamp the bulb on a straight horizontal suction line close to the evaporator outlet, lag it, and avoid positions after a trap. Braze with the valve body wrapped in wet cloth. Confirm refrigerant, MOP point, connection sizes and capillary length against the data sheet before ordering.
Documents and quotation
Attached for download: Danfoss Thermostatic expansion valve, TU / TC AI561224665278en-000102 (manufacturer, unaltered), the manufacturer’s unaltered PDF. Browse comparable products in control valves. To order, send us 068U1718 and the required quantity; Seven Star LLC is an independent supplier based in Muscat.
Datasheets & Documents
- Datasheet Danfoss Thermostatic expansion valve, TU / TC AI561224665278en-000102 (manufacturer, unaltered) Download
Reviews (0)
About brand
Danfoss is the Danish engineering group that makes refrigeration and air-conditioning controls, heating components, variable speed drives and mobile hydraulics. Mads Clausen founded it on 1 September 1933 at his parents' farm in Nordborg on the island of Als, after making his first refrigeration expansion valve in 1932. Nordborg is still the group's headquarters, and Danfoss remains controlled by the Clausen family through the Bitten & Mads Clausen Foundation.
Danfoss company profile
| Founded | 1 September 1933, Nordborg, Denmark, by Mads Clausen (1905–1966) |
|---|---|
| First product | Thermostatic expansion valve for refrigeration |
| Headquarters | Nordborg, Denmark |
| Ownership | Private; majority controlled by the Bitten & Mads Clausen Foundation and the Clausen family |
| Size | About 42,000 employees (2023) |
| Business segments | Danfoss Climate Solutions (refrigeration, air conditioning and heating), Danfoss Drives (VLT and VACON frequency converters, soft starters), Danfoss Power Solutions (mobile and industrial hydraulics) |
| Brands in the group | VLT, VACON, Eaton Hydraulics (bought 2021), Ikusi radio remote controls |
Milestones
- 1932–1933: First expansion valve; the company is founded in Nordborg.
- 1939: 26 employees. By the 10th anniversary in 1943 the company has 179.
- 1950s: Rapid growth turns Nordborg into a Danfoss town with housing and schools for its workforce.
- 1968: Danfoss launches its VLT frequency converter, one of the first mass-produced AC drives.
- 2014: Acquisition of the Finnish drives maker Vacon, now the VACON brand.
- 2021: Acquisition of Eaton's hydraulics business.
Choosing Danfoss products
For solenoid valves, check the operating principle. A direct-operated valve such as EV210B opens even at 0 bar differential pressure. A servo-operated valve such as EV220B needs a minimum differential (typically about 0.3 bar) to open, while an assisted-lift valve such as EV250B works from 0 bar. Coils are ordered separately, so the voltage on the coil (for example 230 V AC or 24 V DC) must match the control circuit. For drives, the VLT family is split by application: FC 51 Micro Drive for small machines, FC 102 HVAC Drive for fans and pumps in buildings, FC 202 AQUA Drive for water, and FC 302 AutomationDrive for demanding industrial duty.
Where Danfoss products are used
In Oman and the GCC, Danfoss drives run pumps, fans and compressors in district cooling plants, water and wastewater stations, desalination and building HVAC. Danfoss pressure switches, transmitters and solenoid valves are built into chillers, refrigeration plants, boilers and hydraulic systems, and AB-QM valves balance chilled-water circuits in large buildings.
Danfoss products we list
| Family | Examples |
|---|---|
| Variable speed drives and soft starters | VLT Micro Drive FC 51, VLT HVAC Drive FC 102, VLT AQUA Drive FC 202, VLT AutomationDrive FC 302, FC 280, iC2-Micro, VACON NXP, MCD 600 soft starter |
| Solenoid valves and coils | EV220B, EV210B, EV250B, EV225B steam, EVR 25, AM230C coil |
| Pressure switches and thermostats | KP 37, KP 44, RT 200, CS, MBC 5000, KPS 77, RT 101 |
| Pressure transmitters | MBS 3000, MBS 5100, MBS 3250, MBS 4251 Ex, AKS 33, DST P92S SIL 2 |
| HVAC and refrigeration valves | AB-QM PICV, NovoCon S, AB-PM, AVTA, ICV, TE 5 element |
Ordering Danfoss products: what we need
Send the Danfoss code number from the label (for example 032U7115 or 131B0149) or the full drive type code (FC-302P3K0T5...). For drives, add the motor power, supply voltage and any fieldbus option. For valves, add the size, connection, medium and coil voltage. For pressure switches and transmitters, add the range, output and pressure connection.
Facts checked against Danfoss's company history pages and published company data, October 2026.
Browse Danfoss products by category: AC Drives, Pressure Instrumentation, Control Valves, Solenoid Valve.
Related products
Frequently Asked Questions
What is Danfoss 068U1718?
A TUBE thermostatic expansion valve for R404A/R507A with orifice size 8, 3/8 in inlet, 1/2 in outlet, externally equalized and fitted with a 1.5 m capillary.
What temperature range does it cover?
The listed evaporating range is -60 to -25 C, with a MOP point of -20 C and a factory static superheat of 4 C.
Is it equalized externally?
Yes. The 1/4 in ODF equalization connection must be piped to the suction line after the bulb.
Is the valve bi-flow?
No. The listing shows single-flow for this code, so it is for one-way flow only.
Which document is attached?
The Danfoss TU / TC data sheet AI561224665278en-000102 in unaltered form. Confirm refrigerant and MOP before ordering.
