Brand: Danfoss

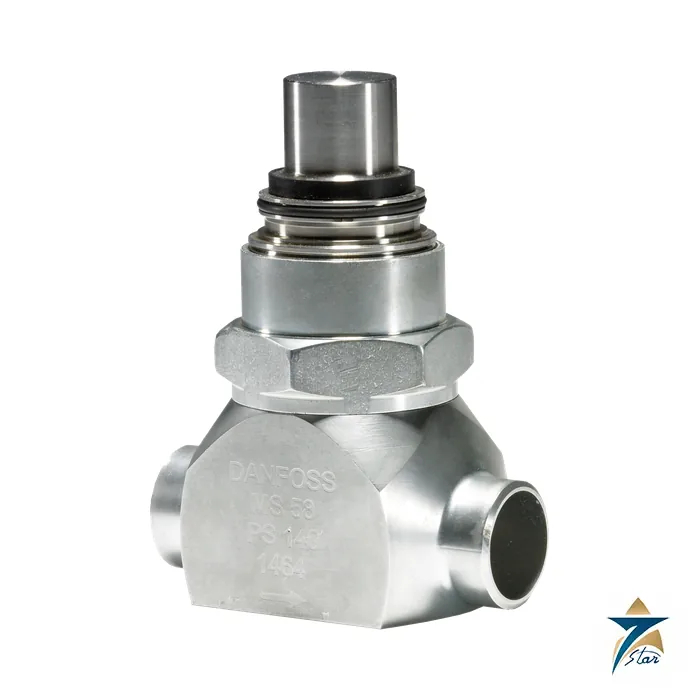

Danfoss 027H1085 ICMTS 20A Motor Valve for Transcritical CO2
Description
ICMTS 20A: a 140 bar motor-operated expansion valve for transcritical CO2
Danfoss 027H1085 is an ICMTS 20A, the high-pressure motor-operated valve of the ICM family for transcritical CO2 (R744) systems. The steel body has 25 mm (1 in) butt-weld connections to EN 10220, a Kv value of 0.6 m3/h and a maximum working pressure of 140 bar (2030 psig); the maximum operating pressure differential is 90 bar (1305 psig).
The temperature range is -60 to 120 C. Approvals shown are CE, CRN, EAC and UA, and the page lists the EKC 326A as a compatible Danfoss controller. The valve is moved by an ICAD 600B-TS actuator and has manual operation through the ICAD setting or the multifunction tool, with a 3 s open/close time.
Technical specifications
| Parameter | Specification |
|---|---|
| Danfoss code number | 027H1085 |
| Type | ICMTS 20A |
| Application area | Transcritical CO2 systems |
| Approvals as listed | CE; CRN; EAC; UA |
| Body material | Steel |
| Compatible Danfoss controllers | EKC 326A |
| Connection standard | EN 10220 |
| Inlet connection size | 1 in / 25 mm |
| Inlet connection type | Butt weld |
| Kv value | 0.6 m3/h |
| Manual operation option | Via ICAD setting; Via Multifunction tool |
| Maximum working pressure | 140 bar |
| Maximum operating pressure differential (MaxOPD) | 90 bar |
| Open/close time | 3 s |
| Outlet connection size | 1 in / 25 mm |
| Outlet connection type | Butt weld |
| Refrigerants | R744 |
| Temperature range | -60 C to 120 C |
| Valve operation | Direct |
| Net weight | 2.1 kg |
| EAN | 5702428237215 |
Transcritical CO2 high-pressure control
In a transcritical booster system the gas cooler outlet must be held at a pressure that is optimal for the heat-rejection conditions, and a high-pressure expansion valve does this. The ICMTS is intended for exactly that duty, whereas the ICM 20-A has a 52 bar limit and cannot be used here.
Because CO2 expands through a very large pressure difference, the valve is selected from Kv and flash-gas conditions; the data sheet for ICMTS with ICAD 600B-TS gives capacity charts. The valve is used with a high-pressure controller that reads gas-cooler outlet pressure and temperature.
Ordering and commissioning notes
Order the ICAD 600B-TS actuator with the valve body; the ICAD 600B for ICM is not the same part. Weld the body with the internals protected and follow the installation guide for ICMTS with ICAD 600B-TS for torque and orientation.
Confirm the pressure class of the rest of the high-side circuit, the controller (EKC 326A or equivalent) and the required Kv before ordering. A different ICMTS size, such as 20B or 20C, covers a higher flow.
Other types and sizes from the same Danfoss family that appear in the Danfoss store listing include ICMTS 20 A33 (027H1084), ICMTS 20B (027H1086), ICMTS 20C (027H1087), ICMTS 20B66 (027H1093). These are listed for orientation only; each has its own datasheet values, so check size, connection and version before ordering.
Documents and quotation
For the full drawings, ordering tables and wiring or piping details, open the attached Danfoss Motor operated valve, type ICMTS with actuator, type ICAD 600B-TS AI217586428573en-001402 (manufacturer, unaltered) (manufacturer PDF, unaltered). More items of this kind are listed under control valves. Seven Star LLC supplies from Muscat as an independent supplier: ask for a quotation on 027H1085.
Datasheets & Documents
- Datasheet Danfoss Motor operated valve, type ICMTS with actuator, type ICAD 600B-TS AI217586428573en-001402 (manufacturer, unaltered) Download
Reviews (0)
About brand
Danfoss is the Danish engineering group that makes refrigeration and air-conditioning controls, heating components, variable speed drives and mobile hydraulics. Mads Clausen founded it on 1 September 1933 at his parents' farm in Nordborg on the island of Als, after making his first refrigeration expansion valve in 1932. Nordborg is still the group's headquarters, and Danfoss remains controlled by the Clausen family through the Bitten & Mads Clausen Foundation.
Danfoss company profile
| Founded | 1 September 1933, Nordborg, Denmark, by Mads Clausen (1905–1966) |
|---|---|
| First product | Thermostatic expansion valve for refrigeration |
| Headquarters | Nordborg, Denmark |
| Ownership | Private; majority controlled by the Bitten & Mads Clausen Foundation and the Clausen family |
| Size | About 42,000 employees (2023) |
| Business segments | Danfoss Climate Solutions (refrigeration, air conditioning and heating), Danfoss Drives (VLT and VACON frequency converters, soft starters), Danfoss Power Solutions (mobile and industrial hydraulics) |
| Brands in the group | VLT, VACON, Eaton Hydraulics (bought 2021), Ikusi radio remote controls |
Milestones
- 1932–1933: First expansion valve; the company is founded in Nordborg.
- 1939: 26 employees. By the 10th anniversary in 1943 the company has 179.
- 1950s: Rapid growth turns Nordborg into a Danfoss town with housing and schools for its workforce.
- 1968: Danfoss launches its VLT frequency converter, one of the first mass-produced AC drives.
- 2014: Acquisition of the Finnish drives maker Vacon, now the VACON brand.
- 2021: Acquisition of Eaton's hydraulics business.
Choosing Danfoss products
For solenoid valves, check the operating principle. A direct-operated valve such as EV210B opens even at 0 bar differential pressure. A servo-operated valve such as EV220B needs a minimum differential (typically about 0.3 bar) to open, while an assisted-lift valve such as EV250B works from 0 bar. Coils are ordered separately, so the voltage on the coil (for example 230 V AC or 24 V DC) must match the control circuit. For drives, the VLT family is split by application: FC 51 Micro Drive for small machines, FC 102 HVAC Drive for fans and pumps in buildings, FC 202 AQUA Drive for water, and FC 302 AutomationDrive for demanding industrial duty.
Where Danfoss products are used
In Oman and the GCC, Danfoss drives run pumps, fans and compressors in district cooling plants, water and wastewater stations, desalination and building HVAC. Danfoss pressure switches, transmitters and solenoid valves are built into chillers, refrigeration plants, boilers and hydraulic systems, and AB-QM valves balance chilled-water circuits in large buildings.
Danfoss products we list
| Family | Examples |
|---|---|
| Variable speed drives and soft starters | VLT Micro Drive FC 51, VLT HVAC Drive FC 102, VLT AQUA Drive FC 202, VLT AutomationDrive FC 302, FC 280, iC2-Micro, VACON NXP, MCD 600 soft starter |
| Solenoid valves and coils | EV220B, EV210B, EV250B, EV225B steam, EVR 25, AM230C coil |
| Pressure switches and thermostats | KP 37, KP 44, RT 200, CS, MBC 5000, KPS 77, RT 101 |
| Pressure transmitters | MBS 3000, MBS 5100, MBS 3250, MBS 4251 Ex, AKS 33, DST P92S SIL 2 |
| HVAC and refrigeration valves | AB-QM PICV, NovoCon S, AB-PM, AVTA, ICV, TE 5 element |
Ordering Danfoss products: what we need
Send the Danfoss code number from the label (for example 032U7115 or 131B0149) or the full drive type code (FC-302P3K0T5...). For drives, add the motor power, supply voltage and any fieldbus option. For valves, add the size, connection, medium and coil voltage. For pressure switches and transmitters, add the range, output and pressure connection.
Facts checked against Danfoss's company history pages and published company data, October 2026.
Browse Danfoss products by category: AC Drives, Pressure Instrumentation, Control Valves, Solenoid Valve.
Related products
Frequently Asked Questions
What is Danfoss 027H1085?
An ICMTS 20A motor-operated valve for transcritical CO2 (R744) with 25 mm butt-weld connections and a Kv of 0.6 m3/h.
What pressure can it handle?
A maximum working pressure of 140 bar and a MaxOPD of 90 bar.
Which actuator is used?
The ICAD 600B-TS actuator; the valve body is ordered separately.
Which controller is listed?
The product page lists the Danfoss EKC 326A.
Which document is attached?
The Danfoss ICMTS with ICAD 600B-TS data sheet AI217586428573en-001402.
