Brand: Barksdale

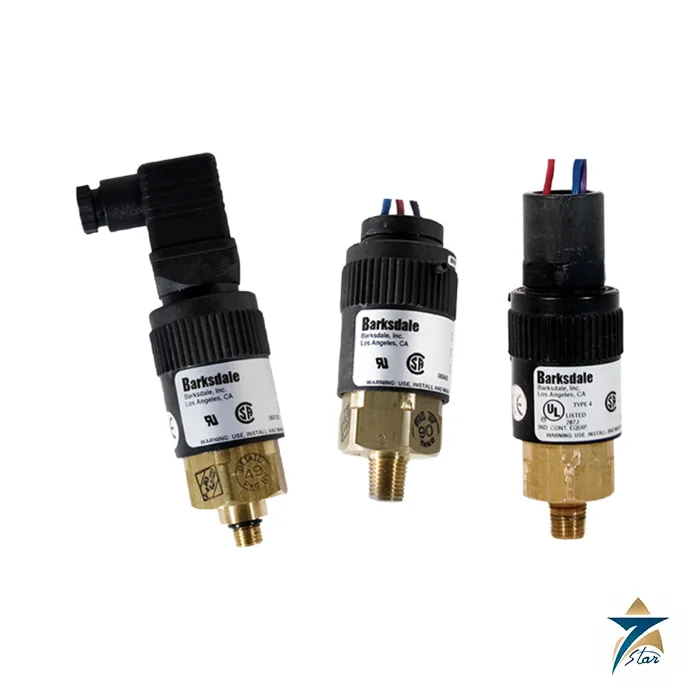

Barksdale 96201 Series Compact Pressure Switch
Description
A compact SPDT pressure switch for hydraulics, compressors and engines
The Barksdale 96201 series is a small piston or diaphragm pressure switch with a single-pole double-throw snap-action microswitch. The datasheet covers three related series: 96221 for vacuum, 96211 for low pressures up to 500 psi and 96201 for high pressures up to 7500 psi, so one housing style spans vacuum monitoring through high-pressure hydraulic circuits. Switches are factory preset and locked or field adjustable through an external adjustment sleeve, and the plastic enclosure is NEMA 1 as standard, or NEMA 4 with the conduit connector options and IP65 with the DIN connector.
Barksdale lists pump and compressor monitoring, air proving in HVAC systems, engine monitoring, machine tools, hydraulic power units, mobile hydraulics, medical equipment, irrigation systems and general industrial applications.
Technical specifications
| Parameter | Specification |
|---|---|
| Series | 96201 (high pressure), 96211 (low pressure), 96221 (vacuum) |
| Switch type | SPDT snap action, single circuit |
| Accuracy | +/-2% of full range |
| Rating | 5 A at 125/250 VAC (Class BB microswitch, standard); 5 A at 30 VDC (Class BB microswitches, no agency) |
| Process connection | 1/4 inch NPT male (standard); 7/16-20 SAE with O-ring (-P1) |
| Wetted parts | Brass fitting (standard); stainless steel piston with Teflon back-up ring on 96201 |
| Seals | Buna-N (standard); Viton (-V) |
| Electrical connection | 12 inch free leads, 18 AWG (standard); DIN 43650A, 1/2 inch NPT conduit options |
| Enclosure | NEMA 1 plastic (standard); NEMA 4 with -T4 or -T5; IP65 with -T2 DIN |
| Operating temperature | 96201: -40 to 165 F (-40 to 74 C); 96211: -20 to 165 F (-29 to 74 C); 96221: 0 to 165 F (-18 to 74 C) |
| Adjustment | Field adjustable by external sleeve; L-prefix models factory set and permanently locked |
| Approvals | UL recognized component (file E42816), UL listed with conduit connector; CSA LR22355 |
| Shipping weight | Approx. 0.95 lb |
Selecting the base model and setpoint range
The base model sets the adjustable range, so choose the range that places the required trip point in the middle third of the window rather than at an end. Check proof pressure against the highest transient. Ranges as printed on the datasheet:
| Model | Decreasing setpoint (psi / bar) | Increasing setpoint (psi / bar) | Approx. deadband | Proof pressure |
|---|---|---|---|---|
| 96221-BB1 | 1 to 28 in. Hg | 6 to 30 in. Hg | 0.5 to 8 in. Hg | see datasheet |
| 96211-BB1 | 2.5 to 12.8 (0.2 to 0.9) | 3 to 15 (0.2 to 1) | 0.3 to 3 psi (0.02 to 0.21 bar) | 1000 psi (68 bar) |
| 96211-BB2 | 5 to 31 (0.3 to 2) | 6 to 35 (0.4 to 2.4) | 0.5 to 6 psi (0.03 to 0.41 bar) | 1000 psi (68 bar) |
| 96211-BB3 | 8.5 to 44 (0.6 to 3) | 10 to 50 (0.6 to 3.4) | 0.5 to 8 psi (0.03 to 0.55 bar) | 1000 psi (68 bar) |
| 96211-BB4 | 22.5 to 112 (1.5 to 8) | 25 to 125 (1.8 to 8.5) | 1 to 15 psi (0.07 to 1.03 bar) | 1000 psi (68 bar) |
| 96211-BB5 | 70 to 220 (5 to 15) | 80 to 250 (5.5 to 17) | 5 to 40 psi (0.34 to 2.76 bar) | 1000 psi (68 bar) |
| 96211-BB6 | 110 to 440 (7 to 30) | 130 to 500 (9 to 34) | 10 to 75 psi (0.69 to 5.17 bar) | 1000 psi (68 bar) |
| 96201-BB1 | 190 to 450 (13 to 31) | 250 to 600 (17 to 41) | 30 to 150 psi (2.07 to 10.35 bar) | 7000 psi (476 bar) |
| 96201-BB2 | 360 to 1450 (24 to 105) | 430 to 1700 (29 to 116) | 40 to 400 psi (2.76 to 27.59 bar) | 7000 psi (476 bar) |
| 96201-BB5 | 300 to 2500 (20 to 170) | 380 to 3000 (26 to 200) | 80 to 500 psi (5.52 to 34.48 bar) | 7000 psi (476 bar) |
| 96201-BB3 | 1450 to 3900 (105 to 265) | 1650 to 4400 (112 to 300) | 100 to 750 psi (6.90 to 51.72 bar) | 7000 psi (476 bar) |
| 96201-BB4 | 3650 to 6700 (248 to 456) | 4000 to 7500 (272 to 510) | 200 to 1000 psi (13.79 to 68.96 bar) | 12000 psi (816 bar) |
Increasing is the actuation value on rising pressure and decreasing is the reset value on falling pressure; the difference is the deadband.
Ordering code, options and what to confirm
The datasheet example code is 96211-BB3 SS -T5 -V. The base model is followed by the contact and fitting codes, and options are added as suffixes: -T2 for a DIN 43650A connector, -T4 for a 1/2 inch NPT male conduit connector with free leads, -T5 for a 1/2 inch NPT female conduit connector with free leads, -V for Viton diaphragm and O-rings in place of the Buna-N standard, -Z1 cleaned for oxygen service, -Z12 gold contact limit switch rated 1 A at 125 VAC, -P1 for a 7/16-20 SAE fitting with O-ring and -S for a factory preset. Prefix L gives a factory-set permanently locked switch and prefix T adds a tamper-resistant set screw. Some options are not available on every base model: the datasheet notes restrictions on 96221-BB1 and 96201-BB4, and the Viton option is not available with the DIN connector.
Before ordering, give us the exact code with prefix, base model and suffixes, the media, the working and peak pressure, the required trip and reset points and the electrical load. Standard wetted parts are a brass 1/4 inch NPT male process fitting, Buna-N seals and a stainless steel piston on 96201 models with a Teflon back-up ring; media that attack brass or Buna-N need an alternative material, and the switch rating is 5 A at 125 or 250 VAC, or 5 A at 30 VDC on the DC-rated microswitches. Operating temperature is -40 to 165 F on 96201, -20 to 165 F on 96211 and 0 to 165 F on 96221 (listed as -40 to 74, -29 to 74 and -18 to 74 C).
Documents and quotation
The attached file is the two-page Barksdale datasheet for series 96201, 96211 and 96221. More pressure instruments are in pressure instrumentation. Send the full model code, quantity and any preset values for a quotation.
Datasheets & Documents
- Datasheet Barksdale compact pressure switch series 96201, 96211, 96221 datasheet (2 pp) Download
Reviews (0)
About brand
Barksdale is a Los Angeles manufacturer of pressure, level, temperature and flow switches and transmitters that has built control products for hydraulic, pneumatic and process equipment since 1949. It is a subsidiary of Crane Co. and also sells air suspension valves and, through its Dynalco brand, speed instruments. Seven Star LLC, an independent supplier in Muscat, supplies Barksdale instruments to Oman and GCC buyers on inquiry.
Pressure, level and temperature switches
The Barksdale range covers compact and diaphragm pressure switches, electronic switches with optional IO-Link, float and electronic level switches, tank level transmitters, temperature switches and pressure transducers. Typical uses are hydraulic power units, compressors, lube and fuel skids, engines, cooling circuits and tanks.
Datasheets on every Barksdale page
Each Barksdale product page on this site links the official datasheet. We check the series, range code and options against the manufacturer document before quoting, so the part you order matches the model you asked for.
Related products
Frequently Asked Questions
What pressure ranges does the Barksdale 96201 series cover?
Vacuum on 96221, up to 500 psi setpoints on 96211 and up to 7500 psi on 96201, depending on the base model.
What is the electrical rating?
5 A at 125 or 250 VAC on the standard Class BB microswitch, or 5 A at 30 VDC on DC-rated microswitches.
What is the process connection?
1/4 inch NPT male as standard, with a 7/16-20 SAE O-ring fitting available as option -P1.
Can the setpoint be locked?
Yes. Models with the L prefix are factory set and permanently locked; others are field adjustable by an external sleeve.
What enclosure rating applies?
NEMA 1 as standard, NEMA 4 with the -T4 or -T5 conduit options and IP65 with the -T2 DIN connector.
