Brand: Dahua

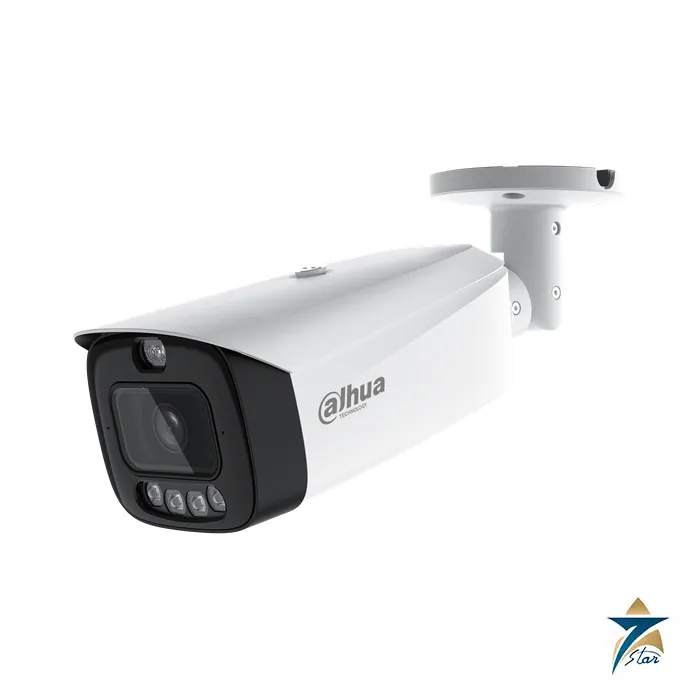

Dahua IPC-HFW3449T1-AS-PV-PRO 4MP TiOC PRO WizColor Bullet
Description
IPC-HFW3449T1-AS-PV-PRO is a 4 MP WizColor TiOC PRO bullet camera from the Dahua WizSense 3 series. Beyond video it carries a siren, red and blue warning lights, a built-in speaker and two microphones, so it can record an intruder and also warn them off, with two-way talk to a person at the monitoring desk.
A bullet camera that deters as well as records
Dahua lists a sound and light alarm (red and blue lights) and active deterrence in the power figures, and the camera has one alarm input and one alarm output, one audio input and one audio output on RCA ports. When an intrusion or tripwire rule fires, the siren and lights can run while the operator speaks through the speaker, which suits unattended gates, solar farms, depots and construction sites.
Two fixed lenses are offered: 2.8 mm (111 degrees horizontal) and 3.6 mm (95 degrees). The multi-core lights reach 40 m infrared and 40 m warm light with the 2.8 mm lens, and 60 m infrared and 50 m warm light with the 3.6 mm lens. The camera is 288.4 mm long and weighs 1.0 kg.
Key features from the Dahua datasheet
- 4 MP 1/1.8 inch sensor, F1.0, 0.0001 lux colour, 130 dB WDR
- Four multi-core (IR plus warm) lights, 60 m IR with the 3.6 mm lens
- Siren, red and blue light, speaker, dual microphone, two-way talk
- Perimeter protection with Large-Scale AI Models, SMD 4.0, AcuPick, AI SSA, face detection
- 1 alarm in and out, 512 GB micro SD, 12 VDC or PoE+, IP67
Technical specification
Camera and lens
| Parameter | Specification |
|---|---|
| Image sensor | 1/1.8 inch CMOS |
| Maximum resolution | 2688 (H) x 1520 (V) |
| Minimum illumination | 0.0001 lux at F1.0 (colour and B/W, 30 IRE); 0 lux with illuminator on |
| Signal-to-noise ratio | Above 56 dB |
| Lens type and mount | Fixed-focal, M16; 2.8 mm or 3.6 mm; F1.0 |
| Field of view | 2.8 mm: H 111, V 60, D 135 degrees; 3.6 mm: H 95, V 51, D 114 degrees |
| Close focus distance | 2.8 mm: 2.0 m; 3.6 mm: 3.5 m |
| DORI, 2.8 mm (detect / observe / recognize / identify) | 56.6 m / 22.6 m / 11.3 m / 5.7 m |
| DORI, 3.6 mm | 69.0 m / 27.6 m / 13.8 m / 6.9 m |
| Illumination | 4 multi-core lights; 2.8 mm: IR 40 m, warm 40 m; 3.6 mm: IR 60 m, warm 50 m |
| Angle adjustment | Pan 0 to 360, tilt 0 to 90, rotation 0 to 360 degrees |
Video and intelligence
| Parameter | Specification |
|---|---|
| Video compression | H.265; H.264; H.264H; H.264B; MJPEG (sub stream); Super AI Coding |
| Streams | 3 streams; main 2688 x 1520, sub and third 1920 x 1080 at 1 to 25/30 fps |
| Bit rate | H.264 and H.265 3 to 16384 kbps; VBR, CBR, ABR |
| WDR / BLC / HLC | 130 dB / yes / yes |
| Privacy masking | 8 areas |
| IVS | Intrusion and tripwire (human and vehicle), stay and loitering detection |
| Other analytics | SMD 4.0; AcuPick; AI SSA; face detection (full image); one-tap arming |
| Audio | Dual microphone, speaker, two-way talk; PCM, G.711a, G.711Mu, G.726, G.723 |
Interfaces, power and environment
| Parameter | Specification |
|---|---|
| Ethernet | RJ-45 at 10/100 Mbps |
| Interoperability | ONVIF (Profile S, G, T); CGI; SDK and API |
| Alarm input | 1 channel; wet contact (max 5 mA, 3 to 5 VDC) or dry contact |
| Alarm output | 1 channel; wet contact, max 300 mA at 12 VDC |
| Audio ports | 1 in and 1 out, RCA |
| Recording targets | Micro SD to 512 GB, FTP, SFTP, NAS |
| Power supply | 12 VDC (+/-30 percent); PoE+ (802.3at) |
| Power consumption | Basic 3.7 W (12 VDC), 5.5 W (PoE); maximum 11.4 W (12 VDC), 14.3 W (PoE) with siren and light active |
| Operating limits | -40 to +60 C and up to 95 percent RH, no condensation |
| Protection | IP67; basic anti-corrosion level |
| Casing | Metal and plastic |
| Dimensions | 288.4 mm x 94.4 mm x 84.7 mm (L x W x H) |
| Weight | 1.0 kg net; 1.3 kg gross |
| Certifications as printed | CE-LVD (EN 62368-1); CE-EMC (2014/30/EU) |
Selection and ordering guide
The datasheet ordering code is DH-IPC-HFW3449T1-AS-PV-PRO (4MP WizColor TiOC PRO Fixed-focal Bullet WizSense Network Camera). The letters AS and PV in the code line up with the audio, alarm and active-deterrence features listed in the datasheet; this reading is derived, not a Dahua definition.
The siren and light draw is included in the 14.3 W PoE maximum, so use an 802.3at (PoE+) port when deterrence is active; the datasheet specifies PoE+ rather than basic PoE for this model.
Installation and operation notes
Dahua lists the DH-PFA130-E waterproof junction box, DH-PFA135 junction box and G3416GW G3/4 inch water joint for cabling, and DH-PFA152-E and DH-PFA151 brackets for pole and corner mounting. The one-tap arming and disarming feature and the SMD area in the warm-light zone are configured in the web interface. Test the speaker volume on site before relying on it for deterrence, and follow local rules on audio warnings.
Applications in Oman and the GCC
Unattended sites where a human response is minutes away benefit from a camera that can speak and flash: remote pump stations, storage yards, solar plants, construction compounds and shop frontage. The temperature rating to +60 C and IP67 enclosure are as printed; basic corrosion class means coastal sites need a separate check.
Compatible accessories and related items
Datasheet accessories: DH-PFA130-E waterproof junction box, DH-PFA151 corner bracket, G3416GW water joint, DH-PFA152-E pole bracket, DH-PFA135 junction box, DH-PFM320-020EN and DH-PFM320D-EN 12 VDC 2 A adapters, PFM900-E mount tester and DHI-TF-P100/512GB microSD card.
Frequently asked questions
What makes the TiOC PRO different from a plain bullet?
It adds a siren, red and blue warning lights, a speaker and two-way talk, so the camera can respond to an event as well as record it.
How far do the lights reach?
2.8 mm lens: 40 m infrared and 40 m warm light. 3.6 mm lens: 60 m infrared and 50 m warm light.
Which PoE standard does it need?
PoE+ (802.3at), or 12 VDC; maximum draw is 14.3 W on PoE with siren and light active.
How much storage can it hold?
A micro SD card up to 512 GB, plus FTP, SFTP and NAS recording.
Can Seven Star LLC quote this model?
Yes. We are an independent supplier in Muscat; send the lens option and quantity through the quotation form.
Documents and quotation
This page carries the official Dahua datasheet for IPC-HFW3449T1-AS-PV-PRO. Seven Star LLC is an independent supplier in Muscat and sources Dahua products on request; tell us the quantity and delivery point to receive a quotation. Always confirm the order code and technical values in the document first. See more in the product category.
Datasheets & Documents
- Datasheet Dahua IPC-HFW3449T1-AS-PV-PRO datasheet (PDF, Rev 002.000, 2026) Download
