Brand: Viking

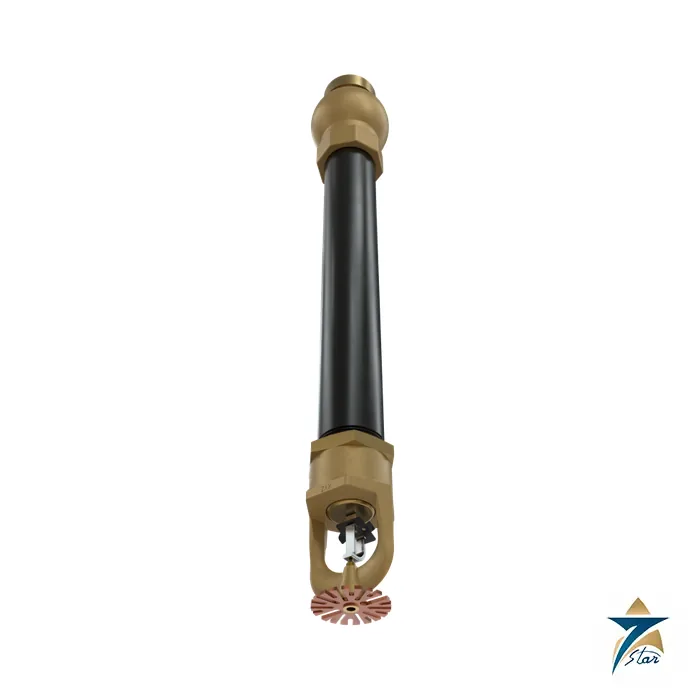

Viking VK512 K25.2 ESFR Dry Pendent Sprinkler for Freezers
Description
An ESFR sprinkler for freezers and other unheated storage
The Viking VK512 is an ESFR dry pendent sprinkler: a K25.2 (363 metric) fast response fusible element head permanently secured to a special supply nipple. Viking designed it for storage areas subject to freezing that are supplied from a wet system in an adjacent heated area, so the water stays on the warm side of the wall or ceiling and only the sealed barrel and head reach into the cold space. Viking states it has been available since 2022.
The assembly has a sealed brass inlet with a 1-1/2 in grooved connection, and each sprinkler includes two optional insulating boot assemblies. The boots seal the clearance around the barrel to slow air exchange between the cold area and the room above, which Viking says helps limit condensation, humidity and temperature differences that could lead to ice build-up and either block operation or cause premature operation.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer / model | Viking, VK512 ESFR dry pendent sprinkler (grooved) |
| Nominal K-factor | 25.2 US (363 metric, bar) |
| Connection | 1-1/2 in grooved |
| Barrel tube diameter | 1-11/16 in (43.86 mm) |
| Maximum working pressure | 175 psi (12 bar); factory test 500 psi (34.5 bar) |
| Deflector diameter | 1-3/4 in (44.5 mm) |
| Nominal lengths, parts | 19-1/2 in (495 mm) part 24850; 25-1/2 in (648 mm) part 24853; 31-1/2 in (800 mm) part 24856; 37-1/2 in (950 mm) part 24859 |
| Finishes | A brass; JN electroless nickel PTFE (ENT) |
| Temperature ratings | C ordinary 165 °F (74 °C), ceiling to 100 °F (38 °C); E intermediate 205 °F (96 °C), ceiling to 150 °F (65 °C) |
| Materials | Brass or DZR brass frame; phosphor bronze deflector; stainless steel compression screw and trigger; steel tube ASTM A-513 barrel, epoxy base finish |
| Printed listings | FM Approved Class 2026 as a quick response pendent storage sprinkler; CE CPR DOP_VK512 |
| Boots included | Two insulating boot assemblies per sprinkler (optional use) |
Viking states the VK512 can be installed into welded outlets that meet the dimensional requirements of ANSI B16.3 (Class 150).
Ordering and installation notes
The order code is the base part number for length, then the finish suffix, then the temperature suffix. 24853AC is a VK512 at 25-1/2 in with brass finish and a 165 °F (74 °C) element, for rooms up to 100 °F (38 °C). Viking recommends temporarily assembling all components before final installation to check the measurements, and installing the boots on smooth, flat, clean surfaces. For corrugated ceiling panels and similar situations other penetration sealing methods may be needed.
Under FM, the VK512 is installed in accordance with FM Global Data Sheets 2-0 and 8-9. Wet pipe systems must be provided with adequate heat.
Other Viking ESFR models
For heated storage the standard pendent models are usually simpler. The VK512 is the dry option in the series.
| Viking ESFR model | K-factor and type | Connection |
|---|---|---|
| VK500 | K14.0 ESFR pendent | 3/4 in NPT or 20 mm BSPT |
| VK503 | K16.8 ESFR pendent | 3/4 in NPT or 20 mm BSPT |
| VK506 | K22.4 ESFR pendent | 1 in NPT or 25 mm BSPT |
| VK510 | K25.2 ESFR pendent | 1 in NPT or 25 mm BSPT |
| VK514 | K28.0 ESFR pendent | 1 in NPT or 25 mm BSPT |
Confirm before ordering
Confirm the length needed from the ceiling build-up, the finish (brass or ENT), temperature rating and whether the project requires FM Approval only, as the datasheet prints FM and CE information for this model. The hydraulic design must match the listing tables for the commodity and storage height. The attached Viking technical data gives the full table set. Send length, finish and quantity for a quotation, and see more Fire Fighting equipment.
Datasheets & Documents
- Datasheet Viking VK512 ESFR dry pendent sprinkler technical data, Form F_071221 Rev 05 Download
Reviews (0)
About brand
Viking is a fire protection manufacturer headquartered in Caledonia, Michigan, in the United States. Its range covers fire sprinklers, wet, dry and deluge valves, foam systems, special hazard products, CPVC piping and release control panels for commercial and industrial buildings. Seven Star LLC lists selected Viking products together with the technical data published by the manufacturer.
Viking product ranges
Viking sprinklers run from standard and extended coverage heads to storage sprinklers such as the ESFR family, residential and dry barrel types. The valves and systems range includes wet pipe, dry pipe and deluge or preaction equipment, accelerators and flow control valves. Viking foam products include proportioners, discharge devices and high expansion foam generators, while Oxeo is its clean agent system.
Documents and quotation
Each Viking product page links the manufacturer technical data, which lists approvals, dimensions, materials and part numbers. Send the Viking part number, quantity and delivery location with your request, and Seven Star LLC will prepare a quotation from its base in Muscat, Oman.
Related products
Frequently Asked Questions
What is the Viking VK512 used for?
It is an ESFR dry pendent sprinkler for storage areas subject to freezing, supplied from a wet system in an adjacent heated area.
What lengths does the VK512 come in?
Nominal lengths of 19-1/2, 25-1/2, 31-1/2 and 37-1/2 in (495, 648, 800 and 950 mm) with part numbers 24850, 24853, 24856 and 24859.
What connection does the VK512 have?
A 1-1/2 in grooved inlet on a sealed brass inlet fitting.
Are insulating boots included with the VK512?
Yes. Each sprinkler assembly includes two optional insulating boot assemblies.
Which finishes are offered for the VK512?
Brass (suffix A) and electroless nickel PTFE, ENT (suffix JN).
