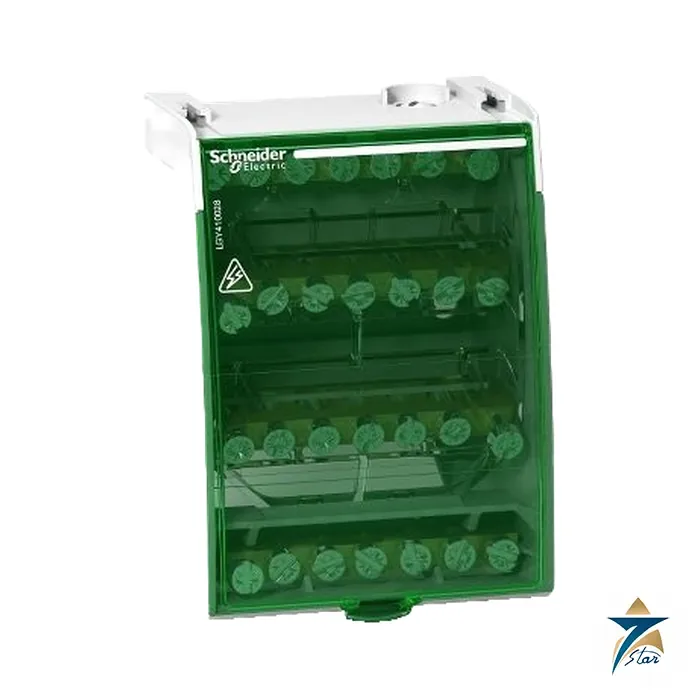

Schneider Electric Linergy Busbar Distribution Block

Overview

The Schneider Electric Linergy Busbar Distribution Block is a compact busbar-based distribution system used to feed multiple circuit breakers from a single incoming supply within a distribution board, replacing individual point-to-point wiring with a rigid, pre-engineered conductor. For panel builders across Oman and the GCC, Linergy busbar distribution significantly reduces wiring time and improves the consistency of connections compared with traditional cable looping between devices.

Backed by genuine manufacturer documentation, Seven Star LLC proudly supplies the Schneider Electric Linergy Busbar Distribution Block busbar-based power distribution block to industrial, commercial, and utility customers across the Sultanate of Oman and the wider GCC. Units are supplied on request with full technical documentation and application support for panel builders and facility engineers in Oman specifying a busbar-based power distribution block.

Design Principle

The Linergy busbar system works by mounting a rigid copper or aluminum conductor along a row of DIN-rail devices, with insulated comb or pin connectors that plug directly into the terminals of compatible circuit breakers and isolators. This eliminates the need to cut, strip, and torque individual jumper wires between each device, replacing a labor-intensive wiring task with a mechanical connection that is both faster to install and more consistent from panel to panel.

Because the Schneider Electric Linergy busbar carries a defined current rating engineered for the conductor cross-section and insulation system, panel builders can size the distribution block confidently against the incoming supply current without performing individual cable sizing calculations for each jumper. The rigid busbar also improves short-circuit withstand at the point of distribution compared with looped cable connections, which can loosen or overheat under fault conditions.

Engineering Design of the Schneider Electric Linergy

The Linergy range includes both single-phase and three-phase pin busbar systems, sized to feed rows of miniature circuit breakers, RCBOs, or RCDs from Schneider’s Acti9 and Multi 9 ranges, with insulating covers that maintain touch-safe protection along the exposed conductor length. Standard lengths cover common DIN rail widths, and busbars can be cut and adapted on site for shorter distribution runs.

Connection points on the Schneider Electric Linergy busbar are designed for tool-free or single-tool insertion into compatible device terminals, and color-coded phase markings help electricians maintain correct phase sequencing across a distribution board during installation. This consistency is particularly valuable on large panel-building projects in Oman where multiple electricians may be wiring different sections of the same switchboard simultaneously.

Key Features

The Schneider Electric Linergy Busbar Distribution Block is built around design priorities that matter most to busbar power distribution specifiers in Oman and the GCC:

• The Linergy busbar replaces individual jumper wiring between DIN-rail devices with a rigid conductor.
• Insulated comb and pin connectors plug directly into compatible circuit breaker and isolator terminals.
• A defined current rating simplifies sizing the distribution block against incoming supply current.
• Rigid busbar construction improves short-circuit withstand compared with looped cable connections.
• Single-phase and three-phase pin busbar variants cover common distribution board configurations.
• Insulating covers maintain touch-safe protection along the exposed busbar length.
• Color-coded phase markings help maintain correct phase sequencing during panel wiring.
• Busbars can be cut and adapted on site to fit shorter distribution runs.

Industrial Applications

The Schneider Electric Linergy Busbar Distribution Block is widely specified in distribution boards across residential towers, commercial fit-outs, and industrial facilities in Oman, wherever panel builders need to wire multiple circuit breakers from a single incoming feed quickly and consistently. Contractors in Muscat rely on Linergy busbar systems to cut panel assembly time on large multi-way distribution boards common in apartment developments.

Working closely with plant engineers in the region, Seven Star LLC distributes the Schneider Electric Linergy Busbar Distribution Block to panel builders, MEP contractors, and plant operators throughout Muscat, Sohar, and Salalah, supporting district cooling plants, RO desalination facilities, oil and gas installations, commercial towers, and hospital complexes across the GCC. Specifiers in Oman can source the Schneider Electric Linergy Busbar Distribution Block through Seven Star LLC on request, with lead time confirmed at quotation and technical support with selection.

Technical Specifications

The table below summarizes the key technical parameters of the Schneider Electric Linergy Busbar Distribution Block relevant to specification and procurement.

Request a Quote for Schneider Electric Linergy Busbar Distribution Block

Facility engineers and procurement teams in Oman and across the GCC can request a formal RFQ for the Schneider Electric Linergy Busbar Distribution Block directly from Seven Star LLC’s instrumentation and low-voltage division. We supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and offer pre-sales engineering support to confirm compatibility before order placement. With fast quotation turnaround and technical support, Seven Star LLC supports the Schneider Electric Linergy Busbar Distribution Block across its full lifecycle, from specification and quotation through delivery, commissioning assistance, and after-sales spares.

Beyond new panel builds, the Schneider Electric Linergy Busbar Distribution Block is also used when reworking existing distribution boards in Oman during capacity upgrades, since a busbar retrofit is typically faster than rewiring an entire row of devices with new jumper cables. Its consistent connection quality also reduces the risk of loose-connection heating faults that inspectors frequently flag during periodic maintenance audits of older switchboards.
