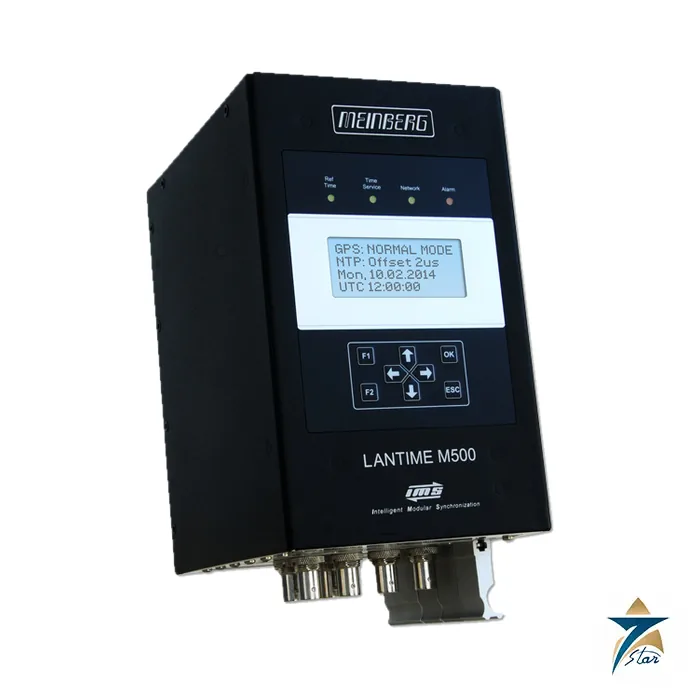

Meinberg LANTIME M500 Modular DIN-Rail Time Server

Name: Meinberg LANTIME M500 Modular Time Server – Datasheet
Brand: Meinberg
SKU: LANTIME M500

Description

The Meinberg LANTIME M500 is a modular time and frequency synchronisation system in a DIN-rail chassis, part of Meinberg’s IMS (Intelligent Modular Synchronization) platform. One housing holds a power supply, a reference clock module, a CPU module and two slots for input or output modules, so the same unit can act as an NTP server, a PTP source, an IRIG or pulse generator or a telecom synchronisation source. With up to 6,000 NTP requests per second it can serve hundreds or thousands of clients.

Technical specifications

Parameter	Specification
Model	LANTIME M500 (IMS, DIN-rail chassis)
Slots	1 x IMS-PWR power supply, 1 x IMS-CLK reference clock, 1 x IMS-CPU, 2 x input/output slots (IMS-MRI, IMS-ESI), 1 x IMS-CES expansion slot
Reference sources	GPS, GLONASS, Galileo, BeiDou, PZF (DCF77), PTP/IEEE 1588, NTP, SyncE, IRIG/AFNOR time codes, PPS, 10 MHz, 2.048 kHz, E1/T1 with SSM/BOC; priority, bias and precision level set per source
NTP performance	Up to 6,000 NTP requests per second; up to 99 logical network interfaces (99 IPv4 and 99 IPv6 addresses)
PTP	Up to 2 PTP (IEEE 1588-2008) modules
Protocols	IPv4, IPv6, NTP and SNTP (v2, v3, v4), NTS, PRP (IEC 62439-3), SNMP v1, v2c, v3, HTTP(S), SSH, Telnet, FTP, SFTP, DHCP, DHCPv6; SNTP synchronisation of IEC 61850 devices
Network interfaces	CPU-C15G2: 1 x 100/1000BASE-T RJ45 and 1 x 1000BASE-T SFP (CPU-C05F1: 1 x 10/100 RJ45); up to 8 additional gigabit ports (RJ45 or SFP) with LNE options
Outputs	Frequency synthesizer 0.125 Hz to 10 MHz via external modules; serial time strings (COM 0, 300 to 19,200 baud); error relay 125 V DC / 140 V AC, 1 A, 30 W DC / 60 VA AC; pulse accuracy below plus or minus 50 ns with OCXO or rubidium oscillators
Display and controls	LC display 4 x 16 characters, eight push buttons, four bicolour status LEDs, USB port
Power supply	AD10: 90 to 265 V AC (47 to 63 Hz) or 90 to 250 V DC; DC20: 20 to 60 V DC; DC10: 10 to 36 V DC
Power consumption	50 W maximum
Housing	Black powder-coated aluminium DIN-rail housing, 118 x 193 (227 with connectors and handles) x 160 mm (W x H x D)
Operating / storage temperature	0 to 50 degC / -20 to 70 degC
Humidity	Maximum 95 percent non-condensing at 40 degC
Manufacturer support and warranty	Three-year warranty, firmware updates for the life of the product, free lifetime technical support from Meinberg

How the module concept works

All modules are hot-plug capable and are configured through the central web interface of the CPU module, so a system can grow without replacing the chassis. Choose the reference clock for the satellite or time-code source, then add input modules for IRIG, PPS or 10 MHz references, or output modules for time codes, pulses, frequencies and extra network ports. The datasheet notes that the MRI and ESI slots can serve as either input or output, which is useful in substations that need both a legacy IRIG-B feed and an Ethernet time service.

Planning an order

Define the reference source first, then list every output the site needs: NTP ports, PTP, IRIG-B, pulses or serial strings. Choose the oscillator to match the accuracy target, since the datasheet quotes pulse accuracy below plus or minus 50 ns for the OCXO and rubidium options. Select the AC/DC or low-voltage DC supply to match the station power, and confirm whether PRP networks or SFP fibre ports are needed. The rack-mounted Meinberg LANTIME M1000 offers the same IMS concept in a 1U rack chassis, while compact DIN-rail NTP-only needs are covered by simpler models listed under industrial communications.

Documents and quotation

The linked document is the Meinberg LANTIME M500 data sheet. Meinberg states that no online manual is available for this model. Send us the reference source, module list, oscillator option, supply voltage and port requirements, and Seven Star LLC, an independent supplier in Muscat, will prepare a quotation for the configuration.
