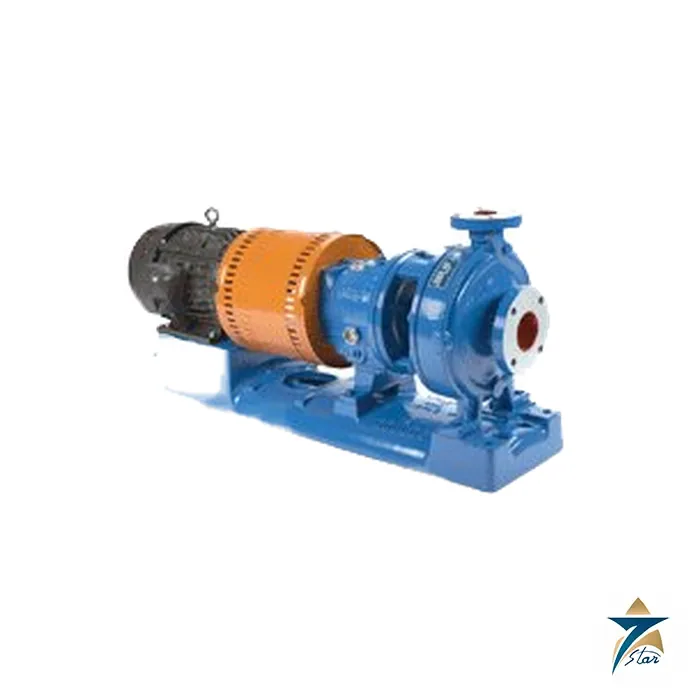

Goulds 3196 i-FRAME ANSI Process Pump

Overview

The Goulds 3196 i-FRAME process pump is the industry-reference ANSI pump, installed across more sites worldwide than any other pump in its class. Built to ASME B73.1 dimensional standards across 29 sizes, the Goulds 3196 i-FRAME gives chemical, petrochemical, pulp and paper, and general industrial plants a single, standardized process pump platform that simplifies spares stocking and field interchangeability across an entire site.

With fast quotation turnaround and technical support, Seven Star LLC supplies the Goulds 3196 i-FRAME to refineries, chemical processing plants, and industrial facilities across the Sultanate and the wider GCC, backed by genuine manufacturing, factory testing, and technical support.

Operating Principle

The Goulds 3196 i-FRAME uses a fully open impeller design that draws process fluid axially and accelerates it radially into the volute casing, converting kinetic energy into discharge head while the open-impeller geometry tolerates minor solids or entrained particulate without clogging. A back pull-out bearing frame allows the rotating assembly to be withdrawn for maintenance without disturbing the casing or connected piping, keeping turnaround time short on continuously running process lines.

Patented Taperbore PLUS and BigBore seal chamber options on the Goulds 3196 i-FRAME improve mechanical seal lubrication and heat dissipation compared with a conventional stuffing box, extending seal life on demanding or marginally lubricating process fluids. Inpro VBXX-D hybrid bearing isolators keep contaminants out of the bearing housing, while onboard i-ALERT condition-monitoring sensors track vibration and temperature to flag developing mechanical issues before an unplanned failure.

Engineering Design of Goulds 3196 i-FRAME ANSI Process Pump

Every Goulds 3196 i-FRAME pressure-containing component is hydrostatically tested to ANSI B15.1 before shipment, and the casing, impeller, and wetted parts are available in a wide range of metallurgies, from cast iron and ductile iron through 316 stainless steel and high-alloy options, to match the corrosivity of the pumped fluid. External impeller adjustment allows clearance to be reset in the field without disassembling the pump, reducing efficiency loss from impeller wear over the service interval.

The bearing frame and premium thrust bearing arrangement on the Goulds 3196 i-FRAME are engineered for extended mean time between repairs, and the platform is manufactured with full 50/60 Hz motor coverage so the same pump family serves projects across different regional power standards without a redesign.

Selecting seal chamber type and impeller trim correctly at the outset extends the Goulds 3196 i-FRAME service interval considerably; an oversized impeller run far off its best-efficiency point accelerates seal and bearing wear, so Seven Star LLC reviews actual system curves before confirming a final selection rather than defaulting to a catalog duty point.

Key Features

• ANSI/ASME B73.1 dimensional standard across 29 available sizes
• Flow rates to 7,000 GPM (1,590 m³/h) and heads to 730 ft (223 m)
• Working pressure to 375 PSIG, temperature to 700°F (371°C) in the HT variant
• Fully open impeller tolerant of minor solids and entrained particulate
• Patented Taperbore PLUS and BigBore seal chamber technology
• Inpro VBXX-D hybrid bearing isolators with premium thrust bearings
• Onboard i-ALERT condition monitoring for predictive maintenance
• Back pull-out design with external impeller adjustment

Industrial Applications

Refineries and petrochemical complexes across Oman and the GCC, including facilities supporting the industrial zones at Sohar and Salalah, specify the Goulds 3196 i-FRAME for general process transfer duty on hydrocarbons, caustic, and other process fluids where a proven ANSI pump with widely available spare parts reduces long-term maintenance risk. Chemical processing and general manufacturing plants throughout the region also rely on the same platform for cooling water, feed, and transfer services across continuous operations.

Because the Goulds 3196 i-FRAME follows the ANSI B73.1 footprint, plants standardizing on this platform across multiple duty points can hold common bearing frame, seal, and wear part inventory rather than unique spares per installation, and Seven Star LLC as an experienced supply partner supports these standardization programs with technical sizing and stock planning for GCC operators. Turnaround planning also benefits from the back pull-out design: because the bearing frame, seal, and impeller can be serviced without breaking the casing joints, a scheduled overhaul of the Goulds 3196 i-FRAME on a live process line can often be completed within a single planned shutdown window rather than a multi-day pipe-fitting exercise.

Technical support from Seven Star LLC for the Goulds 3196 i-FRAME covers pump selection, i-ALERT sensor configuration guidance, and review against the factory performance curve, giving plant engineers a documented baseline to compare against during future predictive-maintenance reviews, and ITT Goulds spare parts such as wear kits and mechanical seals are supplied on request. Field experience across GCC refineries also shows that consistent lubrication practice and correct coupling alignment have a larger effect on Goulds 3196 i-FRAME bearing life than any single design variable, which is why our commissioning checklist verifies both before a unit is handed over to operations, reducing the likelihood of an early unplanned bearing or seal failure on the Goulds 3196 i-FRAME once it enters continuous service.
