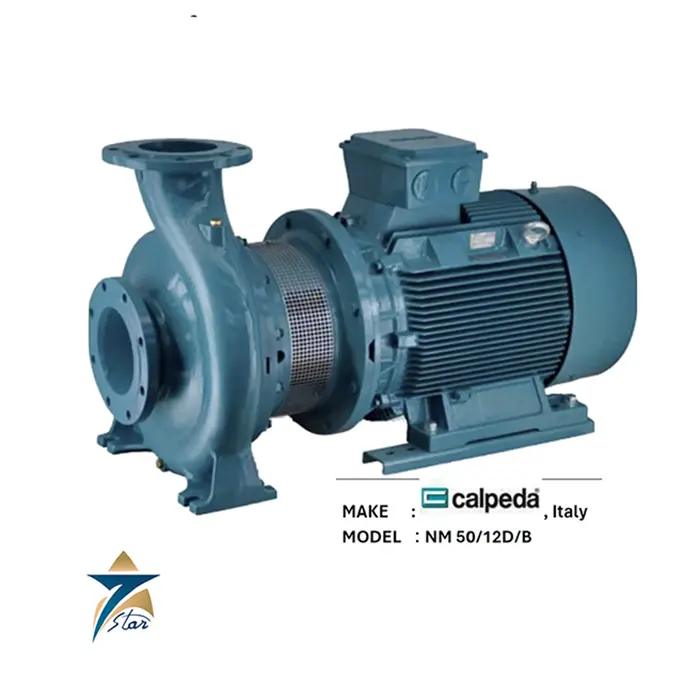

Calpeda NM 50/12D/B Centrifugal Pump
Overview:
The Calpeda NM 50/12D/B represents a cornerstone in reliable industrial fluid management. Designed as a close-coupled centrifugal pump with standardized flanged connections, this unit is engineered to deliver consistent hydraulic performance in demanding commercial and heavy-industrial environments. In the rapidly expanding infrastructure and manufacturing sectors of Oman and the wider Middle East, efficient water circulation is vital for thermal management and process continuity. Seven Star LLC supplies the NM 50/12D/B to engineering firms and facility managers requiring a highly dependable pumping solution for chilled water networks, cooling towers, and centralized heating systems. By integrating this Calpeda pump into a fluid network, engineers can achieve optimal flow rates while minimizing energy consumption and mechanical wear over extended operational lifecycles.
Operational Logic and Hydraulic Performance
The operational logic of the Calpeda NM 50/12D/B relies on advanced centrifugal hydrodynamics. Driven by a robust two-pole induction motor operating at approximately 2900 RPM, the pump utilizes a precisely balanced impeller to convert rotational kinetic energy into fluid pressure and flow. This mechanism is optimized for handling clean liquids—specifically those without abrasive particles or aggressive chemical properties that could compromise the pump materials. The “NM” series is specifically designed with a flat performance curve, which means the pump maintains stable pressure outputs even as flow demands fluctuate within the network. This hydraulic stability is critical in closed-loop HVAC systems and boiler feed applications, where sudden pressure drops can lead to system inefficiencies or localized thermal failures.
Engineering Design and Mechanical Construction
Mechanical durability is the defining engineering characteristic of the Calpeda NM 50/12D/B. The pump features a close-coupled architecture, meaning the pump casing and the electric motor are integrated into a single, compact unit with a shared heavy-duty shaft. This design eliminates the need for complex baseplates and flexible couplings, thereby reducing alignment issues and minimizing the overall installation footprint in crowded mechanical rooms. The pump casing and lantern bracket are constructed from high-grade cast iron (with bronze variants typically indicated by the /B suffix for enhanced corrosion resistance). It utilizes standard EN 1092-2 flanged connections, specifically featuring a DN 50 discharge port. Furthermore, the unit is equipped with a high-reliability mechanical seal composed of carbon, ceramic, and NBR, ensuring leak-free operation even under high-pressure conditions up to 10 bar.
Key Features and Technical Advantages
The Calpeda NM 50/12D/B offers a comprehensive suite of technical advantages tailored for the B2B automation and fluid control sector. One of its most significant features is the “back pull-out” design. This allows maintenance teams to extract the motor, lantern bracket, and impeller for inspection or repair without disconnecting the pump casing from the pipeline, dramatically reducing maintenance downtime. The integrated electric motor is designed for continuous duty (S1) and features high-efficiency copper windings that reduce thermal losses. The pump also boasts a broad operating temperature range, capable of handling liquids from -10°C up to +90°C, making it universally adaptable to both chilled water loops and hot water circulation systems prevalent in Middle Eastern industrial facilities.
Industrial Applications across the Middle East
Seven Star LLC facilitates the deployment of the Calpeda NM 50/12D/B centrifugal pump across numerous high-stakes industrial and commercial sectors:
-
HVAC and Chilled Water Systems: Providing continuous circulation for district cooling plants and large-scale commercial air conditioning networks in Oman.
-
Cooling Towers and Heat Exchangers: Ensuring optimal thermal transfer in power generation and petrochemical refining processes.
-
Industrial Process Water: Supplying clean water for manufacturing processes, parts washing, and assembly line cooling.
-
Agricultural and Landscape Irrigation: Delivering high-volume water transfer for modern farming and municipal landscaping projects.
-
Pressure Boosting Systems: Acting as a reliable primary or booster pump in multi-pump sets for high-rise building water supply.
Technical Specifications Table
| Specification | Technical Data |
| Pump Type | Close-Coupled Centrifugal Pump |
| Connection Standard | Flanged (EN 1092-2) |
| Discharge Port Diameter | DN 50 |
| Motor Type | 2-Pole Induction, 3-Phase |
| Operating Speed | 2900 RPM (50Hz) |
| Operating Voltage | 400V / 690V |
| Liquid Temperature Range | -10°C to +90°C |
| Maximum Operating Pressure | 10 bar (PN10) |
| Mechanical Seal Material | Carbon / Ceramic / NBR |
| Motor Protection Rating | IP 54 |
Request a Quote for Calpeda NM 50/12D/B Centrifugal Pump
Seven Star LLC is a reliable supplier of high-performance industrial fluid control and pumping solutions in Oman and the GCC. For a formal B2B quotation, hydraulic performance curves, or to request the official technical datasheet for the Calpeda NM 50/12D/B Centrifugal Pump, contact our engineering sales department today.
Reading the Calpeda NM Model Code
When replacing an existing pump, read the full code from the motor nameplate and pump label rather than relying on the series name alone. In the Calpeda naming style, “NM” identifies the close-coupled series, “50” the DN 50 discharge, and the following number and letters the impeller size and version. The suffix identifies the materials and version, so it should be matched exactly. Also note the rated flow and head, the motor power, the voltage and the serial number. Where the plant still has the original duty point from the design data, include it so the pump can be checked against the performance curve.
Installation and Commissioning
- Support suction and discharge piping independently so pipe loads are not carried by the pump flanges.
- Keep the suction line short and straight, with an eccentric reducer (flat side up) where the pipe size changes, to avoid air pockets.
- Fit isolation valves on both sides, and a check valve on the discharge where backflow is possible.
- Fill and vent the casing fully before starting; the mechanical seal must never run dry.
- Check the direction of rotation with a short bump start, then confirm current draw on each phase against the nameplate.
Start with the discharge valve partly open and bring the pump to its duty point while watching pressure and motor current.
Maintenance and Troubleshooting
Routine Checks
Check for seal leakage, unusual noise and vibration, and motor temperature on a regular schedule. Keep the motor fan cover clean, especially in dusty plant rooms, as poor cooling shortens winding life in hot climates.
Common Faults
- Low flow or pressure: check for air in the casing, a closed or partly blocked suction strainer, or reverse rotation.
- Noise like gravel in the pump: often cavitation; check suction conditions and available NPSH.
- Seal leaking soon after start: the seal may have run dry during commissioning.
- Motor tripping: the pump may be running far to the right of its curve because of low system resistance.
Sourcing Through Seven Star LLC
Send Seven Star LLC the nameplate details or your duty point, and we will confirm the correct NM model and reply with a quotation and lead time for the pump or spare seals and impellers.
Related Products
Calpeda NM series pumps
The NM series are single-stage end-suction pumps with flanged ports, built close-coupled so that pump and electric motor share one shaft and no separate coupling or baseplate alignment is needed. In the designation, the first number is the nominal discharge size (50 mm here) and the second relates to the nominal impeller size. The letters that follow distinguish the impeller trim and motor rating, which is why NM 50/12D and NM 50/12F are different duty points on the same casing. These pumps handle clean water and similar non-aggressive liquids.Ordering Calpeda pumps: what we need
Send the complete model from the nameplate, including every letter after the slash, with the motor voltage, frequency and power. Frequency matters: a 50 Hz and a 60 Hz pump of the same size are not interchangeable. For a new selection, give flow, head, liquid and temperature. For spares such as mechanical seals or impellers, add the serial or date code. We supply across the GCC.Browse Calpeda products by category: Pumps.
