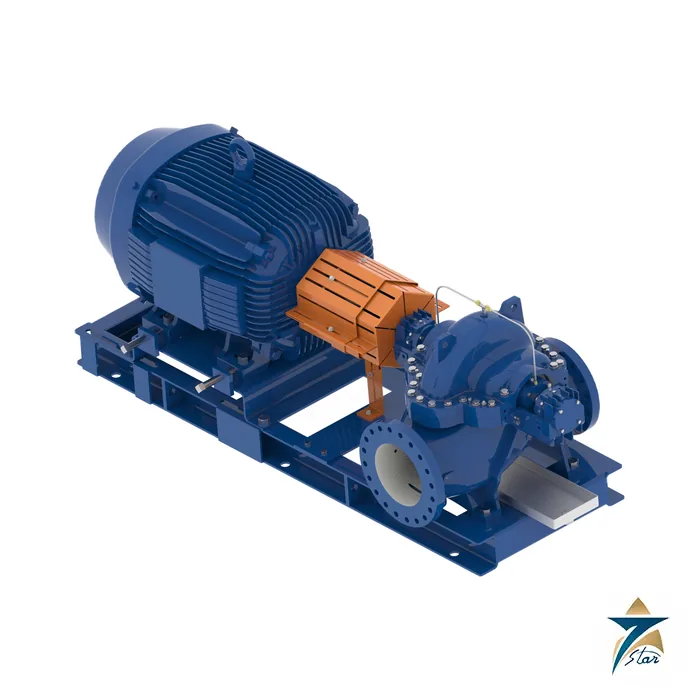

Xylem Lowara e-XC Double-Suction Split-Case Pump

A single-stage double-suction split-case pump for oil and gas, power and general industry

The Xylem Lowara e-XC is a configurable, single-stage, horizontal split-case pump with a double-suction impeller. Xylem positions it for industrial applications including oil and gas, power generation, general industry and mining, with extensive flow and head coverage and a common in-line configuration that simplifies installation of new and retrofit pumping systems. The brochure states that it replaces the legacy AC Series 8100, 8300 and 9100 pumps, and that Xylem’s AC Custom range is available for still larger applications.

The brochure lists 142 sizes in 50 Hz and 60 Hz, discharge sizes up to 800 mm, nominal pressure of 10/16 bar (up to 25 and 40 bar on some sizes) and a temperature range of -20 C to 120 C. Because the maximum flow and head figures in the brochure are printed in inconsistent units, take them from the Xylem selection software or the curves for the specific size rather than from this page.

Technical specifications

Materials of construction

The brochure lists the materials as the table above shows: the standard configuration has a cast iron casing and stainless steel impeller, while duplex and super duplex are offered for seawater and produced water duty. Bearings, bolts and plugs are steel, and a protective coupling guard is part of the listed construction.

Selection and installation notes

A split-case pump is chosen for large flows at moderate head with good efficiency and easy maintenance: the casing top half can be lifted without disturbing the piping. For seawater, produced water or brackish water select duplex or super duplex materials, and for fluids with solvents or oil check the elastomers and the mechanical seal configuration (MR1, MR2, MR5 or MR7) against the liquid. Pumps of this size are normally supplied as a package with motor and baseplate, so confirm the motor frame, coupling, base, and seal flush plan at enquiry. The brochure refers to the Xylem Xylect selection software for configuring size, model and materials.

For a vertical multistage alternative from the same Lowara family see the Xylem Lowara intelligent pump range, and for a split-case design from another manufacturer the Bell & Gossett VSX double-suction split-case pump.

How the Lowara e-XC works

Liquid enters the double-suction impeller from both sides at once. The impeller adds energy to the liquid and the split casing guides it to the discharge. Feeding both sides of the impeller balances the axial forces on the shaft.

Where the e-XC is used

• Water intake and transfer
• Pressure boosting
• Process cooling and heating
• Produced water transfer
• Boiler feed booster duty

Selection checklist for the e-XC

• Flow and head
• Liquid type
• Liquid temperature
• Nominal pressure
• Shaft sealing choice
• Motor frame size
• Monitoring sensors
• Mains frequency

Installation, commissioning and maintenance notes for the e-XC

Set the pump on a level base and align the motor with the jacking screws. Connect the suction and discharge pipes without strain on the casing. Check the seal and the bearings at regular intervals.

Requesting a quotation for the Xylem Lowara e-XC

Please send the flow, the head and the liquid data needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

e-XC pump type

It is a single-stage split-case pump.

e-XC maker

It is made by Xylem under the Lowara brand.

e-XC impeller

It has a double-suction impeller.

e-XC orientation

The pump is horizontal.

e-XC configuration

A common in-line configuration simplifies installation.

e-XC projects

It suits new and retrofit pumping systems.

e-XC industries

It serves oil and gas, power generation, general industry and mining.

e-XC sizes

The range has 142 sizes.

e-XC frequency

Sizes are available for 50 Hz and 60 Hz.

e-XC discharge size

The discharge size reaches 800 mm.

e-XC nominal pressure

Nominal pressure is 10 or 16 bar.

e-XC higher pressure

Some sizes reach 25 and 40 bar.

e-XC temperature

The temperature range is minus 20 to plus 120 degrees C.

e-XC shaft sealing

An MR1 or MR2 mechanical seal with a shaft sleeve is standard.

e-XC packing option

Packing is optional.

e-XC cartridge seals

MR5 and MR7 cartridge mechanical seals are available.

e-XC alignment

Eight standard jacking screws make motor alignment easier.

e-XC shaft

A shorter shaft supports longer bearing life.

e-XC monitoring

Optional temperature and vibration sensors fit on the bearing bracket.

e-XC fluids

Fluids include potable water, process water, seawater and brackish water.

e-XC other fluids

It also handles groundwater, gray water and heat transfer fluids.

e-XC building use

It serves industrial building cooling and heating.

Pump records for the e-XC

Record the flow, the pressure and the date of each check.

Choosing the right e-XC size

Choose the size from the curves at the duty point.

Documents and quotation

The Xylem eXC single stage, double suction centrifugal pump brochure (4 pages, EN, copyright 2019) lists the technical overview, materials and features is attached to this page and is the manufacturer’s own document, not a Seven Star summary.

Before ordering confirm the size, flow and head, pump speed and frequency, liquid and temperature, material class, seal type, motor and baseplate; the brochure is a general overview and the pump curve for the selected size governs. Seven Star LLC, an independent supplier in Muscat, quotes the Lowara e-XC against your duty point and delivery requirement; send the document tag, flow, head and liquid so the right size can be confirmed before an offer is issued.
