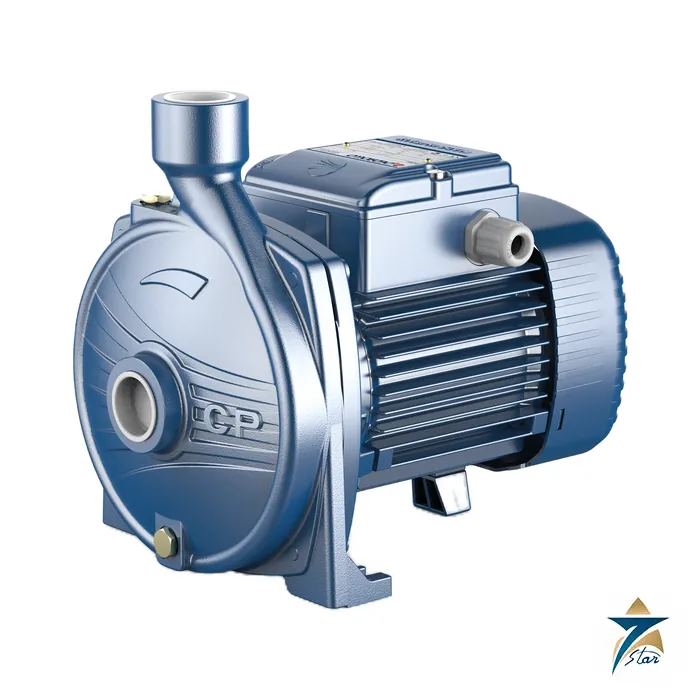

Pedrollo CP Close-Coupled Centrifugal Pump 0.25-2.2 kW

Close-coupled centrifugal pump for domestic, civil and light commercial water duties

The Pedrollo CP is a single-stage close-coupled centrifugal pump for clean water and for liquids that will not damage the pump components. Pedrollo lists it for domestic and civil use: distributing water with small to medium pressure tanks, transferring fluids and watering orchards and gardens. The 50 Hz datasheet covers nine models from the CP 100 (0.25 kW) to the CP 200 (2.2 kW), with flow up to 160 l/min (9.6 m3/h) and head up to 56 m.

Each model is offered in a single-phase version (CPm, 230 V, 50 Hz) and a three-phase version (CP, 230/400 V, 50 Hz). The stainless steel AISI 304 impeller carries a ten-year guarantee according to the datasheet, and the CPm 158 is covered by a registered trademark and a registered community model, which Pedrollo notes on the datasheet.

Technical specifications

Models, power ratings and ports

Head values are the first point of the published performance table at the lowest listed flow; the pump delivers progressively less head as flow rises, so confirm the duty point on the curve. Weights are for the three-phase version; the single-phase CPm is slightly heavier on the larger sizes. A CP 170M variant is also listed with a flatter curve.

Selection and installation notes

Specify a CP where the liquid is clean and the head is modest. For solids in suspension or untreated surface water an open-impeller design with wider passages is more appropriate than a closed-impeller pump such as this one; the pumps category lists alternatives. Keep suction lift within the 7 m manometric limit and short, with the suction line rising continuously to the pump to avoid air pockets, and protect the motor with an overload device sized to the nameplate current. The datasheet gives absorbed current for each model, for example 1.9 A for the CPm 100 and 13.0 A for the CPm 200 on single-phase supply.

Optional items listed by Pedrollo include alternative mechanical seals, 60 Hz and other voltages. For flanged end-suction duty at larger flows, compare the Grundfos NB end-suction pump.

How the Pedrollo CP works

The motor shaft carries the impeller directly, so the pump and motor form one compact unit. Water enters at the centre of the impeller and is thrown outward, which raises its pressure. The liquid leaves through the delivery port into the pipe.

Where the Pedrollo CP is used

• Domestic water supply
• Distribution with small to medium pressure tanks
• Transfer of fluids
• Watering orchards and gardens
• Civil and light commercial duties

Selection checklist for the Pedrollo CP

• Flow rate
• Head
• Motor power
• Single or three-phase supply
• Suction lift
• Liquid temperature
• Working pressure
• Port size

Installation, commissioning and maintenance notes for the Pedrollo CP

Fix the pump on a firm base and keep the suction pipe short and airtight. Fill the pump body with water before starting. Check the seal, the pipe joints and the motor at regular intervals.

Requesting a quotation for the Pedrollo CP

Please send the flow, the head and the power supply needed. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

Pedrollo CP pump type

It is a single-stage close-coupled centrifugal pump.

Pedrollo CP liquids

It handles clean water and liquids that will not damage the pump parts.

Pedrollo CP model count

The 50 Hz datasheet covers nine models.

Pedrollo CP model range

Models run from the CP 100 to the CP 200.

Pedrollo CP motor power range

Motor power runs from 0.25 to 2.2 kW.

Pedrollo CP flow

Flow reaches 160 l/min, or 9.6 m3/h.

Pedrollo CP head

Head reaches 56 m.

Pedrollo CP single-phase version

The CPm version is single-phase at 230 V and 50 Hz.

Pedrollo CP three-phase version

The CP version is three-phase at 230/400 V and 50 Hz.

Pedrollo CP suction head

Manometric suction head reaches 7 m.

Pedrollo CP liquid temperature

Liquid temperature runs from minus 10 to plus 90 degrees C.

Pedrollo CP ambient temperature

Ambient temperature is up to 40 degrees C.

Pedrollo CP working pressure

Maximum working pressure is 6 bar for the CP 100 to CP 158.

Pedrollo CP higher pressure models

The CP 170, CP 190 and CP 200 allow 10 bar.

Pedrollo CP pump body

The body is cast iron with a cataphoresis treatment.

Pedrollo CP impeller

The impeller is stainless steel.

Pedrollo CP motor shaft

The motor shaft is stainless steel.

Pedrollo CP mechanical seal

The seal is ceramic, graphite and NBR.

Pedrollo CP seal sizes

Shaft sizes are 12 mm, 14 mm and 18 mm, depending on the model.

Pedrollo CP duty

It is rated for continuous running.

Pedrollo CP ports

The CP 100 has 1 in. inlet and outlet ports.

Pedrollo CP 100 power

The CP 100 has a 0.25 kW motor.

Pedrollo CP 130 power

The CP 130 has a 0.37 kW motor.

Pedrollo CP 150 power

The CP 150 has a 0.75 kW motor.

Pedrollo CP 100 weight

The three-phase CP 100 weighs 7.0 kg.

Pump records for the Pedrollo CP

Record the model, the supply type and the date of each seal inspection.

Choosing the right Pedrollo CP model

Choose the model from the flow and head the duty needs and the supply available.

Documents and quotation

The Pedrollo CP 0.25 to 2.2 kW datasheet (4 pages, EN, 50 Hz) gives the curves, absorbed current, dimensions and materials is attached to this page and is the manufacturer’s own document, not a Seven Star summary. The manual on the Pedrollo product page covers installation and use.

Before ordering confirm single- or three-phase supply, voltage and frequency, seal material for the liquid and whether IPX5 protection is needed. Seven Star LLC, an independent supplier in Muscat, quotes the Pedrollo CP against your duty point and delivery requirement; send the document tag, flow, head and liquid so the right size can be confirmed before an offer is issued.
