Brand: Pentair

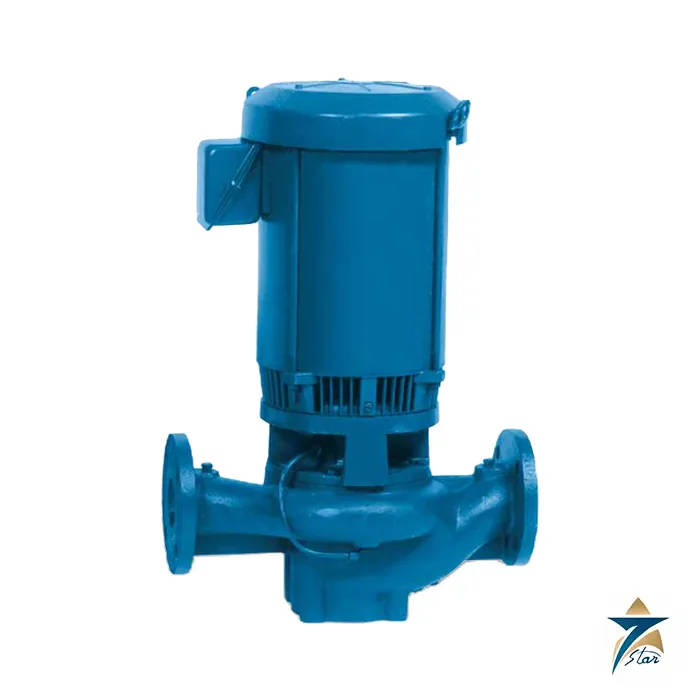

Pentair Aurora 382A Vertical Inline Centrifugal Pump
Description
A vertical inline pump that saves floor space in pipe line mounting
The Pentair Aurora 382A is a single-stage vertical inline close-coupled centrifugal pump of the Aurora 380 Series, designed for mounting directly in a pipe line with the suction and discharge nozzles on the same centreline, 180 degrees apart. Pentair notes that vertical pumps significantly reduce the space needed, so two pumps fit in the space of one, and that the motor and bracket assembly can be removed without disturbing the piping.
The suction branch of the 382A is a volute-type inlet that prerotates the liquid in the direction of impeller rotation, which Pentair says minimises pumping noise compared with short-radius inlets. Most parts other than the casing are interchangeable with the Aurora 340 and 360 Series, which helps with spares.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | Aurora 382A single-stage vertical inline pump, close coupled (380 Series) |
| Capacity | Up to 4,500 GPM (1,020 m3/h) |
| Head | Up to 370 ft (78 m) |
| Temperature | Up to 250 degF (120 degC) |
| Sizes | 31 sizes in the 380 Series |
| Standard features | Factory hydro test; carbon steel shaft; bronze shaft sleeve; casing wearing rings; bronze fitted construction; dynamically balanced cast impeller; 303 stainless steel mechanical seal with Buna-N, ceramic and carbon parts |
| Motor | Standard JM motor (10 to 60 hp); special TCZ motor above 60 hp; JP motor used with the optional split seal |
| Support | Support feet cast integrally with the casing on the 382A; optional pump base |
| Optional features | Pump base; all iron construction; 316 stainless steel shaft sleeve; split mechanical seal; impeller wearing ring(s); suction and discharge companion flanges; certified performance test data |
| Certification | Brochure cover shows certification to NSF/ANSI 372 |
Features that matter in service
A relief line from the seal faces to the pump discharge flushes and vents the seal chamber. The bronze shaft sleeve runs the entire length of the seal box and, with O-ring sealed sleeve and impeller screw, removes the need for a costlier stainless shaft. The casing has a back pull-out arrangement, and case wearing rings prevent casing wear and are inexpensive to replace.
What to confirm before ordering
Confirm the pump size code and the duty point read from the Aurora performance curves, liquid and temperature, motor frame and voltage, flange rating and whether a base, split seal or all-iron construction is needed. See also the Pentair Aurora 3800 Series end suction pump and other pumps.
Documents and quotation
The attached Pentair brochure for the Aurora 380 Series gives the features, range chart and close-coupled engineering and dimension details. Send the size, duty point and quantity with your enquiry.
Datasheets & Documents
- Brochure Pentair Aurora 380 Series vertical inline pump brochure (EN) Download
Reviews (0)
About brand
Aurora is a Pentair brand of centrifugal pumps for commercial, municipal and industrial service. Seven Star LLC lists the Pentair Aurora 3800 Series single-stage end suction centrifugal pump and supplies Aurora pumps and pump parts to building services contractors, utilities and industrial plants in Oman. Requests are handled by model, size and serial number.
Pentair Aurora 3800 Series pumps
The 3800 Series is a single-stage end suction design: liquid enters axially and leaves through a radial discharge, with one impeller on the shaft. Pentair builds it as the close-coupled Model 3801 and the flexible-coupled Model 3804, and lists it for HVAC, chilled and hot water, pressure boosting, municipal and industrial service. The same casing size can be built with different impeller diameters and motors, so the size alone does not define the pump.
Ordering Aurora pumps and parts: what we need
Send the model, size and serial number from the pump nameplate, plus the impeller diameter if it is stamped there. For a new pump, give flow, total head, liquid, temperature, suction conditions, motor voltage and frequency. For parts, name the items needed, such as mechanical seal, impeller, shaft sleeve or wear rings. We accept inquiries from across the GCC.
Browse Pentair products by category: Pumps.
Related products
Frequently Asked Questions
What is the Aurora 382A?
A single-stage vertical inline close-coupled centrifugal pump from the Aurora 380 Series.
What are the capacity, head and temperature limits?
Up to 4,500 GPM (1,020 m3/h), 370 ft (78 m) head and 250 degF (120 degC).
How is the pump piped?
Directly in the pipe line, with suction and discharge nozzles on the same centreline, 180 degrees apart.
What seal does it have as standard?
A 303 stainless steel mechanical seal with Buna-N, ceramic and carbon parts, with a relief line to discharge.
Can the pump stand on the floor?
Yes, support feet are cast into the 382A casing, and an optional base is available.
