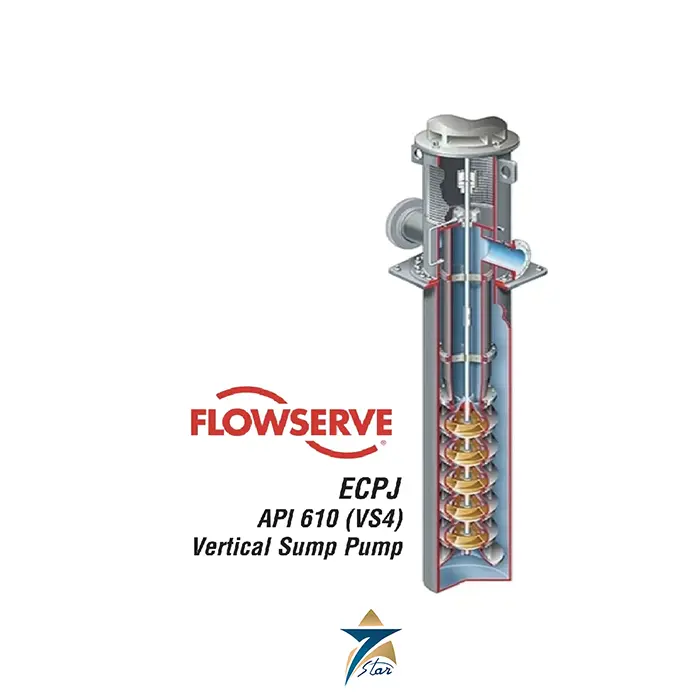

Flowserve ECPJ 25-200-R API 610 VS4 Vertical Sump Pump

Overview:

The Flowserve ECPJ 25-200-R is an industrial-grade, vertically suspended, single-casing volute pump strictly conforming to the rigorous API 610 (VS4) standard. As a critical asset in heavy industrial fluid management, this vertical sump pump is engineered to handle highly demanding applications involving corrosive, abrasive, or viscous fluids. In the hydrocarbon processing and petrochemical sectors of Oman and the wider Middle East, the safe and continuous extraction of fluids from deep underground sumps is a strict environmental and operational requirement. Seven Star LLC supplies the Flowserve ECPJ 25-200-R to refineries, chemical plants, and power generation facilities requiring a robust, line-shaft driven pumping solution. By deploying this highly engineered API 610 VS4 pump, plant operators can ensure the reliable transfer of closed drain fluids, oily water, and chemical slops while adhering to the most stringent international safety mandates.

Operational Logic and VS4 Hydraulic Performance

The operational logic of the Flowserve ECPJ 25-200-R is based on advanced centrifugal hydrodynamics optimized for vertically suspended configurations. In the VS4 layout, the electric motor and thrust bearing assembly are mounted securely above the sump on a heavy-duty soleplate, while the hydraulic wet end (the casing and impeller) is submerged deep within the fluid. Rotational kinetic energy is transmitted from the motor down to the impeller via a precision-machined vertical line shaft. As the dynamically balanced impeller rotates, it accelerates the fluid, driving it up through a dedicated discharge column pipe to the surface. This physical separation of the drive mechanism from the pumped media isolates critical electrical and thrust-bearing components from corrosive sump fluids, drastically reducing the risk of catastrophic failure and ensuring highly stable hydraulic performance, even when handling heavy hydrocarbons or industrial slurries.

Engineering Design and Line Shaft Architecture

Mechanical integrity is the foundation of the Flowserve ECPJ 25-200-R vertical sump pump architecture. The “25-200-R” designation indicates specific hydraulic sizing parameters for the discharge port and impeller, optimized for targeted high-efficiency flow rates. The entire assembly is constructed to meet or exceed API 610 specifications, ensuring maximum structural rigidity. The heavy-walled column pipes and the discharge pipe are designed to withstand high pressure and severe mechanical vibrations during continuous duty. A critical engineering feature of this VS4 pump is its line shaft bearing system. Depending on the abrasiveness of the pumped fluid, these intermediate guide bearings can be lubricated directly by the process fluid or flushed continuously by an external clean liquid source. The pump also utilizes a highly rigid, spacer-type flexible coupling, allowing maintenance personnel to service the mechanical seals or upper bearings without needing to remove the heavy electric motor, significantly reducing maintenance downtime in Oman’s intense industrial environments.

Key Features and API 610 Compliance Advantages

The Flowserve ECPJ 25-200-R offers an exceptional array of technical advantages designed specifically for the heavy B2B fluid control sector. Its strict compliance with the API 610 (VS4) standard guarantees that casing thickness, bearing life, and vibration thresholds meet the absolute highest criteria of the global oil and gas industry. The pump features a robust upper thrust bearing housing that absorbs all hydraulic axial loads, protecting the standard electric motor bearings from stress. Furthermore, it supports a wide variety of API 682 mechanical seal arrangements within the surface-mounted seal chamber, ensuring zero fugitive emissions of hazardous hydrocarbon gases. Its modular construction allows for customized sump depths, enabling the pump shaft and column to be precisely tailored to the exact dimensions of existing underground tanks and drainage pits.

Industrial Applications across the Middle East

Seven Star LLC facilitates the supply of the Flowserve ECPJ 25-200-R for the most punishing fluid transfer applications across the GCC:

• Refinery Closed Drains: Safely extracting hazardous hydrocarbon slops, flare knock-out fluids, and leakage from underground collection sumps.

• Petrochemical Waste Management: Pumping aggressive chemical runoff and oily water from designated containment pits.

• Power Generation Facilities: Handling cooling tower blowdown and heavy wash-water sumps in large-scale Oman power plants.

• Desalination Pre-Treatment: Transferring heavy brine and backwash fluids in critical municipal water infrastructure.

• Heavy Manufacturing: Managing industrial wastewater and abrasive runoff in steel mills and cement processing plants.

Technical Specifications Table

Impeller Options and Specialized Variants

The ECPJ platform is offered in several hydraulic configurations to match the fluid handled: ECPJ-R with a closed impeller for general clean and moderately abrasive service, ECPJ-O with a semi-open impeller for fluids carrying solids, ECPJ-F with a free-flow (vortex-style) impeller for stringy or highly viscous media, and ECPJ-L with a Barske-type impeller for low-flow, high-head duty. A steam-jacketed ECPJ-H variant maintains elevated temperature in services such as molten or liquid sulfur handling, where the pumped fluid must be kept above its solidification point, while an ECPJ-I inducer-equipped variant is available for applications with low net positive suction head available (NPSHa), reducing the risk of cavitation when suction conditions are marginal.

The pump range covers 45 available casing sizes, with column and shaft assemblies that can be configured to a setting length of up to 8 meters (26 feet) to match deep underground sumps and collection pits. Materials of construction extend beyond standard carbon and stainless steel to NACE MR0175 and NACE MR0103 compliant alloys for sour and wet H2S service, plus specialty materials such as titanium for highly corrosive streams, and the pump is available with ATEX Zone 0/Category 1 certification for use directly inside vapor-tight sump enclosures in classified hydrocarbon areas.

ECPJ Operating Envelope and Configuration Codes

Flowserve publishes the following limits for the ECPJ range as a whole: flows to 1000 m³/h (4400 gpm), heads to 150 m (500 ft), temperatures from -46 °C (-51 °F) to 350 °C (660 °F) and pressures to 20 bar (285 psi). The range is a single-stage vertical lineshaft design built on a modular system of 45 sizes with setting lengths up to 8 m (26 ft). These are range limits, not the rating of one pump size; the duty point of an individual ECPJ 25-200-R has to be confirmed against Flowserve selection data for the specific order.

The suffix letter identifies the configuration in Flowserve's listing: R for closed impeller, O for semi-open impeller, F for free-flow impeller, L for Barske impeller, H for the steam-heated version and I for the inducer version. The ECPJ 25-200-R therefore belongs to the closed-impeller configuration. Flowserve also states that the range complies with ISO 13709/API 610 (VS4) and with ISO 21049/API 682 for seal chambers and seal flush plans, and that a steam-jacketed version is offered where a high temperature must be maintained, such as liquid sulfur service.

Flowserve ECPJ 25-200-R Pump FAQ

What type of pump is the Flowserve ECPJ 25-200-R?

A vertically suspended, single-casing volute, line-shaft sump pump built to API 610 (VS4).

How does the VS4 layout protect the motor?

The motor and thrust bearing assembly sit above the sump while the casing and impeller are submerged, so electrical and thrust-bearing components are isolated from the pumped fluid. A robust upper thrust bearing housing absorbs the hydraulic axial loads.

How are the line shaft bearings lubricated?

Depending on how abrasive the fluid is, the intermediate guide bearings are lubricated directly by the process fluid or flushed continuously by an external clean liquid source.

Can seals be serviced without removing the motor?

Yes. A spacer-type flexible coupling lets maintenance personnel service the mechanical seals or upper bearings without removing the electric motor. The seal chamber supports a variety of API 682 mechanical seal arrangements.

Where is it used?

Refinery closed drains, petrochemical waste and oily water pits, power plant cooling tower blowdown and wash-water sumps, desalination brine and backwash transfer, and industrial wastewater in steel and cement plants. Sump depth can be tailored through the modular column construction.

Also available: KSB Etanorm Single-Stage Volute Casing Centrifugal Pump · KRACHT Drive Technology Series

Request a Quote for Flowserve ECPJ 25-200-R API 610 VS4 Vertical Sump Pump

Seven Star LLC is a reliable supplier of heavy-duty industrial pumps and fluid management systems in Oman and the GCC. For a formal B2B quotation, hydraulic sizing assistance, or to request the official technical datasheet for the Flowserve ECPJ 25-200-R API 610 VS4 Vertical Sump Pump, contact our engineering sales department today.
