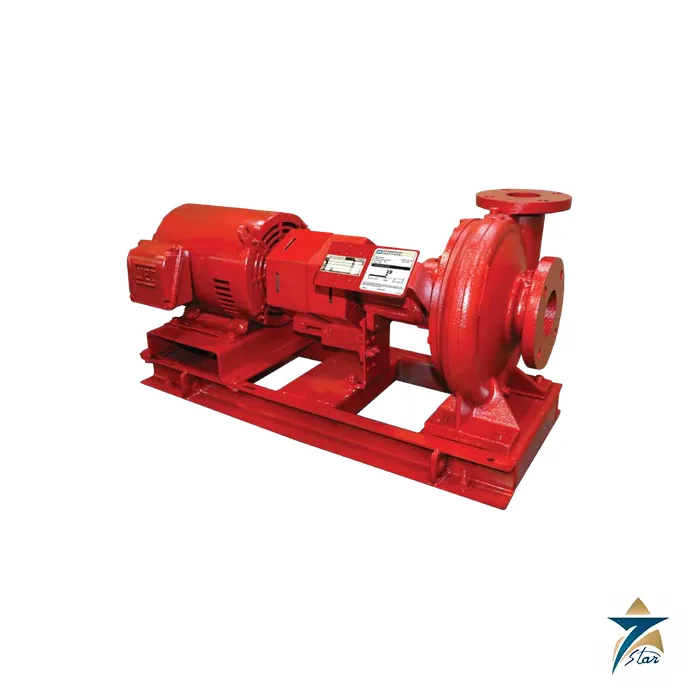

Bell & Gossett Series e-1510 Base-Mounted End Suction Pump

Overview

The Bell & Gossett e-1510 is a base-mounted, flexible coupled, single stage end suction centrifugal pump designed for HVAC and plumbing systems. Bell & Gossett, a Xylem brand, states that the Series e-1510 provides the highest overall efficiency in the end suction market, with the largest efficiency island among comparable pumps. That wide band of high efficiency reduces electricity consumption, improves overall system performance and lowers life cycle cost, and the series is available in 26 sizes with configuration options to match a broad range of flows and heads.

Seven Star LLC supplies the Bell & Gossett e-1510 on request to mechanical contractors, consultants and facility operators across Oman and the GCC, with engineering support in Muscat. In a region where chilled water pumps run almost year-round, pump efficiency has a direct effect on the electricity bill, which is why the e-1510 is a frequent choice for chiller plants, cooling towers and district cooling networks.

Operating Principle

Like every end suction centrifugal pump, the Bell & Gossett e-1510 draws liquid axially into the eye of a rotating impeller, accelerates it outward and converts that velocity into pressure in the volute casing before it leaves through the discharge nozzle at the top. What distinguishes the e-1510 is how the hydraulics were developed: Bell & Gossett used computational fluid dynamics together with long experience of hydronic applications to shape impellers and volutes so that efficiency stays high across a wide range of operating conditions, not only at a single best efficiency point.

The Bell & Gossett e-1510 impellers are precision cast in 304 stainless steel, which gives smooth surface finishes and tight dimensional tolerances for higher efficiency, and stainless steel is more resilient than bronze, so efficiency is maintained for longer and a wider range of fluids can be handled. Inside the seal chamber, the internally self-flushing mechanical seal passes two and a half to three times more flow over the seal faces than a conventional stuffing box design, improving lubrication, heat dissipation and debris removal without external flush tubing.

Engineering Design of the Bell & Gossett e-1510

Bell & Gossett lists seven standard features for the Bell & Gossett e-1510. The true back pullout design lets the rotating assembly be removed while piping and motor stay undisturbed. The volute has an integrally cast solid foot directly beneath it, so piping weight and thermal expansion do not distort the volute and load the bearings, shaft and seal. A centre drop-out spacer coupling allows the bearing frame and rotating element to be removed without breaking pump-to-motor alignment, and an OSHA 1910.219 compliant coupling guard with slotted viewing windows is fitted to every pump.

Each Bell & Gossett e-1510 is mounted on a heavy duty fabricated baseplate with a saddle assembly, full seam welds, closed ends and an open top that gives easy access for grouting. The volute is Class 30 cast iron (ASTM A48 30B) or ductile iron, the shaft sleeve is 304 stainless steel, and the impeller is balanced to ISO 1940-1 grade G6.3. Gauge tappings are provided at the suction and discharge nozzles together with vent and drain tappings, and each pump is factory hydrostatically tested to Hydraulic Institute standards in an ISO 9001 approved facility.

Key Features

The main reasons engineers specify the Bell & Gossett e-1510 are summarised below:

• CFD-optimised hydraulics give a large efficiency island and lower energy use across a wide range of duty points.
• Twenty-six pump sizes with 1750 and 3500 rpm performance curves cover small zone loops up to large chiller plants.
• Precision cast 304 stainless steel impellers keep their efficiency longer than bronze impellers.
• The internally self-flushing mechanical seal needs no external flush line for standard duties.
• True back pullout and a centre drop-out spacer coupling allow service without disturbing piping, motor wiring or alignment.
• The solid-foot mounted volute resists piping loads and thermal expansion that would otherwise damage bearings and seals.
• A heavy duty fabricated baseplate and OSHA-compliant coupling guard are standard on every unit.
• Options include 250 psi working pressure, stainless steel wear ring and shaft, epoxy coating and ITSC or IT variable speed drives.

Industrial Applications

Bell & Gossett targets the Series e-1510 at chilled water, commercial HVAC, hydronic heating and cooling, cooling towers and industrial uses. In Oman typical installations include primary and secondary chilled water pumps in hotels, malls and hospitals in Muscat, condenser water pumps serving cooling towers, district cooling plants in new residential and commercial developments, and process cooling loops in factories within the Sohar and Salalah free zones. The Bell & Gossett e-1510 is also commonly packaged with a Triple Duty valve and Suction Diffuser Plus to form a complete end suction pump system.

Where variable flow is required, the e-1510 can be supplied with an Integrated Technologic Sensorless Control (ITSC) or IT drive, so the pump speed follows the system demand. Seven Star LLC supplies the Bell & Gossett e-1510 with matching accessories and spare parts such as seal kits and impellers, and our engineering team in Muscat helps contractors across the GCC confirm the size, impeller trim and seal option against the project duty point.

Technical Specifications

The Bell & Gossett e-1510 data below is drawn from the Bell & Gossett B-313F brochure and typical specification.

Compare with the close-coupled Bell & Gossett Series e-1531 centrifugal pump, the Grundfos NB single-stage end-suction pump and the KSB Etanorm volute casing pump.

How to Order

To order the Bell & Gossett e-1510, send Seven Star LLC a formal RFQ with the pump size or the required flow, head, fluid and motor supply, and our engineering team will confirm the selection and options. We provide supply on request and engineering support in Muscat for customers in Oman and the GCC. Download the Bell & Gossett e-1510 brochure from this page, and contact our pumps and instrumentation division for seal kits, spare parts and delivery schedules.
