Brand: Evident

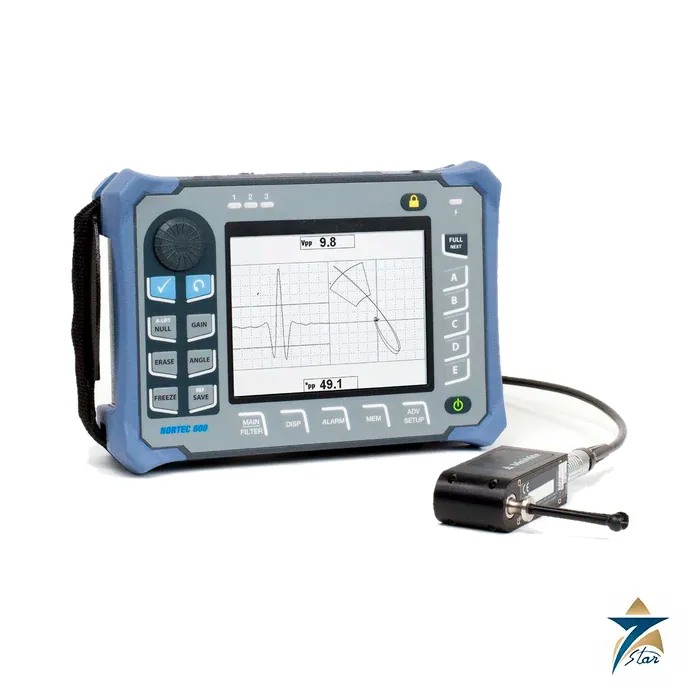

Evident NORTEC 600 Eddy Current Flaw Detector
Description
A field-ready eddy current flaw detector for surface cracks, weld and tube inspection
The Evident NORTEC 600 is a portable eddy current flaw detector designed to meet EN 15548 and IP66, with a 5.7 inch VGA display, 10 Hz to 12 MHz frequency range and up to 10 hours of battery life. It weighs 1.7 kg (3.7 lb) with its lithium-ion battery and is offered in four models: basic, conductivity (C), rotary scanner (S) and dual frequency (D). Evident lists surface crack inspection, weld inspection, wheel inspection, bolt hole inspection with rotary scanners, conductivity and coating thickness measurement, and heat exchanger tube inspection with automatic mixing on the dual-frequency model.
Technical specifications
| Parameter | Specification |
|---|---|
| Dimensions | 236 x 167 x 70 mm (9.3 x 6.57 x 2.76 in.) |
| Weight | 1.7 kg (3.7 lb) with lithium-ion battery |
| Display | Full VGA 640 x 480 colour transflective LCD, 117.4 x 88.7 mm (5.76 in. diagonal); 8 colour schemes; full-screen mode |
| Frequency range | 10 Hz to 12 MHz |
| Gain | 0 to 100 dB in 0.1 or 1 dB steps |
| Probe drive | Low, medium, high (2 V, 5 V, 8 V) |
| Probe connectors | 16-pin LEMO and BNC with automatic internal balancing for absolute probes; POWERLINK probe recognition |
| Filters | Low-pass 10 to 2000 Hz and wide band; high-pass figure 6 or figure 8; continuous null 0.2, 0.5, 1.0 Hz |
| Measurement rate | 6 kHz |
| Data storage | 500 files with onboard preview; NORTEC PC software with USB |
| Inputs and outputs | USB 2.0, VGA analog output, 15-pin I/O with 6 analog outputs and 3 alarm outputs |
| Battery | Single lithium-ion, up to 10 h standard operation; optional 8-cell AA holder |
| Operating temperature | -10 to 50 C (14 to 122 F) |
| Conductivity | 60 kHz or 480 kHz; 0.9 to 110 % IACS or 0.5 to 64 MS/m; +/-0.5 % IACS from 0.9 to 62 % IACS |
| Scanner compatibility | MiniMite, Spitfire 2000, RA-2000 and PS-5 and other scanners, 120 to 3,000 RPM |
| Standards and directives | EN 15548, CE, WEEE, FCC, IC, RoHS (China), RCM; designed to meet IP66 |
Models
| Model | Version | Added capability |
|---|---|---|
| N600 | Basic | Core eddy current functions |
| N600C | Conductivity | Adds conductivity and coating thickness measurement |
| N600S | Scanner | Adds rotary scanner support |
| N600D | Dual frequency | Adds dual frequency, mixing and the all-in-one display |
The basic model includes signal calibration in Freeze mode, real-time readings, application selection presets and POWERLINK probe support. Standard inclusions listed by Evident are the hand strap, getting started manual, calibration certificate, rigid transport case, DC charger, lithium-ion battery, AA battery tray, USB cable, microSD card and NORTEC PC software; the conductivity models add a 19 mm 60 kHz conductivity probe, standards and shims.
Selection and use
Choose the model by the job: the basic unit for surface crack and weld work, the S model for bolt hole inspection with a rotary scanner, and the D model for heat exchanger tubing or other work that needs two frequencies and mixing. Check that existing probes and scanners are compatible, including legacy connectors via adaptors, and confirm the probe frequency range against the procedure. Options such as an alarm booster, chest harness and soft pouch are listed. Related instruments are listed under Handheld Flaw Detectors, including the Waygate Krautkramer USM 36.
Documents and quotation
The attached Evident brochure carries the basic specifications. Send the model letter, probes and scanners in use and the inspection procedure, and confirm product availability for your region before ordering.
Datasheets & Documents
- Datasheet Evident NORTEC 600 Eddy Current Flaw Detector Brochure with Specifications Download
Reviews (0)
About brand
Evident makes nondestructive testing, remote visual inspection and material analysis instruments, building on more than a century of Olympus heritage. Its inspection business joined Wabtec Corporation in 2025, and the Evident name is planned to transition to Wabtec Inspection Technologies in 2027. Seven Star LLC supplies Evident ultrasonic thickness gauges, flaw detectors, eddy current instruments and XRF analyzers to inspection teams in Oman and the GCC on inquiry.
Evident ultrasonic and eddy current instruments
The range includes handheld ultrasonic thickness gauges such as the 39DL PLUS and 45MG, EPOCH conventional flaw detectors, NORTEC eddy current flaw detectors and OmniScan phased array systems, together with a broad line of transducers, probes and accessories. Gauges for corrosion mapping and wall thickness checks sit alongside weld inspection instruments, so one manufacturer can cover several inspection methods on a refinery shutdown or a pipeline project.
Material analysis and visual inspection
Evident also lists Vanta handheld XRF analyzers for alloy identification and positive material identification, and IPLEX video borescopes for remote visual inspection of pipes, vessels and machinery. Specifying the correct model depends on the material, the thickness range, the code or procedure and the site conditions, and we check the order code against the manufacturer's documentation before quoting.
Related products
Frequently Asked Questions
What is the NORTEC 600 used for?
Eddy current inspection such as surface cracks, welds, wheels, bolt holes with rotary scanners, conductivity and coating thickness, and heat exchanger tubes.
What are the four models?
Basic N600, conductivity N600C, scanner N600S and dual frequency N600D.
What frequency range does it cover?
10 Hz to 12 MHz.
Which probe connectors does it have?
A 16-pin LEMO connector and a BNC connector with automatic internal balancing.
What standard does it meet?
Evident states EN 15548 compliance and a design to meet IP66.
