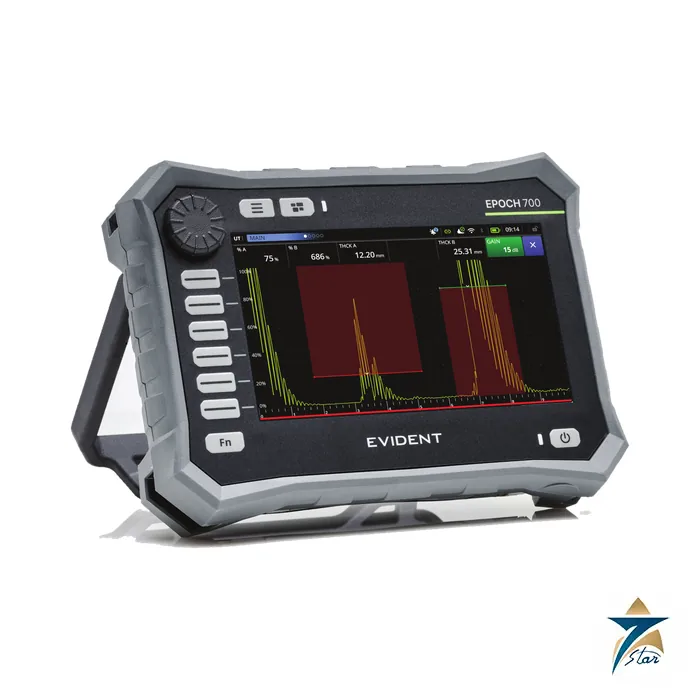

Evident EPOCH 700 Conventional Ultrasonic Flaw Detector

Name: Evident EPOCH 700 Ultrasonic Flaw Detector
Brand: Evident
SKU: EPOCH 700

Description

A touchscreen conventional flaw detector with 24-bit A-scan digitization

The Evident EPOCH 700 is a conventional ultrasonic flaw detector that Evident describes as an evolution of the EPOCH platform. It combines a 7 inch touchscreen with direct-access buttons and a dedicated adjustment knob, a PerfectSquare tunable square-wave pulser, more than twenty digital filter sets and 24-bit A-scan digitization that allows amplitude measurement up to 800 % of full screen height. It meets ISO 22232-1, has achieved EPRI PDI qualification for key nuclear inspection procedures according to the brochure, and is the first portable conventional UT instrument to fully support the open .nde file format.

Technical specifications

Parameter	Specification
Housing dimensions	230.7 x 166.9 x 71.9 mm (9.1 x 6.6 x 2.8 in.)
Weight	1.8 kg (3.98 lb) with lithium-ion battery
Display	7 inch TFT LCD, 154.2 x 85.9 mm (177.8 mm diagonal); touchscreen
Battery	600-BAT-L-2 lithium-ion; over 8 hours standard operation
Power input	24 VDC (60 W)
Storage	64 GB internal
Pulser	Tunable square wave 20 to 5,000 ns (100 kHz to 25 MHz); 100, 200, 300 or 400 V unipolar; damping 50 or 400 ohm
PRF	10 to 2000 Hz, single shot
Receiver	Digital high dynamic range; gain 0 to 110 dB; maximum input 20 V peak-to-peak; 24-bit digitization
Range	3.5 to 24,500 mm at 5,900 m/s (0.138 to 1,000 in.)
Velocity	635 to 15,240 m/s (0.0250 to 0.6000 in./us)
Gates	Two independent flaw gates and one interface gate
Test modes	Pulse echo, dual, through transmission
Sizing methods	Dynamic DAC/TCG (Standard, ASME 3, JIS, CNDAC, Custom), TCG table, DGS/AVG, AWS D1.1 and D1.5
Connectivity	Wi-Fi and Bluetooth; BNC and LEMO transducer connector options
Environment	IP65 enclosure; -10 to 50 C operating at 80 % RH; MIL-STD-810 shock and vibration tested
Compliance	ISO 22232-1; EPRI PDI qualified for key nuclear procedures (as stated by Evident)

Inspection workflow features

Part and Weld setup with integrated ray trace visualisation links A-scan data to the geometry, which helps avoid incorrect probe offset from the weld centreline, and a visual sizing method configurator previews the selected curve type. Onboard reporting removes the need for a PC, A-scan recording stores up to 30 seconds at 60 frames per second as .nde files, and wireless transfer sends reports directly from the instrument. Evident states that the mobile-style interface needs no retraining for EPOCH 650 users.

Standard package and selection

The standard package contains the instrument, charger and AC adapter, rechargeable lithium-ion battery, transport case, hand strap, USB memory stick with manuals, extra screen protector and safety leaflet. A spare battery and chest harness are listed as accessories. Choose BNC or LEMO connectors to match the probes in use, and confirm the ISO 22232-1 and any nuclear qualification requirements against your procedure. The brochure gives only basic specifications and refers to the full user manual for complete data. For a lower-cost conventional detector see the Evident EPOCH 650; other models are listed under Handheld Flaw Detectors, including the Waygate Krautkramer USM 100.

Documents and quotation

The attached Evident brochure carries the basic specifications. Send the connector type, procedure and any software needs with your inquiry, and request the full user manual from us if the complete specification is required.

Datasheets & Documents

Datasheet Evident EPOCH 700 Conventional Ultrasonic Flaw Detector Brochure Download
