Elcometer 108 Hydraulic Adhesion Tester
Description
Hydraulic adhesion tester for pipelines, tanks and curved surfaces

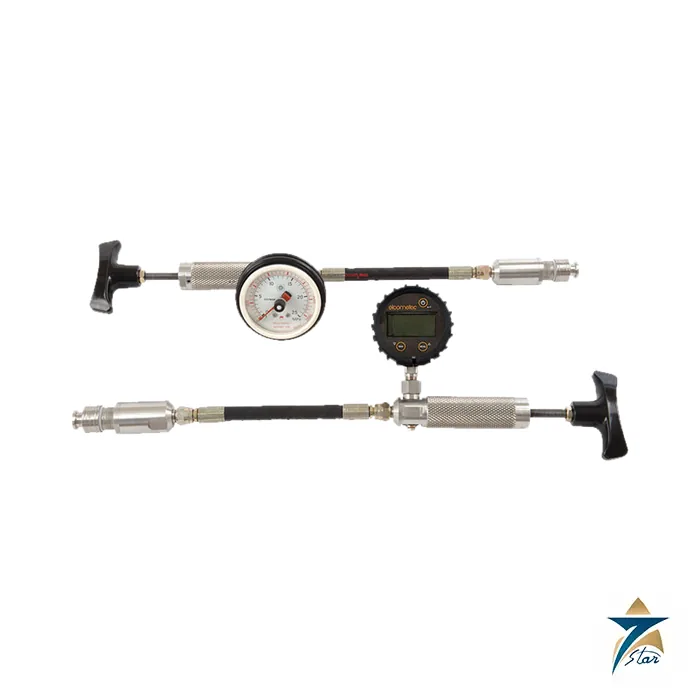

The Elcometer 108 is a hand-powered, portable Type III hydraulic adhesion tester. Instead of a mechanical lift it uses a hydraulic push-off principle, so tests can be made on flat or curved, concave and convex surfaces. Elcometer describes it as the ideal gauge for coatings on tanks and pipelines, including small-diameter pipe, where a range of curved dollies is available for specific curvature ranges. The stainless steel dollies are reusable.
It is supplied with either an analogue dial gauge (108/1) or a digital gauge (108/2). The digital version holds the maximum value reached, has a backlit display for dark areas, a rubber protective casing and switchable metric or imperial units.
Technical specifications
| Parameter | Specification |
|---|---|
| Ordering codes | F108—1D and F108—1C (analogue); F108—2D and F108—2C (digital); the C and D suffixes correspond to the US 110 V and UK 240 V / EUR 220 V columns of the datasheet |
| Models | Elcometer 108/1 analogue dial gauge; Elcometer 108/2 digital gauge |
| Scale range | 0 to 25 MPa (0 to 3600 psi), both gauges |
| Operating range | 2 to 18 MPa (290 to 2600 psi), both gauges |
| Scale resolution | Analogue 1 MPa (100 psi); digital 0.1 MPa (1 psi) |
| Accuracy | Analogue: +/-1 MPa on the metric scale, 150 psi on the imperial scale; digital: +/-3 % or 0.4 MPa (60 psi), whichever is greater |
| Standards listed | ASTM D 4541, ISO 16276-1, NF T30-606 |
| Flat dolly | 19.4 mm (0.76 in.) outside diameter, 3.7 mm (0.15 in.) inside diameter, 284 mm2 area |
| Packing list | Elcometer 108, ABS carry case, 5 flat dollies, 5 nylon plugs, cyanoacrylate adhesive, dolly cleaning tool, 2 x LR6 (AA) batteries (digital gauge only) and operating instructions |
| Calibration certificate | Available |
Accessories and curved-surface testing
The datasheet lists cyanoacrylate adhesive, standard flat dollies and dolly cleaning heating tongs in EUR 220 V / UK 240 V or US 110 V versions. Concave and convex dollies are available on request, so quote the pipe outside diameter or tank radius with your enquiry. Because the dollies are bonded with cyanoacrylate, the usual rules of adhesion testing apply: prepare the surface, let the adhesive cure and inspect the failure mode on the dolly face after the test.
What to confirm before ordering
Confirm the gauge type (analogue or digital), the mains voltage for the heating tongs, whether curved dollies are required and the specification being followed (ASTM D 4541 or ISO 16276-1). For flat surfaces with a mechanical scale, the is an alternative. Related inspection instruments are listed under Portable Test and Measurement.
Documents and quotation
The attached datasheet gives the technical specification and accessory part numbers. Send the gauge type, dolly geometry and quantity for a quotation.
