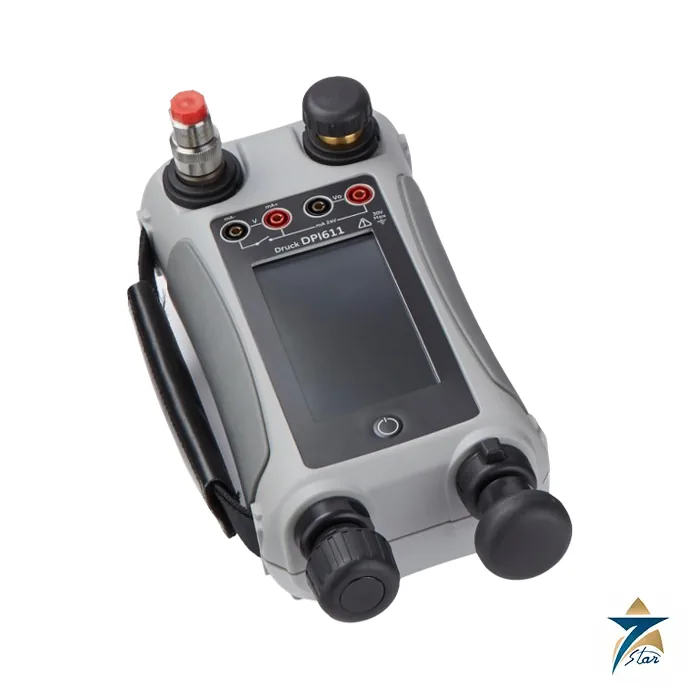

Druck DPI 611 Hand-Held Pressure Calibrator

Name: Druck DPI 611 Hand-Held Pressure Calibrator – Datasheet & Quote
Brand: Druck
SKU: DPI 611

A self-contained pressure calibrator that fits in one hand

The Druck DPI 611 combines a built-in hand pump, a precision pressure sensor, electrical measurement and sourcing, and loop power in one portable instrument. Druck describes it as the fourth generation of the DPI 600 family, first introduced in 1984, and states that it is 50% smaller and 33% lighter than the DPI 610, generates 0 to 20 bar (300 psi) in under 30 seconds and creates 95% vacuum.

The touch screen uses the same dashboard, task and favourites approach as the DPI 620 Genii: tap an application, pick a stored task and the instrument reconfigures itself for the next job. Results can be documented on the instrument, with pass/fail error calculation, three-channel data logging, 8 GB of user memory and automated procedures downloaded from calibration software. One 4Sight2 Lite licence is provided with each unit.

Pressure connections are tool-less quick-fit adapters, supplied in G1/8 female and 1/8 NPT female. Related calibrators on this site include the Druck DPI 620G Genii.

Technical specifications

Parameter	Specification
Pressure ranges (gauge)	-1 to 1, -1 to 2, -1 to 7, -1 to 10 and -1 to 20 bar (-14.5 to 15, 30, 100, 150 and 300 psi)
Pressure accuracy	0.0185% FS (non-linearity, hysteresis, repeatability); total uncertainty 0.025% FS over one year at 10 to 30 degrees C
Overpressure	150 %FS; internal relief valve
Measure / source mA	Measure +/-20 mA and +/-55 mA (0.015 to 0.018% reading + 0.006% FS); source 0 to 24 mA, also with internal loop power
Measure voltage	+/-200 mV, +/-2000 mV, +/-20 V, +/-30 V; 0.018% reading + 0.005% FS
Source voltage	10 V and 24 V fixed, 25 mA maximum
External modules	IDOS pressure modules via IO620-IDOS-USB converter
Display / memory	110 mm (4.3 in) colour touch screen, 480 x 272 pixels; 8 GB user memory
Power	8 x AA alkaline batteries; battery life 18 to 26 hours; optional mains adaptor IO620-PSU
Environment	Operating -10 to 50 degrees C (0 to 40 degrees C on the mains adaptor); storage -20 to 70 degrees C; IP54; 0 to 90% RH
Standards	BS EN 61010-1:2010; BS EN 61326-1:2013; MIL-PRF-28800F Class 2; PED Sound Engineering Practice; CE marked
Size / weight	270 x 130 x 120 mm; 1.96 kg with batteries
Connectivity	USB type A and mini B

Ordering codes and accessories

Order by range: DPI611-05G (-1 to 1 bar), DPI611-07G (-1 to 2 bar), DPI611-10G (-1 to 7 bar), DPI611-11G (-1 to 10 bar) and DPI611-13G (-1 to 20 bar). Each unit is supplied with batteries, hand strap, test leads, G1/8 and 1/8 NPT adapters, a calibration certificate, a quick user guide and an electronic manual in memory.

Accessories are ordered as separate lines: carry case IO611-CASE-1, mains adaptor IO620-PSU, pneumatic hoses of 1 m and 2 m (IO620-HOSE-P1 and P2, rated 400 bar), BSP, NPT and metric adapter sets (IO620-BSP, IO620-NPT, IO620-MET), the IO620-COMP comparator adapter that lets two devices be tested at once, the IO620-IDT621 dirt and moisture trap, and USB and RS-232 cables.

What to confirm before ordering

Choose the range with margin above your highest test pressure, note that it is a pneumatic instrument for gases compatible with the listed wetted materials, and list the thread types of the devices under test so the right adapter sets are ordered. State the calibration certificate type you need from the manufacturer.

Documents and quotation

The attached file is the 12-page Druck DPI 611 datasheet dated February 2026. Send the range, accessories and certificate requirement to Seven Star LLC for a quotation. Browse more instruments in Portable Test and Measurement.
