Druck PACE5000 / PACE6000 Pressure Controller

Name: Druck PACE5000 / PACE6000 Pressure Controller – Datasheet & Quote
Brand: Druck
SKU: PACE5000

Legacy modular pressure controller for bench and rack calibration

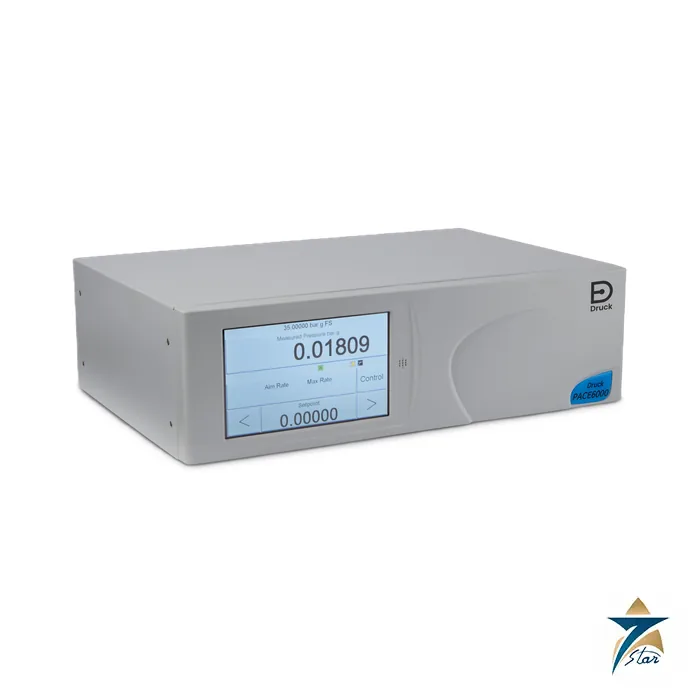

The Druck PACE5000 and PACE6000 are modular pneumatic pressure controllers for test bench, bench top and rack mount calibration and automated test. A chassis (single-channel PACE5000 or dual-channel PACE6000) takes interchangeable PACE CM control modules, so a module can be sent for recalibration without the chassis because its calibration data is stored in the module.

The datasheet lists pressure control up to 210 bar (3000 psi) gauge and absolute, 5 seconds to fill 300 cc, precision to 0.001% FS, 28 selectable pressure units plus four user-defined units, colour touch-screen operation, and RS232, IEEE-488, Ethernet and USB interfaces as standard. Optional tasks include switch test, leak test, burst test, test program, analogue output and volt-free contacts. The PACE6000 adds an aeronautical option with a CM2-A module.

Legacy status: Druck now lists the PACE5000 E and PACE6000 E controllers in its current PACE range, and the original PACE 5000 and PACE 6000 pages are labelled obsolete on the manufacturer site. This page therefore describes a legacy series. Please confirm availability with us or ask for the E-series quotation.

Technical specifications

Parameter	Specification
Chassis	PACE5000: single channel, 4.3 in colour touch screen, 440 x 88 (2U) x 320 mm, 5 kg. PACE6000: dual channel, 7 in screen, 440 x 132 (3U) x 320 mm, 6.7 kg
Control modules	CM0 standard, CM1 high, CM2 premium, CM3 reference precision; optional -B barometric reference; CM2-A aeronautical (PACE6000 only)
Gauge ranges (CM0, CM1, CM2)	25, 70, 200, 350 and 700 mbar; 1, 2, 3.5, 7, 10, 20, 35, 70, 100, 135, 172 and 210 bar
CM3 ranges	2, 3.5, 8, 11, 21, 36, 71, 101, 136, 173 and 211 bar absolute; pseudo gauge options
CM0 / CM1 / CM2 precision	0.02% + 0.02% FS; 0.01% + 0.01% FS; 0.005% + 0.005% FS (reading + FS) for most ranges; low ranges such as 25 mbar carry wider figures
Controller stability	0.005% FS (CM0); 0.003% FS (CM1); 0.001% FS (CM2)
CM3 accuracy (2 sigma)	2 and 3.5 bar a: 0.0004% rdg + 0.0027% FS; 8 to 101 bar a: 0.0011% rdg + 0.0026% FS
Media	Dry, oil-free, non-combustible gas, 10% above the maximum required outlet pressure; dry air or nitrogen recommended
Interfaces	RS232, USB, IEEE-488, SCPI, Ethernet; DPI500 series emulation depending on model
Supply	90 to 130 VAC and 180 to 260 VAC, 47 to 63 Hz, IEC320 C14
Environment	Operating 10 to 50 degrees C; calibrated 15 to 45 degrees C; storage -20 to 70 degrees C; 5 to 95% RH; IP20, indoor use only
Pressure connection	G 1/8 female (1/8 NPT by adaptor)
Conformity	LVD EN 61010, EMC EN 61326, PED, RoHS and WEEE; CE marked

Ordering a PACE configuration

The datasheet asks for eight selections: the chassis (I5000 or I6000), optional features (switch test, leak test, test program, burst test, analogue output, volt-free contacts and, for the PACE6000, aeronautical), a mains lead for the country, the area of use, the control module precision grade, the pressure range, the barometric option and the aeronautical option if needed.

Physical accessories listed include adaptors from G 1/8 to G 1/4, NPT, UNF, AN4 and AN6, a negative-gauge generator, a vacuum system check valve kit, a snubber reference port, a diffuser, a filter kit and 19 inch rack mount kits for the PACE5000 and PACE6000.

What to confirm before ordering

Confirm that the legacy PACE models, rather than the E series, are what the application needs, for instance to match an existing control module. Provide pressure range, precision grade, gas supply and the options required.

Documents and quotation

The attached file is the eight-page Druck PACE5000 / PACE6000 datasheet dated February 2026. Send the configuration to Seven Star LLC for a quotation. Related instruments are in Portable Test and Measurement.

Druck is a pressure measurement and calibration brand founded in 1972 and based in Leicester, United Kingdom, now part of Crane Company. Its range covers pressure sensors and transducers, portable pressure calibrators and controllers, hand pumps and multifunction documenting calibrators used to test and maintain process instruments.

Pressure calibration and test equipment

Druck handheld calibrators, hand pumps and bench pressure controllers are used to generate, control and measure pressure while checking transmitters, gauges, switches and safety valves in the field or in the workshop.

Pressure sensors and transmitters

Druck transducers and transmitters, including miniature and subsea designs, provide pressure signals for industrial, marine and offshore monitoring applications.

Supply from Seven Star LLC

Seven Star LLC, an independent supplier in Muscat, Oman, supports Druck enquiries with datasheets and quotations for the models listed here. Please send the model, range and quantity for a quotation.
