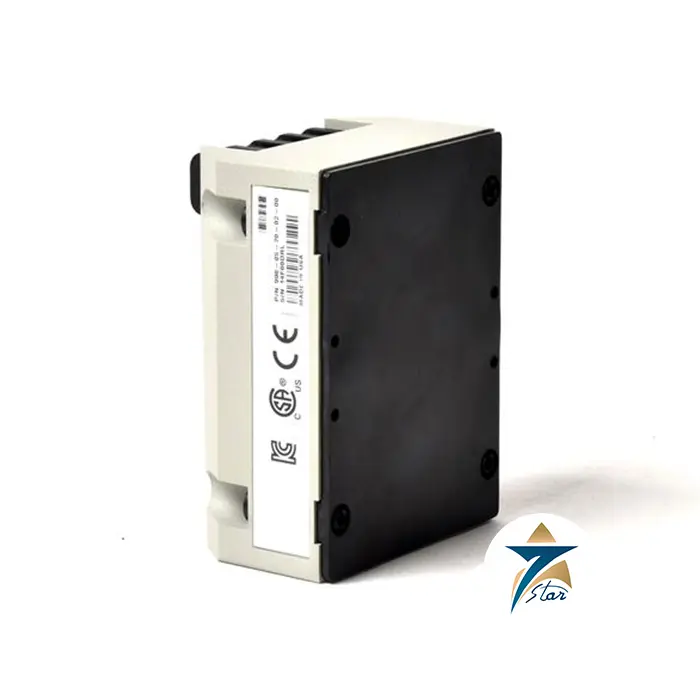

Bently Nevada 990-05-70-02-00 2-Wire Vibration Transmitter

Name: Bently Nevada 990-05-70-02-00 Vibration Transmitter – Datasheet
Brand: Bently Nevada

Description

Overview

The Bently Nevada 990-05-70-02-00 is a 990 Vibration Transmitter, a 2-wire, loop-powered device intended mainly for OEMs of centrifugal air compressors and small pumps, motors or fans that want a simple 4 to 20 mA vibration signal as the input to their machine control system. It accepts a 3300 NSv proximity probe and matching extension cable (ordered separately), conditions the signal into peak-to-peak vibration amplitude and outputs it as a proportional 4 to 20 mA signal.

In the 990-AA-BB-CC-DD order code, this unit is configured for a 0-5 mils pp (0-125 µm pp) full-scale range, a 7.0 m system length, bulkhead screw mounting and no agency approval. A transmitter provides overall vibration trending and alarming but not the diagnostic functions of a continuous monitoring system.

Key Features

Integrated Proximitor Sensor; no external signal conditioner required
Non-isolated PROX OUT terminals and coaxial connector for dynamic and gap signal diagnostics
Non-interacting zero and span adjustments and a Test Input pin
Not OK / signal defeat and power-up inhibit circuits
Potted construction for up to 100% condensing humidity

Technical Specifications

Parameter	Value
Part number	990-05-70-02-00
Full-scale option	05: 0-5 mils pp (0-125 µm pp)
System length option	70: 7.0 m
Mounting option	02: bulkhead screws
Agency approval option	00: not required
Input	One 3300 NSv proximity probe and extension cable
Power	+12 to +35 Vdc at transmitter terminals
Output	4 to 20 mA over full-scale range, 2-wire loop
Loop accuracy	±1.5% over full-scale range
Max. loop resistance	1,000 Ω including cable at 35 Vdc
Current limiting	23 mA typical
Not OK / signal defeat	Output <3.6 mA within 100 µs of Not OK
Probe gap	0.5 to 1.75 mm (20 to 55 mils) for full-scale range
Prox Out linear range	1.4 mm (55 mils), from approx. 0.25 mm
Prox Out scale factor	7.87 mV/µm (200 mV/mil) ±6.5% typical
Frequency response	5 Hz to 6,000 Hz, +0/-3 dB
Minimum target	9.5 mm diameter
Transmitter operating temperature	-35 °C to +85 °C
Transmitter weight	0.43 kg
Transmitter storage temperature	-52 to +100 °C
Power-up inhibit	Output held below 3.6 mA for 2 to 3 s after power is applied
Recovery after Not OK	Output restored 2 to 3 s after the fault clears
Prox Out output impedance	10 kΩ, calibrated for a 10 MΩ load
Scale factor temperature stability	Within ±10 % of 7.87 mV/µm from 0 to +70 °C
Maximum loop cable length	13 km with 1.0 mm² (18 AWG) shielded twisted pair
Maximum loop resistance versus supply	43.5 × (supply voltage – 12) Ω
Bulkhead mounting	4 holes of 5.8 mm diameter; screws supplied with option 02
Probe tip diameter (3300 NSv)	5.26 mm maximum
Probe temperature range	-52 to +177 °C operating and storage
Probe cable	75 Ω coaxial, FEP insulated, 2.8 mm maximum outside diameter

Applications

Radial vibration trending and alarming on packaged centrifugal air compressors
Small pumps, motors, fans and blowers on skids where a PLC or DCS reads a 4 to 20 mA vibration value
Balance-of-plant rotating equipment in water, power and oil & gas facilities

Bently Nevada 990-05-70-02-00 System Compatibility

The transmitter is one part of a three-part measuring chain: a 3300 NSv proximity probe, a 3300 NSv extension cable and the 990 itself. Option 70 means the electronics are matched to 7.0 m of total cable, so the probe lead and extension cable together must make up that length. The datasheet lists NSv probes with 0.5, 1.0, 5.0 or 7.0 m integral cable and 330930 extension cables of 4.0, 4.5, 6.0 or 6.5 m; the 6.0 m and 6.5 m cables pair with 1.0 m and 0.5 m probes for a 7.0 m system.

Probe choices are 330901/330902 (1/4-28 UNF, without/with armour), 330908/330909 (3/8-24 UNF), 330903/330904 (M8 × 1) and 330905/330910 (M10 × 1), plus reverse-mount probes 330906 (3/8-24) and 330907 (M10 × 1). Published performance assumes an AISI 4140 steel target. The small NSv probe tip is intended for tight locations with little side clearance, which is typical of centrifugal air compressors.

Bently Nevada 990-05-70-02-00 Ordering Code and Options

In 990-AA-BB-CC-DD, AA is the full-scale range of the 4 to 20 mA output: 04, 05, 08 or 10 for 0-4, 0-5, 0-8 or 0-10 mils peak-to-peak (100, 125, 200 or 250 µm). BB is the system length the transmitter is matched to, 50 for 5.0 m or 70 for 7.0 m of probe plus extension cable. CC is the mounting: 01 for 35 mm DIN-rail clips, 02 for bulkhead screws, 03 for both. DD is the agency approval: 00 none, 01 CSA Division 2, and 05 CSA Division 2 with ATEX Zone 0 and Zone 2 plus ABS maritime approval.

This part is therefore a 0-5 mil, 7.0 m unit with bulkhead mounting and no agency approval. DIN-rail kit 284726 can be fitted if rail mounting is needed later.

Why Seven Star LLC

Seven Star LLC supplies Bently Nevada (Baker Hughes) 990 series vibration transmitters to power, oil & gas, petrochemical and water customers across Oman and the GCC. Before quoting, we check the complete part number and the full-scale range, system length and mounting option against the equipment already installed, so the replacement matches the existing system.

Request a Quote for Bently Nevada 990-05-70-02-00 2-Wire Vibration Transmitter

Submit a formal inquiry through our RFQ page with the transmitter part number 990-05-70-02-00, the quantity, the required full-scale range and system length, and the installed 3300 NSv probe part number. We will confirm the correct configuration and respond with a formal quotation. | Inquiry Form
