Bently Nevada 3500/50 Tachometer Module

Overview

Bently Nevada 3500/50 is a dual-channel tachometer module built for the Bently Nevada 3500 Series machinery protection rack, providing precise rotational speed measurement, zero-speed detection, and overspeed trip protection for turbines, compressors, generators, and other high-speed rotating equipment. The module accepts pulse-train input from magnetic pickups or eddy-current probes viewing a gear or keyphasor wheel and converts that pulse frequency into a calibrated speed reading, comparing it continuously against Alert, Danger, and overspeed trip setpoints so that an accelerating or stalling shaft is caught immediately rather than after damage has already occurred.

Working closely with plant engineers in the region, Seven Star LLC proudly supplies the Bently Nevada 3500/50 and the full 3500 Series product line to industrial operators across Oman and the wider GCC. Power plants, LNG trains, and refineries throughout the Sultanate depend on this established supply relationship for genuine Baker Hughes–manufactured hardware, factory calibration traceability, and responsive local technical support — essential for a module that sits directly in the overspeed trip path of rotating machinery.

Operating Principle

The Bently Nevada 3500/50 measures shaft speed by counting the pulses generated as gear teeth or keyphasor marks pass a proximity probe or magnetic pickup, then converts that pulse rate into engineering units of revolutions per minute using a user-configured number of pulses per revolution. Each of the module’s two independent channels can be configured for a different measurement range, gear-tooth count, or trip logic, allowing one 3500/50 to simultaneously monitor, for example, a turbine’s high-speed shaft and its gearbox output shaft, or to provide fully redundant speed measurement on a single critical shaft using two independent probes.

Beyond simple speed indication, the module implements dedicated zero-speed and overspeed logic: zero-speed detection confirms a shaft has genuinely stopped rotating before permissive interlocks such as barring-gear engagement or maintenance access are enabled, while the overspeed trip function drives a fast, hard-wired relay output the moment the measured speed exceeds a configured danger threshold, independent of any external control system logic delay. This direct, deterministic trip path is what allows the 3500/50 to function as a genuine machinery protection device rather than only a speed indicator, closing the loop between a detected overspeed condition and a physical shutdown action in milliseconds.

Engineering Design of the Bently Nevada 3500/50

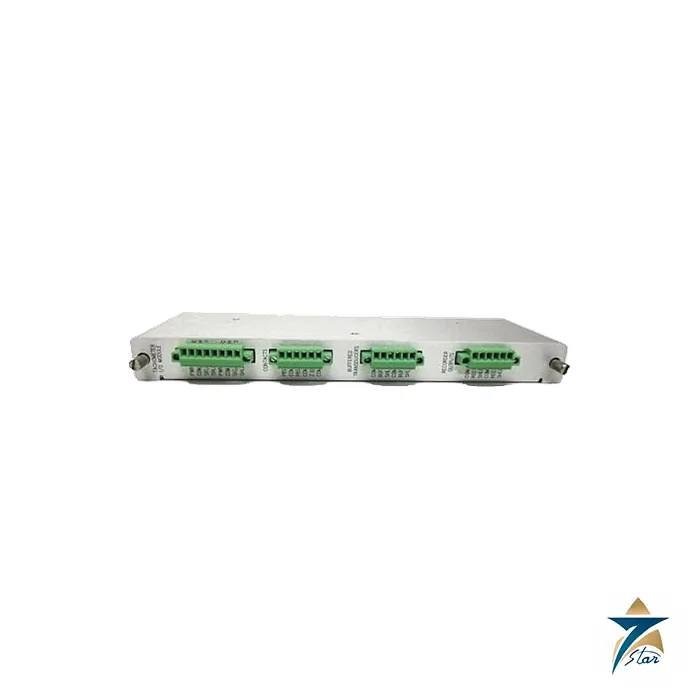

The Bently Nevada 3500/50 is built as a single-slot, hot-swappable printed circuit assembly that mates directly with the 3500 rack backplane, drawing power and communicating diagnostic and configuration data through the rack’s redundant power and communication buses. The front panel provides removable screw-terminal connectors for the two independent probe input channels and their associated relay outputs, along with LED indicators for module health, per-channel signal presence, and trip status, so field technicians can confirm correct operation without connecting a laptop to the rack.

Internally, dedicated frequency-to-speed conversion circuitry runs independently per channel, ensuring that a fault or configuration change on one channel cannot affect the accuracy or trip response of the other — an important design consideration when the two channels are protecting genuinely different shafts or providing voted redundancy on the same shaft. Module configuration, including pulses-per-revolution, trip setpoints, and relay logic, is stored centrally and can be pushed to a replacement unit through Bently Nevada’s Rack Configuration or System 1 software, reducing the risk of a manual configuration error following a field swap.

Key Features

The Bently Nevada 3500/50 delivers the accuracy and deterministic trip response that overspeed protection applications demand. Key features include:

• Two fully independent tachometer channels, each individually configurable for speed range, pulses per revolution, and trip logic.
• Hard-wired overspeed trip relay output that responds directly to a detected overspeed condition without dependence on external control system logic.
• Dedicated zero-speed detection logic for safely enabling barring-gear engagement and maintenance interlocks.
• Hot-swappable installation and removal from a live 3500 rack without interrupting protection on other monitored channels.
• Compatibility with magnetic pickups and eddy-current proximity probes viewing gear teeth or keyphasor marks.
• Front-panel LED indicators for module health, signal presence, and trip status for rapid field verification.
• Removable screw-terminal wiring blocks that simplify commissioning and speed up module replacement.
• Full integration with Bently Nevada System 1 and Rack Configuration software for centralized setpoint management.

Industrial Applications

The Bently Nevada 3500/50 is essential wherever shaft overspeed represents a direct safety or asset-integrity risk: gas and steam turbines in power generation, turbo-expanders and compressor trains in LNG and gas processing facilities, generator sets, and high-speed gearboxes driving pumps or fans. In every case the module’s fast, hard-wired trip response is what stands between a developing overspeed excursion and a catastrophic mechanical failure, making it one of the most safety-critical modules in the entire 3500 rack.

With fast quotation turnaround and technical support, Seven Star LLC supplies and supports the Bently Nevada 3500/50 across power generation and gas processing facilities in Sohar, refinery and petrochemical complexes in the greater Muscat area, and desalination and cogeneration plants serving the Salalah free zone, alongside upstream oil and gas installations throughout the Sultanate of Oman and the GCC. Early quotation and technical support allow maintenance teams to plan overspeed-protection module replacements ahead of scheduled turnarounds, rather than facing extended lead times for a component this critical to safe machinery operation.

Technical Specifications

Key specifications for the Bently Nevada 3500/50 tachometer module are summarized below.

Request a Quote for Bently Nevada 3500/50 Tachometer Module

Contact Seven Star LLC today to request a formal quotation for the Bently Nevada 3500/50 tachometer module — confirm current availability and lead time, or request the full technical datasheet for your engineering file. With engineering support in Muscat, our instrumentation division can support project specification, spare-parts planning, and turnaround procurement — reach out today to discuss your machinery overspeed protection requirements.
