Siemens 6ES7331-7KB02-0AB0 SIMATIC S7-300 SM 331 Analog Input Module, 2 AI

Overview

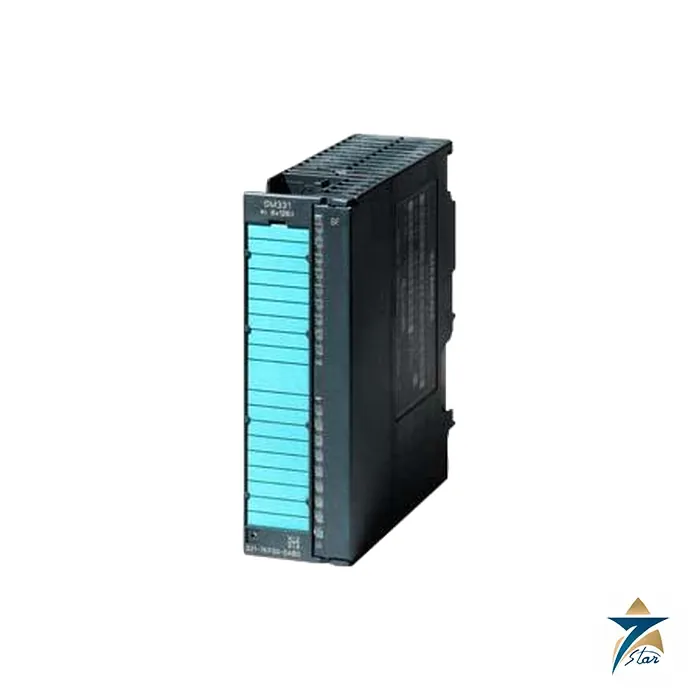

The Siemens 6ES7331-7KB02-0AB0 is a SIMATIC S7-300 analog input module of the SM 331 family. Siemens describes it as an isolated module with 2 analog inputs, resolution of 9, 12 or 14 bits, inputs for voltage, current, thermocouple and resistance sensors, alarm and diagnostics functions, one 20-pole front connector and support for removing and inserting with the active backplane bus. It is the module often called SM 331 AI 2 x 12 bit, and it is widely installed in S7-300 controllers and ET 200M remote I/O stations on process plants, utilities and machines.

Siemens currently marks the Siemens 6ES7331-7KB02-0AB0 as a spare part, with the lifecycle status shown as product cancellation on its product page, so it is now supplied mainly to keep existing installations running. Siemens does not name a direct successor on that page, so any migration to a newer platform should be planned with the Siemens documentation for the specific system. Seven Star LLC supplies this module to maintenance teams and system integrators across the Sultanate of Oman and the GCC, and our Muscat team checks the exact order number, front connector and measuring range module setting with the buyer before an order is placed, with engineering support in Muscat.

Operating Principle of the Siemens 6ES7331-7KB02-0AB0

The module converts analog field signals into digital values that the S7-300 CPU reads over the backplane bus. On the Siemens 6ES7331-7KB02-0AB0 the integration time can be parameterized at 2.5, 16.67, 20 or 100 ms. Each setting gives a different balance between speed and noise rejection: Siemens lists basic conversion times of 3, 17, 22 and 102 ms and interference frequency suppression at 400, 60, 50 and 10 Hz respectively, with resolution rising from 9 bits plus sign at the fastest setting to 14 bits plus sign at the slowest. As general guidance, the 20 ms setting is the usual choice on 50 Hz mains networks such as Oman’s.

For thermocouples the module provides internal temperature compensation, external compensation with a compensating socket and a definable reference point temperature, and it linearizes type E, J, K, L and N characteristics. For resistance thermometers it linearizes Pt100 and Ni100 in standard and climatic ranges. Two-wire and four-wire transmitters can be connected for current measurement, and resistance sensors can be wired in two-wire, three-wire or four-wire connection. Only one channel is available for resistance measurement.

Engineering Design of the Siemens 6ES7331-7KB02-0AB0

The Siemens 6ES7331-7KB02-0AB0 is a standard S7-300 signal module, 40 mm wide, 125 mm high and 120 mm deep, weighing about 250 g. It needs a 20-pin front connector, which is ordered separately. The load voltage L+ is 24 V DC with reverse polarity protection, and the module draws at most 30 mA from L+ and 50 mA from the 5 V backplane bus, with typical power loss of 1 W. The channels are isolated from the backplane bus and from the electronics supply, except when 2-wire transmitters are used, but they are not isolated from each other. Isolation is tested with 500 V DC.

Diagnostics on the Siemens 6ES7331-7KB02-0AB0 are parameterizable. The module can raise a diagnostic alarm, readable diagnostic information is available to the CPU, and a red SF group error LED shows faults. A limit value alarm is available on channel 0. Shielded signal cables can be up to 200 m long, or 50 m for 80 mV ranges and thermocouples. The permitted input voltage is 20 V continuous, or 75 V for at most 1 s at a 1:20 mark to space ratio, and the permitted current input is 40 mA.

Key Features

The Siemens 6ES7331-7KB02-0AB0 provides these capabilities for S7-300 systems:

• Two universal inputs accept voltage, current, thermocouple, RTD and resistance signals on one module.
• Parameterizable integration time trades conversion speed against resolution and mains noise rejection.
• Current ranges include 4 to 20 mA, 0 to 20 mA and plus or minus 20 mA with 25 ohm input resistance.
• Voltage ranges run from plus or minus 80 mV to plus or minus 10 V, plus 1 to 5 V.
• Thermocouple types E, J, K, L and N are linearized, with internal or external cold junction compensation.
• Pt100 and Ni100 RTDs and 150, 300 and 600 ohm resistance ranges are supported.
• Diagnostic and limit value alarms report faults to the CPU, with a red SF LED on the module.
• Removal and insertion with the active backplane bus supports maintenance in ET 200M stations.

Industrial Applications

The Siemens 6ES7331-7KB02-0AB0 two-channel module is common in older but still productive control systems. Typical uses are reading pressure and level transmitters, flow signals and temperature sensors in water treatment plants, pumping stations, oil and gas gathering facilities, power plant auxiliaries, cement and food plants. Because each Siemens 6ES7331-7KB02-0AB0 offers only two channels, it is often used where a few mixed signals must be added to an existing rack, or where thermocouples and RTDs need careful linearization close to the process.

In Oman many S7-300 and ET 200M installations remain in service at utilities, desalination plants and industrial sites in Muscat, Sohar and Salalah, and a reliable spare stock of the Siemens 6ES7331-7KB02-0AB0 reduces downtime while long-term modernization is planned. Seven Star LLC supplies this module together with related items such as the Siemens ET 200M IM 153-2 interface module, the Siemens SITRANS TH320 temperature transmitter and the Rosemount 644 temperature transmitter that often feeds 4 to 20 mA signals into such inputs.

Replacement and Configuration Notes

When replacing a Siemens 6ES7331-7KB02-0AB0, check the measuring range module settings on the side of the old module and set the new one the same way, then confirm that the hardware configuration in STEP 7 matches the order number and parameters. Reuse the existing 20-pin front connector where its condition allows, and verify shield termination for low-level signals. The module also has a SIPLUS variant for extended environmental conditions with its own order number, 6AG1331-7KB02-2AB0, listed separately by Siemens. Seven Star LLC does not state a successor model; the Siemens lifecycle information for your system should guide any migration.

Technical Specifications

The table below summarises the Siemens 6ES7331-7KB02-0AB0 data from the Siemens product data sheet:

How to Order

To source the Siemens 6ES7331-7KB02-0AB0, send Seven Star LLC the order number from your existing module, the quantity and whether you also need front connectors, and our team in Muscat will prepare a formal quotation. The Siemens product data sheet can be downloaded from this page, and we provide engineering support in Muscat for S7-300 spare modules for customers across Oman and the GCC.
