YSI ProDSS Multiparameter Digital Water Quality Meter

Overview

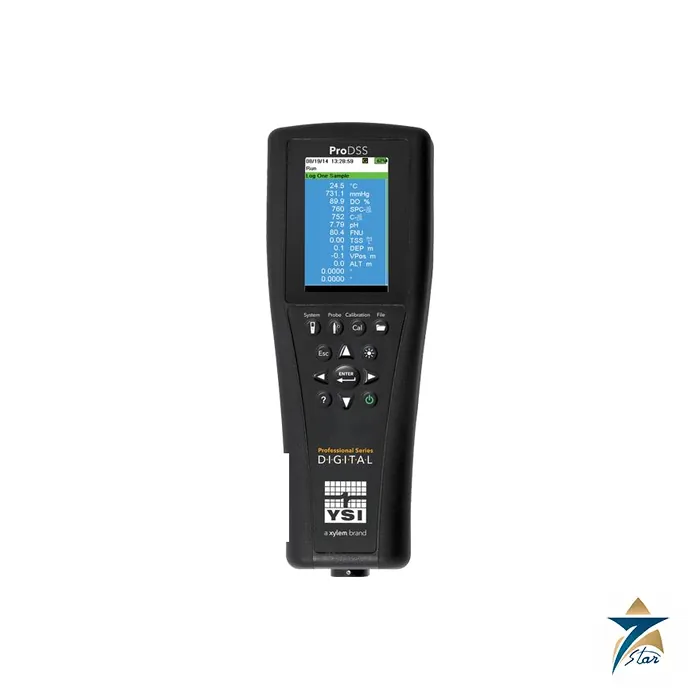

YSI ProDSS is a rugged, user-friendly handheld instrument for multiparameter water quality sampling. The name stands for Digital Sampling System, and the instrument pairs an impact-resistant, waterproof display with a four-port cable assembly that accepts any four digital smart sensors at the same time. Optional depth and GPS capability allow the operator to record where and at what depth every reading was taken. YSI is a Xylem brand, and the ProDSS is one of the best-known field instruments for surface water, groundwater, wastewater, coastal and aquaculture work.

In Oman and across the GCC, water quality teams have to document dissolved oxygen, conductivity, salinity, pH and turbidity at wells, wadis, reservoirs, treatment works, outfalls and coastal sites, often in heat and with limited time per site. The YSI ProDSS gives them a single instrument that logs more than 100,000 data sets and is configured through a simple menu. It complements the laboratory and online instruments already listed by Seven Star LLC, such as the Sitelab UVF-500D handheld hydrocarbon analyzer, the Hach LBOD101 luminescent dissolved oxygen probe and the Hach LXV416 LDO2 dissolved oxygen sensor. Seven Star LLC supplies the YSI ProDSS on request with engineering support in Muscat.

Measurement Principle

The YSI ProDSS is a digital instrument. Every sensor on the cable contains its own electronics and calibration memory, so the sensor converts the signal and passes it to the handheld digitally, and the meter recognises each sensor automatically while retaining its calibration data. This is what the manufacturer calls smart sensor technology, and it allows sensors to be moved between cables and instruments without losing their calibration history.

Dissolved oxygen is measured by an optical sensor, which reads the luminescence of a dye layer that is quenched by oxygen. Conductivity and temperature are measured by a combined sensor, and the instrument calculates specific conductance, salinity, resistivity and total dissolved solids from them. pH and ORP use electrodes, turbidity uses an optical sensor, and total algae sensors measure chlorophyll together with phycocyanin or phycoerythrin by fluorescence. Ammonium, chloride and nitrate are measured with ion-selective electrodes. YSI notes that a conductivity and temperature sensor should be installed in every YSI ProDSS cable for accurate temperature compensation of the other parameters.

Engineering Design of the YSI ProDSS

The YSI ProDSS handheld measures 8.3 by 21.6 by 5.6 cm and weighs 567 grams with batteries. It has a colour LCD graphic display of 3.9 by 6.5 cm, a rechargeable lithium-ion battery pack, an IP-67 waterproof housing that floats, and a built-in micro USB port for charging, PC connection and connection to a USB drive. The case passed a one-metre drop test, and the instrument carries RoHS, CE, WEEE and FCC marks, along with the UN test methods for lithium-ion batteries.

The field cable is user-replaceable and uses military-specification connectors. Four-port cables are offered without depth in 1, 4, 10, 20, 30, 60 and 90 metre lengths, and with depth in 4, 10, 20, 30, 60, 90 and 100 metre lengths. One-port cables, an ODO/T cable with integral optical dissolved oxygen and temperature, an ODO/CT cable that adds conductivity, and the ProOBOD self-stirring optical BOD lab probe are available as additional options. Data is managed with Kor Software for Windows or the Kor Mobile app for iOS and Android, and the instrument stores more than 100,000 data sets with a site list and data ID tags.

Key Features

The following features make the YSI ProDSS a dependable choice for field water quality programmes:

• A four-port cable assembly that accepts any four smart sensors, with optional depth and GPS.
• Smart sensors that are recognised automatically and keep their own calibration data.
• User-replaceable cables with universal sensor ports and cable lengths up to 100 metres.
• Memory for more than 100,000 data sets, with site list and data ID tag capability.
• Automatic buffer recognition for USA buffers (4.00, 7.00, 10.00) and NIST buffers (4.01, 6.86, 9.18), compensated for temperature.
• IP-67 waterproof housing that floats, with a one-metre drop test and a rechargeable lithium-ion battery.
• Data management through Kor Software for Windows and Kor Mobile for iOS and Android.
• Three-year instrument warranty, two-year cable warranty and a one-year sensor warranty, according to the specification sheet.

Industrial Applications

The manufacturer lists the YSI ProDSS for sampling in surface water, wastewater, coastal and estuarine waters, aquaculture, groundwater and laboratory use. In Oman that translates into groundwater and aflaj monitoring, reservoir and dam surveys, desalination intake and brine outfall checks along the coast, and effluent compliance sampling at industrial sites in Sohar, Duqm and Salalah. Some of the sensors are EPA approved for drinking water and wastewater compliance reporting, and the ProOBOD probe is approved for BOD and CBOD reporting.

Environmental consultancies, municipal and government agencies, utilities and universities in Muscat can equip survey teams with a YSI ProDSS configured for dissolved oxygen, conductivity, pH and turbidity, and extend it later with depth, GPS or an ion-selective sensor. Seven Star LLC supplies the instrument together with cables, sensors, calibration solutions and carrying cases, and our team can check which cable length and sensor combination fits a given survey programme.

Technical Specifications

The table summarises the published data for the YSI ProDSS from the YSI specification sheet. Accuracy values are those quoted for the instrument, sensor and cable together.

How to Order

To request a formal quotation for the YSI ProDSS, tell us the sensors you need, the cable length, whether you want depth or GPS, and the calibration solutions and carrying case for your survey team. Seven Star LLC supplies YSI water quality instruments to customers in Oman and the GCC, with lead time confirmed at quotation, engineering support from our instrumentation division in Muscat, and the specification sheet attached to this page.
