Brand: Xylem

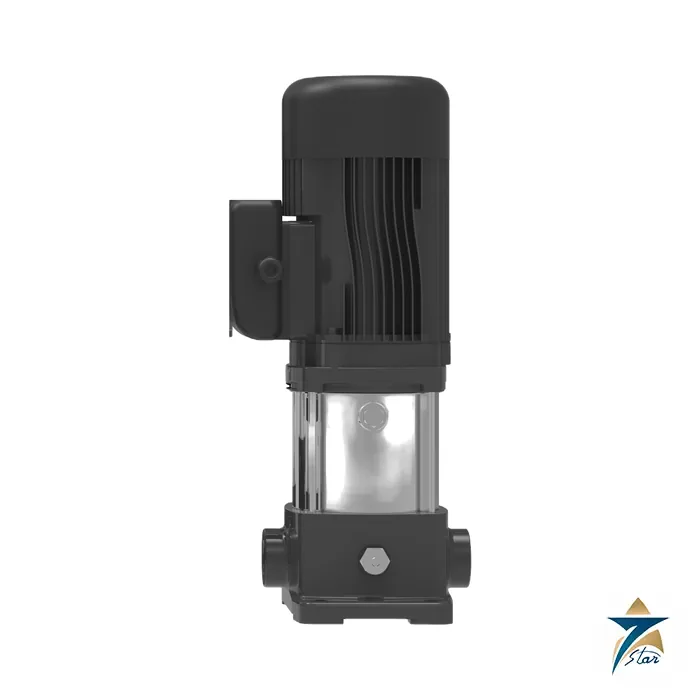

Xylem Lowara VM Vertical Multistage Pump
Description
Close-coupled vertical multistage pump for building water supply
The Lowara VM is a non-self-priming vertical multistage high-pressure centrifugal pump with threaded inlet and outlet manifolds, close-coupled to a Lowara surface motor. Xylem designed it for residential and small commercial building services: pressure boosting and water supply, small to medium irrigation systems and liquid handling. The pump body is cast iron, joined to an external AISI 304 (EN 1.4301) TIG-welded sleeve by stainless steel tie rods screwed into the aluminium motor flange, and the impellers are technopolymer. The design shares its heritage with the e-HM and uses an essential O-ring layout with only two O-rings in the sleeve construction. A version suitable for contact with drinking water is available.
Technical specifications
| Parameter | Specification |
|---|---|
| Pump type | Vertical multistage, non-self-priming, close-coupled, threaded manifolds |
| Sizes | 1VM, 3VM, 5VM, 10VM (VM..P) |
| Flow rate | Up to 14 m3/h (50 Hz) |
| Maximum head | Up to 98 m |
| Maximum operating pressure | 10 bar (PN10) |
| Liquid temperature | -30 to +90 degC; +90 degC for uses to EN 60335-2-41 |
| Ambient temperature | -15 to +45 degC single-phase; -15 to +50 degC three-phase |
| Materials | Pump body EN-GJL-200 cast iron; impellers technopolymer; diffusers, outer sleeve and shaft stainless steel (AISI 304 / 316 as listed in the brochure); motor flange aluminium |
| Standard mechanical seal | VB3E2GG: aluminium oxide / graphite / EPDM-WRAS / AISI 316, -30 to +90 degC, PN10 |
| Hydraulic performance standard | ISO 9906:2012 Grade 3B |
| Motor | Lowara surface motor, TEFC squirrel-cage, IP55, insulation class 155 (F), performance to EN 60034-1, IE2 / IE3 per Regulation (EU) 2019/1781 |
| Supply (50 Hz standard) | Single-phase 220-240 V; three-phase 220-240/380-415 V up to 3 kW |
| Variable speed | VME version with e-SM drive and permanent magnet motor; HYDROVAR option in the identification code |
| Storage and transport temperature | -40 to +60 degC |
Size ranges and connections
| Size | Flow range m3/h | Max head m | Motor kW | Suction / delivery |
|---|---|---|---|---|
| 1VM | 0.7 to 2.4 | 92 | 0.30 to 1.1 | Rp 1 / Rp 1 |
| 3VM | 1.2 to 4.2 | 96 | 0.30 to 1.5 | Rp 1 / Rp 1 |
| 5VM | 2.4 to 7.2 | 99 | 0.40 to 2.2 | Rp 1 1/4 / Rp 1 1/4 |
| 10VM | 5 to 14 | 93 | 1.1 to 3 | Rp 1 1/2 / Rp 1 1/2 |
The identification code, for example 10VM05P30T5RVBE, reads: flow rating 10 m3/h, VM series, 5 technopolymer impellers, 3 kW motor, three-phase, 50 Hz supply code 5R (220-240/380-415 V), seal rotating part V (aluminium oxide), stationary part B (carbon) and E (EPDM) elastomers. A VME code such as 10VME02P11M02VBE indicates the e-SM drive version.
Selection and what to confirm before ordering
The VM suits clean water duty at moderate pressure; it is a building services pump rather than a process pump. Confirm the duty flow and head, suction condition (it is not self-priming), supply voltage and phase, and whether the e-SM drive is wanted for constant-pressure operation. For stainless steel wetted parts or higher temperatures see the horizontal ; the wider range is described on the Lowara intelligent pump range page, and more pumps are under Pumps.
Documents and quotation
The attached Lowara VM series technical brochure (50 Hz, Cod. 191003611 Rev. F, 03/2024) contains hydraulic curves, dimensions and weights. Send the duty point and supply for a quotation.
Datasheets & Documents
- Brochure Lowara VM series technical brochure 50 Hz (Cod. 191003611 Rev. F, 03/2024) Download
Reviews (0)
About brand
Xylem works in water: pumps, treatment equipment and the instruments that measure water quality. Its products reach the market under several brand names, and the two on this page are YSI for water quality sondes and Lowara for pumps. The company was formed in 2011 and is based in Washington, D.C., USA. Seven Star LLC sources and supplies Xylem equipment for utilities, laboratories and contractors in Oman and the GCC.
Xylem brands listed: YSI and Lowara
The YSI EXO2 is a multiparameter sonde for unattended water quality monitoring. YSI describes it with seven universal sensor ports, one of them for a central antifouling wiper, powered by four D-cell batteries. With the matching sensors it reports temperature, conductivity, optical dissolved oxygen, pH, ORP, turbidity, algae pigments, fDOM and depth, among others. The sonde is sold as an instrument only; sensors and cables are separate items. Lowara pumps are listed as well, including the e-NSC, e-HM and e-SV models and the intelligent pump range.
Ordering Xylem equipment: what we need
For an EXO2, list the sensors required, the cable length, the depth option and whether a handheld or a data logger will read it. For a Lowara pump, send the full type from the nameplate, or the duty point: flow, head, liquid, temperature, motor power and supply voltage. A nameplate photo is best for a replacement pump.
Browse Xylem products by category: Pumps.
Related products
Frequently Asked Questions
What flow and head does the Lowara VM cover?
Up to 14 m3/h and up to 98 m head across the 1VM, 3VM, 5VM and 10VM sizes at 50 Hz.
What is the maximum operating pressure and temperature?
10 bar (PN10) and a liquid temperature of -30 to +90 degC.
Which materials are used?
Cast iron pump body, technopolymer impellers and an AISI 304 sleeve with stainless steel diffusers and tie rods.
Is the VM self-priming?
No. It is a non-self-priming pump and needs a flooded or primed suction.
Is a variable speed version available?
Yes, the VME version uses the e-SM drive with a permanent magnet motor.
