Winsonic NE31002-00143 Wireless AX3000 Indoor Router

Overview

The Winsonic NE31002-00143 is a dual-band Wi-Fi 6 (802.11ax) Gigabit indoor router rated for AX3000 class throughput, designed to serve as the local-area wireless and multi-WAN gateway inside control rooms, back-office segments and site facilities where a fast, secure indoor access point is needed alongside an industrial network’s dedicated field infrastructure. With a 2.5Gigabit WAN port, four Gigabit LAN ports, dual FXS VoIP ports and USB3.0 storage sharing, the NE31002-00143 consolidates several functions that would otherwise require separate boxes into a single Winsonic-branded gateway.

As the official authorized partner and exclusive regional representative for Winsonic, Seven Star LLC proudly supplies the NE31002-00143 to system integrators and facility IT teams across the Sultanate of Oman and the wider GCC. Every unit supplied through Seven Star LLC comes with Winsonic firmware and regional technical support, giving project teams in Muscat, Sohar and Salalah a locally backed option for the office and control-room networking segments that sit alongside their industrial field infrastructure.

Operating Principle

Built around the BCM6756 CPU/Wi-Fi chipset paired with a BCM53134 4-port Gigabit LAN PHY and a GPY211B1VC 2.5G WAN PHY, the Winsonic NE31002-00143 supports multiple simultaneous WAN connections for flexibility, redundancy and future-proof upgrade paths, with a built-in Ethernet WAN port that can also negotiate up to 2.5Gigabit speeds where the upstream connection supports it. Dual active firewalls combining SPI and NAT inspection protect the LAN side from unsolicited inbound traffic, while WPA/WPA2 wireless security and WPS PIN/PBC pairing secure the 802.11ax/ac/n/g/b wireless radios covering both 2.4GHz (573.5Mbps) and 5GHz (2402Mbps) bands.

On the routing side, the Winsonic NE31002-00143 implements a full IP routing stack including NAT, NAPT, DMZ, IGMP proxy, DHCP server/client and IPv6 support, alongside QoS priority queues and packet prioritization that keep VoIP calls and media streaming smooth even under contended network load. Management is available through a web-based GUI, a command-line interface over serial, telnet or SSH, and remote provisioning via TR-069 and SNMPv1/v2, giving IT teams the same remote-management options on this indoor gateway that they expect from the rest of a managed industrial network.

Engineering Design of the Winsonic NE31002-00143

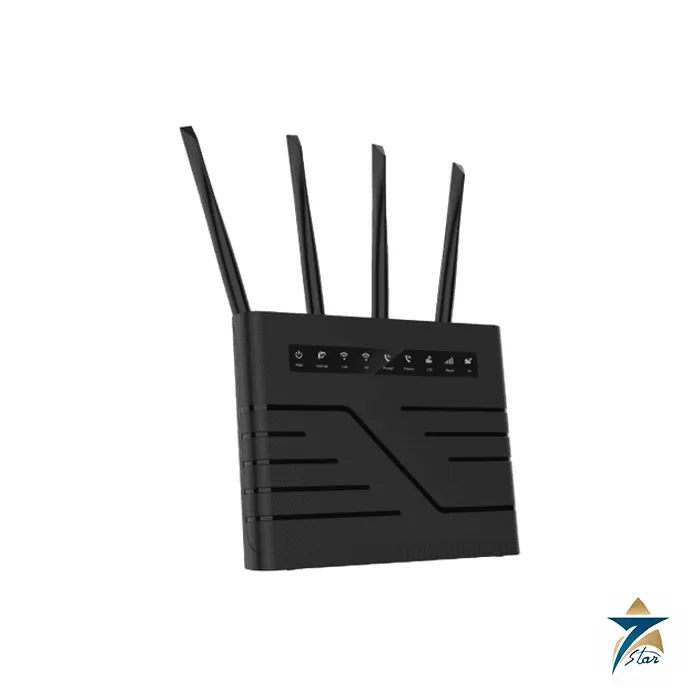

The Winsonic NE31002-00143 is housed in a compact indoor enclosure with four external 5dBi antennas, two dedicated to the 2.4GHz band and two to the 5GHz band, positioned to maximize coverage across a typical control room or office floor plate without requiring external access-point hardware. On the Winsonic NE31002-00143, the 2.5Gigabit WAN port and four Gigabit LAN ports are laid out on the rear panel alongside two FXS analog telephone ports, letting the unit bridge legacy analog phone equipment into a VoIP infrastructure where that requirement still exists on site.

On the Winsonic NE31002-00143, a USB3.0 port on the rear panel allows a local storage device to be shared across the network, useful for keeping site documentation, configuration backups or software images accessible without a dedicated file server. The router’s dual active firewall and IP routing feature set are implemented entirely in firmware on the BCM6756 platform, meaning the same physical unit can be reconfigured from a simple NAT gateway to a more complex multi-WAN, VLAN-aware router as a facility’s network requirements evolve, without a hardware change.

Key Features

The Winsonic NE31002-00143 bundles Wi-Fi 6 wireless, multi-WAN routing and legacy telephony support into one gateway. Key capabilities include:

• Dual-band 802.11ax/ac/n/g/b Wi-Fi 6 wireless with AX3000-class combined throughput.
• 2.5Gigabit WAN port plus four Gigabit LAN ports for high-speed wired connectivity.
• Multiple simultaneous WAN connection support for flexibility and future upgrade paths.
• Dual active firewall (SPI and NAT) with WPA/WPA2 wireless security and WPS pairing.
• Two FXS VoIP ports for bridging analog telephone equipment into a VoIP network.
• USB3.0 port for local network storage sharing.
• Full IP routing feature set: NAT, NAPT, DMZ, IGMP proxy, DHCP server/client, IPv6.
• Remote management via web GUI, CLI (serial/telnet/SSH), TR-069 and SNMPv1/v2.

Industrial Applications

The Winsonic NE31002-00143 is deployed inside control rooms, site offices and administration buildings across district cooling plants, RO desalination facilities, and hospitality and hospital complexes throughout Oman and the GCC, where it provides fast Wi-Fi 6 coverage and multi-WAN routing for staff devices, VoIP handsets and office equipment alongside the facility’s dedicated industrial network. In facilities transitioning legacy analog telephone extensions onto VoIP, the router’s built-in FXS ports let IT teams migrate incrementally rather than replacing every handset on day one.

As the officially authorized partner for Winsonic, Seven Star LLC distributes the NE31002-00143 to facility IT teams and system integrators supporting the Sohar and Salalah economic zones, where a single compact gateway handling wireless, multi-WAN failover and legacy telephony reduces the number of separate devices that need to be procured, configured and maintained in a site office or control room. Across Oman and the GCC, facility managers looking to modernize an office or control-room network without a full infrastructure overhaul consistently choose the NE31002-00143 for its combination of Wi-Fi 6 speed and multi-service routing.

Technical Specifications

The table below summarizes the core specifications of the Winsonic NE31002-00143 Wi-Fi 6 indoor router.

Request a Quote for Winsonic NE31002-00143

The Winsonic NE31002-00143 is available on request, with lead time confirmed at quotation.

Seven Star LLC supports formal RFQ submissions, confirms lead time at quotation, and provides the full Winsonic technical datasheet for the NE31002-00143 on request. As the authorized partner for Winsonic in Oman and the GCC, our instrumentation and industrial networking division is ready to help specify the right gateway configuration for your control room or office network, with delivery available across Muscat, Sohar, Salalah and the broader Gulf region.
