Winsonic NE10002-208423 – IP68 EN50155 L2 Managed M12 PoE++ Switch

Overview

The Winsonic NE10002-208423 is a rugged IP68 EN50155 Layer-2 managed M12 PoE++ industrial Ethernet switch created for railway rolling stock, wayside cabinets, vehicles, and harsh outdoor deployments. Built with M12 X-coded connectors, this switch guarantees shock and vibration immunity and provides 10×10/100/1000Base-T copper ports, eight of which support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt). Each PoE++ port delivers up to 90 W, with a 200 W total budget and port-priority handling, ensuring essential devices like IP cameras, wireless access points, IIoT sensors, and HMIs remain powered. The NE10002-208423 integrates store-and-forward switching, a 20 Gbps backplane, 16K MAC table, and <10 µs latency for deterministic performance in demanding industrial networking environments. Its sealed aluminium IP68 enclosure, EN50155 railway compliance, EMC/EMS shielding, and −40 °C to +80 °C operating range make it ideal for GCC conditions and extreme climates worldwide.

Key Features & Specifications

• Ports: 10×1 Gbps M12 X-coded copper; store-and-forward; 20 Gbps switching capacity; 16K MAC table; <10 µs latency

• PoE: 8×PoE/PoE+/PoE++ (IEEE 802.3af/at/bt), up to 90 W/port, 200 W total budget, with port priority

• Redundancy & Security: ERPS/RSTP, Winsonic X-Ring self-healing, IEEE 802.1X access control, VLAN/QoS support

• Protection: IP68 housing, EN50155 railway certification, IEC 60068 shock/vibration compliance, EMC/EMS per EN/FCC

• Power: 48 V DC input via M12 A-coded connectors with dual-supply redundancy and reverse-polarity protection

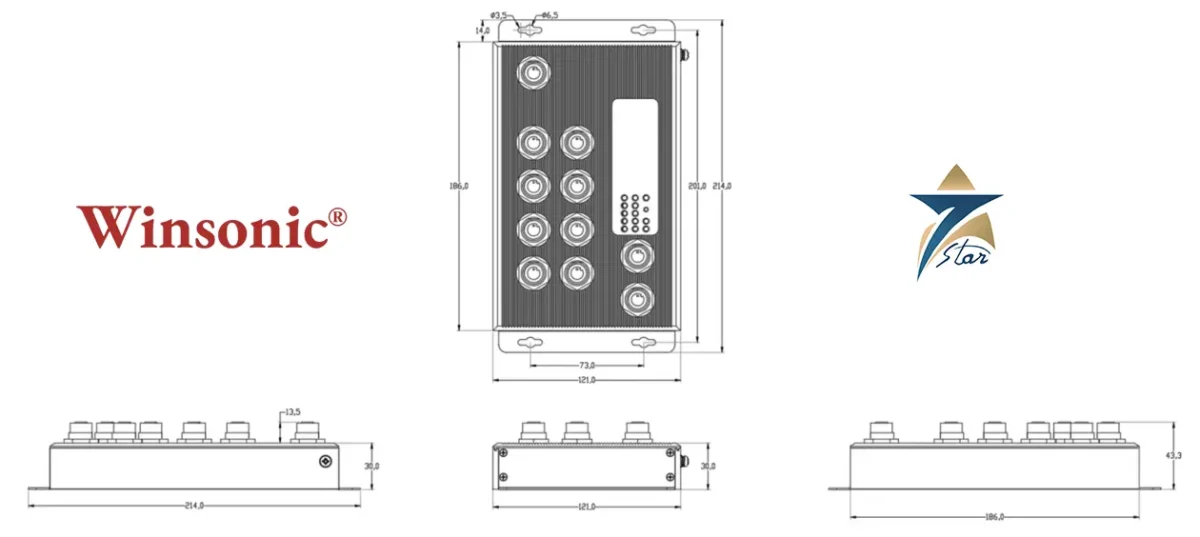

• Mechanical: Fanless cooling, wall-mount design, compact 186 × 121 × 30 mm size, ~1.13 kg weight

• Thermal: Wide operating temperature of −40 °C to +80 °C for desert heat or winter cold

Applications

The Winsonic NE10002-208423 EN50155 switch is perfect for:

• Railway Ethernet networks: rolling-stock coaches, locomotives, and trackside communication

• Smart transportation and ports: cranes, yard networks, and marine vessels requiring PoE++ power

• Oil & gas mobile assets and IIoT nodes: ruggedized PoE for field devices

• Surveillance & CCTV systems: high-power cameras on poles, tunnels, or moving vehicles

• Factory automation & SCADA: dependable industrial communication backbone with PoE++ capability

Seven Star Advantage

Seven Star LLC is Winsonic’s official representative in the Middle East. We provide:

• Genuine Winsonic hardware with competitive regional pricing

• Local validation of PoE budgets, network topology, and M12 pinouts

• Commissioning notes and long-term support for industrial Ethernet projects

• Additional resources like datasheets, mechanical drawings, and compliance certificates for tender submissions

Helpful Links

• Official Product Page:

Request a Quote for Winsonic NE10002-208423 – IP68 EN50155 L2 Managed M12 PoE++ Switch

Seven Star LLC—the authorized Winsonic partner in GCC—can supply the Winsonic NE10002-208423 with validated specs, PoE design support, and unmatched regional pricing. Request a quote or datasheet today to secure rugged EN50155 M12 PoE++ industrial switches for your rail, port, marine, or factory projects.

Technical Overview

The Winsonic NE10002-208423 is a Layer 2 managed industrial Ethernet switch from Winsonic’s EN50155 rail-rated switch family, officially titled by the manufacturer as a "10*1GE Copper EN50155 L2 Managed PoE++ Industrial Switch." Per Winsonic’s official product listing, the switch provides 10 ports of 10/100/1000Base-T Gigabit Ethernet connectivity via rugged M12 copper connectors, with 8 of the 10 ports supporting Power over Ethernet compliant with IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++) standards, delivering up to 15W, 30W, or 60W per port depending on the connected device’s negotiated power class.

As a managed switch, the NE10002-208423 supports VLAN segmentation, quality-of-service (QoS) traffic prioritization, and SNMP-based monitoring, along with ERPS and RSTP ring redundancy protocols (including Winsonic’s "X-Ring Self-Healing Ring" feature) for building resilient network topologies, and IEEE 802.1X port-based access control for network security. Seven Star LLC notes that while the switch’s managed status, port count, and PoE++ capability are confirmed directly from Winsonic’s official product listing, the exact IP ingress protection rating and precise operating temperature range specific to this part number were not fully confirmed from the manufacturer’s detailed specification page during this review — other models in the same EN50155 switch family carry explicit IP65, IP67, or IP68 ratings in their model titles, but this exact designation did not include one in the primary listing consulted. Customers requiring a confirmed IP rating for a specific installation environment should request the full datasheet from Seven Star LLC before finalizing an order.

Technical Specifications

Applications

EN50155-compliant managed PoE++ switches like the NE10002-208423 are used in rolling-stock and rail infrastructure networking requiring VLAN segregation and network redundancy — onboard train Ethernet backbones, PoE-powered onboard cameras and passenger information systems — as well as general ruggedized industrial edge networking applications where managed features and high shock/vibration tolerance are both required.

Why Seven Star LLC

Seven Star LLC helps customers across Oman and the GCC confirm the exact IP rating, operating temperature range, and PoE power budget for a specific Winsonic EN50155 switch part number before ordering, obtaining the manufacturer’s complete datasheet directly when published family-level information is not sufficient for a critical design decision.

Request a Quote for Winsonic NE10002-208423 – IP68 EN50155 L2 Managed M12 PoE++ Switch

Contact Seven Star LLC to request a quotation for the Winsonic NE10002-208423 managed EN50155 PoE++ switch. Our team can obtain the full manufacturer datasheet to confirm exact environmental ratings for your application, and support reliable delivery across Oman and the wider GCC region.

Ordering Notes

When requesting a quotation, please specify your required IP rating for the installation environment, total PoE power budget needed for connected devices, and any redundancy protocol (ERPS or RSTP) required for your network topology, so Seven Star LLC can confirm the correct configuration and obtain full manufacturer documentation for your order.

Managed Network Benefits for Rail Applications

The VLAN segmentation and QoS capabilities of this managed switch allow rail operators to separate safety-critical signaling traffic from passenger WiFi and entertainment system traffic on the same physical network infrastructure, while SNMP monitoring gives network administrators visibility into switch and port health across a distributed fleet of vehicles or trackside cabinets without requiring a physical site visit to check status.
