Winsonic NE10001-20842B – IP68 EN50155 10G L2 Managed M12 PoE++ Switch

The Winsonic NE10001-20842B is a rugged IP68 EN50155-compliant L2 managed PoE++ switch engineered for mission-critical networking in rolling stock, wayside, offshore, and industrial automation. Built on sealed M12 connectors for shock/vibration immunity, the unit offers 2×10GBase-T copper uplinks and 8×10/100/1000Base-T M12 copper downlinks, delivering a compact 10-port form factor with high-bandwidth backhaul and edge powering of cameras, APs, NVRs and IIoT nodes. All eight downlinks support PoE/PoE+/PoE++ (IEEE 802.3af/at/bt) with up to 90 W per port and a total PoE budget of 200 W—plus priority handling when the budget is exceeded.

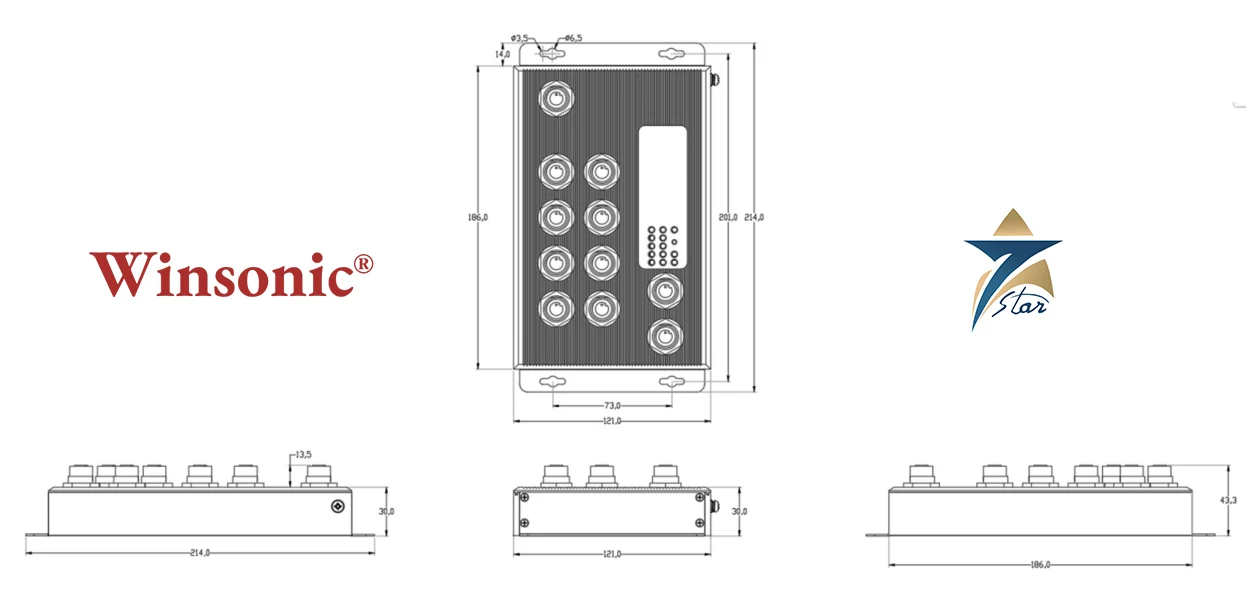

For network resiliency, ERPS/RSTP and Winsonic X-Ring enable sub-second recovery on ring topologies, while IEEE 802.1X access control protects your edge. The switch uses 48 V DC dual power inputs (M12 A-coded) with reverse polarity protection, supports fanless convection cooling, and operates across −40 °C to +80 °C. Measuring just 186×121×30 mm and weighing ~1.13 kg, it’s easy to wall-mount in space-constrained cabinets.

Key Specifications

• IP68 ingress protection, EN50155 railway standard

• Store-and-forward switching, 56 Gbps backplane, <10 µs latency

• 16K MAC address table, jumbo frame support

• Dual-power redundancy & reverse polarity protection

• EMC/EMI/EMS compliance (EN/FCC)

• M12 A-coded power and X-coded data connectors

• Operating humidity: 5–95 % non-condensing

Applications

Rail & transportation (rolling stock, trackside), oil & gas mobile assets, marine ports & vessels, CCTV and surveillance, factory automation, smart infrastructure in GCC’s harsh climates.

Seven Star Advantage

Seven Star LLC is Winsonic’s authorized representative in GCC & Middle East. We supply genuine Winsonic products, fast quotations, clear quotations, and local engineering support—sizing PoE budgets, ring designs, and pinouts—ensuring your projects deploy smoothly.

Technical Specifications

Request a Quote for Winsonic NE10001-20842B – IP68 EN50155 10G L2 Managed M12 PoE++ Switch

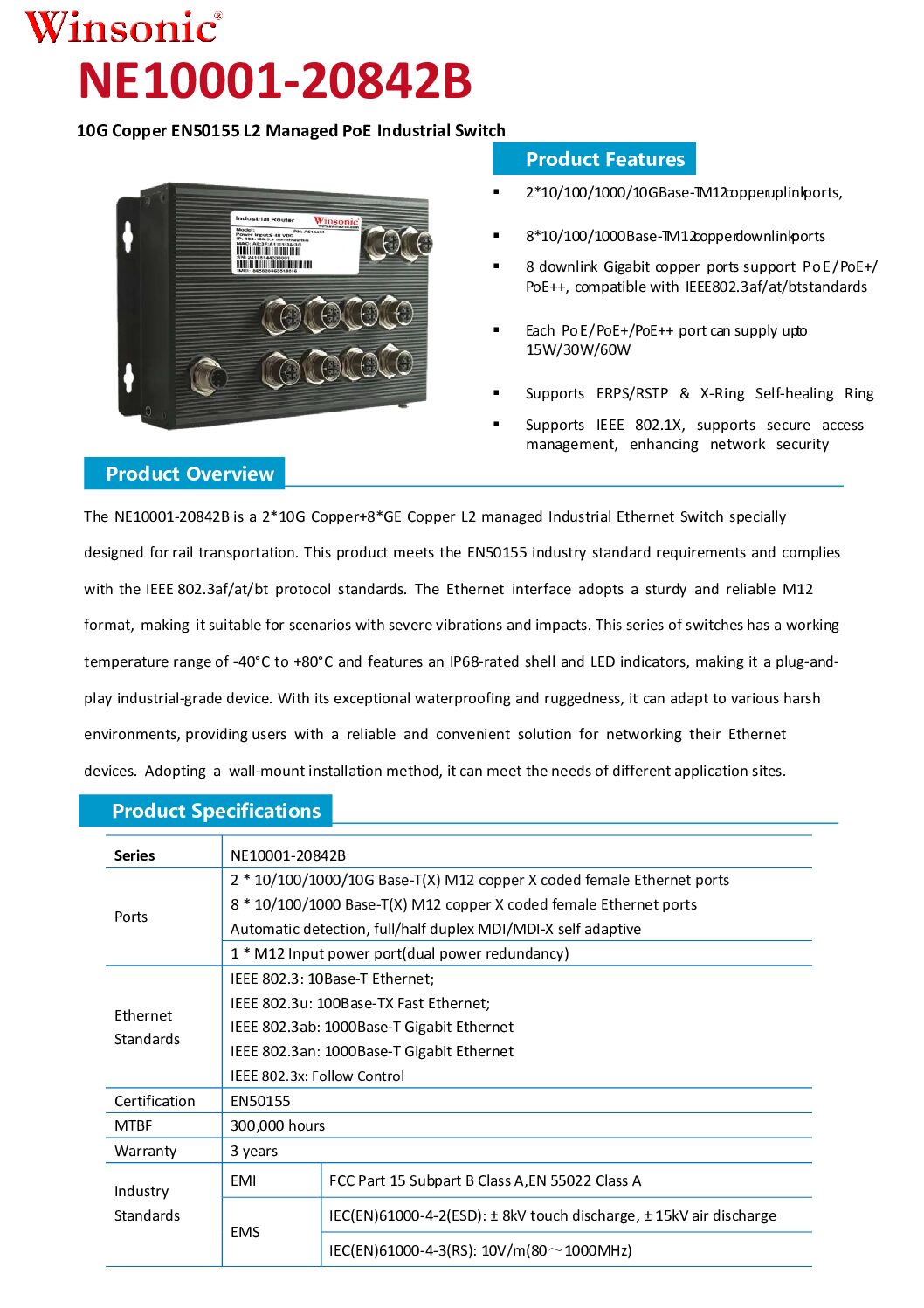

Planning a railway, marine, or rugged edge network? Request a quote or datasheet today—Seven Star LLC, Winsonic’s authorized GCC partner, will confirm compatibility, PoE budgets, lead time, and offer the region’s best pricing.

Why 10GBase-T Uplinks Matter

Because the NE10001-20842B’s two uplink ports run at up to 10 Gbps rather than the 1 Gbps common on most industrial switches, a single switch can aggregate the traffic from all 8 PoE-powered downlink devices — several 4K CCTV cameras, high-throughput access points, or IIoT sensor gateways — without the uplink itself becoming the bottleneck, which is increasingly the limiting factor as edge devices adopt higher-resolution video and more frequent telemetry. This makes the switch a natural fit for a railway trackside cabinet or offshore platform aggregation point where backhaul bandwidth, not just port count, determines whether the network design scales.

Why Seven Star LLC

Seven Star LLC is Winsonic’s authorized representative in Oman and the wider GCC, supplying the NE10001-20842B and related EN50155 railway-grade switches with local engineering support for PoE budget sizing, ring topology design, and M12 connector pinout verification before your order ships.

Industrial Applications

Beyond rolling stock and trackside cabinets, this switch class serves offshore platform CCTV and communications backbones, port and marine terminal surveillance networks, and factory automation cells requiring high-bandwidth camera or sensor aggregation in harsh, vibration-prone, or wash-down environments across Oman and the wider GCC. The IP68 sealed M12 connector system means the switch itself can be mounted outside a sealed cabinet in some installations, simplifying cable routing in space-constrained rolling stock or skid-mounted equipment.

PoE Budget Planning

With a total PoE budget of 200 W shared across 8 downlink ports and per-port delivery of up to 90 W, correctly sizing the connected device load matters: a mix of high-draw PTZ cameras and low-draw sensors should be tallied against the 200 W ceiling before committing to a port layout, since exceeding the budget invokes the switch’s priority-based power allocation and can leave lower-priority ports without power at peak load. Seven Star LLC helps customers total their planned device loads against this budget as part of the quotation process, so the delivered switch configuration matches the actual device population from day one.

Ring Redundancy in Practice

ERPS and Winsonic X-Ring both allow multiple switches to be wired in a physical ring rather than a linear daisy-chain, so that a single cable or switch failure does not take down every downstream device — the ring protocol detects the break and reroutes traffic around it, typically within tens of milliseconds, well inside the recovery time most safety and control applications tolerate. This is particularly valuable on rolling stock and long trackside runs, where a single cut cable in a linear topology would otherwise isolate every device beyond the break point until physically repaired.

Selection Notes

Confirm whether your project needs the full 2x10G uplink capacity or whether a lower-bandwidth Winsonic model would suffice, since the 10G uplink variant carries a cost premium that is only justified when the aggregated downlink traffic genuinely approaches or exceeds 1 Gbps. Also confirm the exact M12 connector coding (A-coded power, X-coded 10G data) against your existing cable and connector inventory before ordering, since M12 coding is not interchangeable between different signal types.

Environmental Suitability for GCC Deployment

The -40°C to +80°C operating range and IP68 sealing make this switch well suited to unshaded outdoor cabinets, rolling stock roof and undercarriage locations, and offshore equipment across the Gulf’s high-temperature summer conditions, where a standard IP30/IP40-rated industrial switch would require an additional climate-controlled enclosure to survive, adding cost and a potential single point of failure that the sealed, fanless NE10001-20842B avoids entirely. Seven Star LLC arranges delivery to Muscat, Sohar, Salalah, or any other GCC site once your configuration is confirmed.
