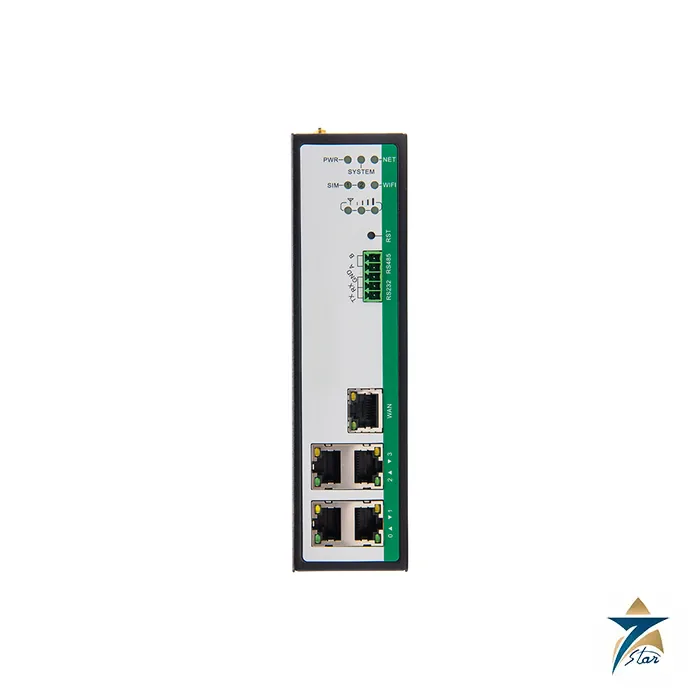

Winsonic NE24003-104313 Industrial 4G Router with 5 Ethernet Ports and Dual SIM
Overview
Winsonic NE24003-104313 is a 5-port Gigabit industrial 4G router with dual SIM failover and MQTT support, designed to serve as the primary cellular gateway for sites with several local Ethernet devices. Built on Winsonic’s industrial networking platform, the NE24003-104313 pairs a cellular or wired WAN uplink with 4x 10/100/1000Mbps Gigabit Ethernet LAN ports and 2 drawer-type SIM/UIM slots (1.8V/3V) for dual-operator backup, giving system integrators a single rugged box that keeps critical field networks online even when a primary link fails.
As the official authorized partner and exclusive regional representative for Winsonic, Seven Star LLC proudly supplies the Winsonic NE24003-104313 to system integrators, utilities and industrial operators throughout Oman, Muscat and the wider GCC, with local technical support for every unit supplied.
Operating Principle
The Winsonic NE24003-104313 establishes its wide-area connection over 1 WAN port, negotiating with the mobile network or upstream fixed line and then routing, NATing and firewalling traffic between the WAN interface and its local 4x 10/100/1000Mbps Gigabit Ethernet LAN ports. 2 drawer-type SIM/UIM slots (1.8V/3V) for dual-operator backup lets the gateway automatically fail over to a backup operator or SIM the moment the connection manager detects a data-limited, denied or lost network condition, so field devices behind the router keep reporting without manual intervention.
All routing, VPN tunnelling and protocol handling run on the router’s embedded Linux platform (Linux OpenWrt), which supports IPsec, OpenVPN, L2TP, PPTP, GRE, GRETAP and VxLAN tunnels to carry field traffic securely back to a central SCADA host, cloud platform or VPN concentrator. The practical result for the operator is a single device that combines cellular WAN redundancy, industrial-grade protocol handling and centralised remote management through Winsonic’s StarCloud platform, with no moving parts and no field maintenance beyond periodic firmware review.
Engineering Design of the Winsonic NE24003-104313
The Winsonic NE24003-104313 is built around 128MB RAM, 16MB Flash and an industrial-grade cellular module, housed in a desktop, rail-mount and wall-mount metal enclosure enclosure with IP30 ingress protection. Power is supplied via 9 to 48VDC wide-range input, with built-in reverse-polarity, overvoltage and overcurrent protection, and every Ethernet, serial and SIM interface carries dedicated isolation or ESD protection (1.5KV electromagnetic isolation on Ethernet, up to 15KV ESD on serial and SIM interfaces) to survive the electrical transients typical of industrial and outdoor installations.
Interface-wise the Winsonic NE24003-104313 provides 1 WAN port and 4x 10/100/1000Mbps Gigabit Ethernet LAN ports, 4x Gigabit LAN ports for direct connection of PLCs, cameras and local switches, and RS232+RS485 interfaces, giving installers the flexibility to connect field controllers, cameras, meters or vehicle buses directly to the gateway. 2.4GHz 802.11b/g/n Wi-Fi, up to 150Mbps (optional) extends connectivity to local wireless clients where fitted, and the unit is rated for ≥100,000 hours MTBF with a net weight of 0.67kg net / 0.95kg gross, reflecting Winsonic’s fully industrial, fanless design philosophy.
Key Features
The Winsonic NE24003-104313 bundles cellular redundancy, industrial protocol support and remote manageability into a single DIN-rail-ready device. Key characteristics include:
- 1 WAN port combined with 4x 10/100/1000Mbps Gigabit Ethernet LAN ports for flexible WAN/LAN network architecture.
- 2 drawer-type SIM/UIM slots (1.8V/3V) for dual-operator backup, ensuring continuity of service if a primary carrier fails.
- Comprehensive VPN suite: IPsec, OpenVPN, L2TP, PPTP, GRE, GRETAP and VxLAN.
- RS232+RS485 interfaces for direct connection of legacy and modern field instruments.
- 9 to 48VDC wide-range input with reverse-polarity, overvoltage and overcurrent protection.
- IP30 rated enclosure built for desktop, rail-mount and wall-mount metal enclosure.
- Centralised remote management and firmware updates via Winsonic’s StarCloud / Star Device Manager platform.
- SNMP v1/v2/v3 support with traps, traffic statistics and alert thresholds for proactive network monitoring.
Industrial Applications
The Winsonic NE24003-104313 is specified wherever a site needs cellular WAN redundancy alongside 4x 10/100/1000mbps gigabit ethernet lan ports, particularly multi-device remote sites such as pump stations, substations and unmanned equipment rooms where several Ethernet devices share one dual-SIM cellular uplink. Its combination of industrial protocol support, wide power input and extended operating temperature range makes it equally suited to unmanned outdoor cabinets and indoor control rooms across district cooling plants, RO desalination sites, and oilfield and utility telemetry networks.
As the officially authorized partner for Winsonic, Seven Star LLC distributes the NE24003-104313 to system integrators and utilities delivering resilient industrial networks throughout Oman and the GCC, including projects in the Sohar and Salalah economic zones and Muscat-area municipal and utility infrastructure that depend on continuous cellular backhaul.
Technical Specifications
The table below summarises the principal hardware and networking specifications of the Winsonic NE24003-104313:
| Parameter | Specification |
|---|---|
| Model | NE24003-104313 |
| Description | Industrial 4G Router with 5 Ethernet Ports and Dual SIM |
| WAN Interface | 1 WAN port |
| LAN / Ethernet | 4x 10/100/1000Mbps Gigabit Ethernet LAN ports |
| SIM / Cellular | 2 drawer-type SIM/UIM slots (1.8V/3V) for dual-operator backup |
| Wi-Fi | 2.4GHz 802.11b/g/n Wi-Fi, up to 150Mbps (optional) |
| Serial / Extra Interfaces | RS232+RS485 interfaces; 4x Gigabit LAN ports for direct connection of PLCs, cameras and local switches |
| Memory / Storage | 128MB RAM, 16MB Flash |
| Power Input | 9 to 48VDC wide-range input |
| Protection Rating | IP30 |
| Operating System | Linux OpenWrt |
| Enclosure | desktop, rail-mount and wall-mount metal enclosure |
| Weight | 0.67kg net / 0.95kg gross |
| Reliability | ≥100,000 hours |
| VPN Support | PPTP, L2TP, IPsec, OpenVPN, GRE, GRETAP, VxLAN |
| Management | SNMP v1/v2/v3, Web GUI, SSH/Telnet, StarCloud platform |
Request a Quote for Winsonic NE24003-104313
Seven Star LLC invites system integrators, utilities and industrial end users across Oman and the GCC to submit a formal RFQ for the Winsonic NE24003-104313. We supply on request with lead time confirmed at quotation, provide the official Winsonic technical datasheet on request, and our instrumentation and networking division can help confirm SIM, antenna and power requirements before you order. As the authorized partner for Winsonic in Oman and the GCC, we supply every NE24003-104313 with manufacturer documentation and technical support. Contact Seven Star LLC today to request pricing and lead time for the Winsonic NE24003-104313.
Browse the full Winsonic range or see more Industrial Communications products supplied by Seven Star LLC in Oman and the GCC.
Winsonic product families
The M12 switches on this page are specified to EN 50155, the standard for electronic equipment on rail vehicles. Listed models include the L2 managed NE10002 and the NE10003 in IP68 housings, the unmanaged NE10004 with 10G ports and IP65 sealing, the unmanaged NE10005 and the 5-port IP68 NE10006, with PoE+ or PoE++ ports depending on the model. On the cellular side the listing covers NE24 series industrial 4G routers and edge gateways, the NE20001 vehicle-grade 5G transit gateway and the NE31001 outdoor LTE-A router. WSFP Gigabit SFP transceivers provide the fiber uplinks. Computing and display products include the PZB zero bezel panel PC and the RM rack mount monitor, next to the flush mount and zero bezel LCD monitors Winsonic builds for industrial use.Where Winsonic equipment is used
Typical uses are on-board networks for trains, metro cars and buses, wayside cabinets, traffic management, remote pump stations and water plants, energy metering at unmanned sites, and machine monitoring and operator stations in factories.Ordering Winsonic switches and routers: what we need
Send the complete part number, including the digits after the hyphen, because they separate variants of the same base model. Where you are still selecting, give us:- port count, port speed and connector type (M12 coding or RJ45)
- PoE power needed per port and the supply voltage available
- managed or unmanaged operation, and the IP rating required
- for routers: mobile operator, SIM count, serial or Ethernet interfaces
- for panel PCs: screen size, touch type, processor and mounting
