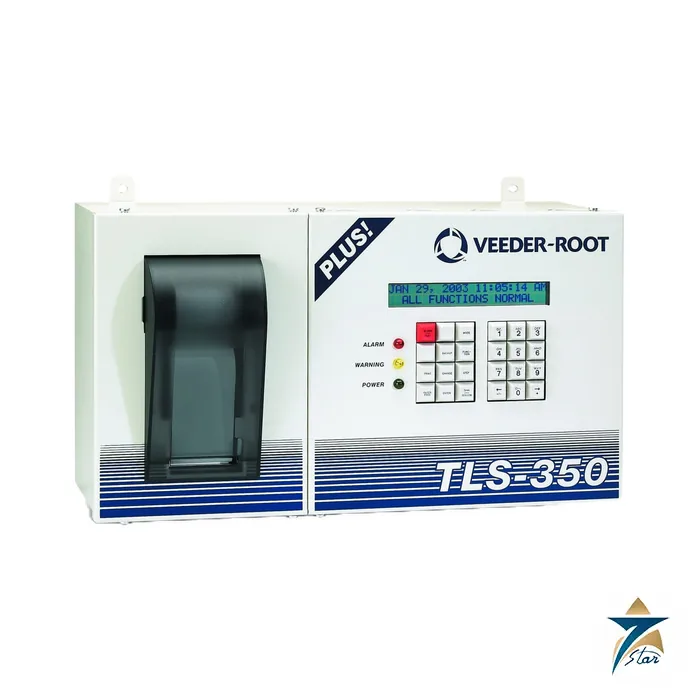

Veeder-Root TLS-350PLUS Automatic Tank Gauge (Legacy Console)

Name: Veeder-Root TLS-350PLUS Legacy Tank Gauge – Datasheet & Quote
Brand: Veeder-Root
SKU: TLS-350PLUS

Description

Legacy modular tank gauge for existing retail and commercial sites

The Veeder-Root TLS-350PLUS is an earlier-generation automatic tank gauge console offering in-tank inventory, leak detection and compliance for retail and commercial operations. This page is for sites that already run TLS-350 series equipment and need to identify consoles, modules and software options. It is a legacy product, so please read the status note below.

The datasheet in our library is the 2021 edition. Veeder-Root’s website presents the TLS-450PLUS and the TLS4 and TLS4B as its current automatic tank gauges, with an upgrade page for the TLS-450PLUS, and its obsolete-product notifications page lists an End of Sale notice for TLS-350 Series ATG systems (in the 2021 list) and an End of Life notice for TLS-350 systems in California (2025). Supply of consoles and modules therefore depends on remaining stock, and we confirm availability per enquiry.

Technical specifications

Values come from the Veeder-Root TLS-350PLUS datasheet (P/N 577014-453 Rev. B, 2021).

Parameter	Specification
Manufacturer / model	Veeder-Root TLS-350PLUS Automatic Tank Gauge (legacy; end of sale notice published)
Console part numbers	848290-022 with integral printer, 120 V, UL/cUL; 848290-002 without printer, 120 V, UL/cUL
Software enhancement modules	CSLD 330160-002; Fuel Manager 330160-003; Ultimate Testing PLLD 330160-010; Risk Management wireless PLLD 330160-060; Base Compliance wireless PLLD 330160-050; ISD 330160-004
Probe interface	Four-input probe module 329356-002 (all Mag probes); up to 16 probes per console
Sensor modules	Eight-input smart sensor module 329356-004 (mag sump sensors); vacuum sensor module 332250-001; interstitial/liquid sensor module 329358-001; vapour sensor module 329357-001; groundwater sensor module 329399-001
Other modules	Four-relay output 329359-001; two-input/two-relay 329360-001; dispenser controller 331408-001; line leak controller 330374-001
Communications	RS-232 interface 330148-001 / 329362-001; dual RS-232/RS-485 330586-001; SiteFax 330149-002; Ethernet TCP/IP 330020-425
Memory expansion	ECPU1 1 MEG 333760-102; ECPU2 1 MEG 333760-201; ECPU2 2 MEG 333760-203 (needed for ISD or Maintenance Tracker)
Display	20-character liquid crystal display
Power	Universal AC 100 to 249 V, 50/60 Hz, 2 A max
Operating / storage temperature	0 to +45 °C operating; -40 to +74 °C storage; indoors, climate-controlled
Dimensions / construction	19.75 x 11.25 x 7.19 in (50.17 x 28.58 x 18.26 cm); 16 GA powder-coated steel
Probe and sensor wiring	Shielded cable below 100 pF/ft; maximum 1,000 ft (304.8 m)
Approvals listed	UL cUL, ATEX, IECEx

Using the datasheet for spares and migration

The datasheet separates low-power compartment interface modules (probes and sensors) from high-power modules (relays and controllers), and lists the sensor part numbers each module serves. It also lists the communications and memory expansion modules and notes that a memory expansion is required for software version 27 or higher with more than eight tanks or with BIR on manifolded tanks. Features such as BIR and variance analysis are standard in the TLS-350R and upgradeable in the TLS-350PLUS.

For a new site, Veeder-Root’s current consoles are the TLS-450PLUS, TLS4 and TLS4B on our site. Mag Plus, Mag-FLEX and many sensors remain compatible with TLS-350 series consoles through the 4-input probe module, as the probe datasheets state.

Status and what to confirm

Legacy status: the manufacturer’s end of sale notice for TLS-350 series systems applies; confirm that modules or consoles can still be supplied.
Console model (TLS-350PLUS, TLS-350R or PC-350 variants), software version and installed modules.
Whether the site is better served by replacing the console with a TLS-450PLUS (the manufacturer’s own upgrade path).

Documents and quotation

The Veeder-Root TLS-350PLUS datasheet (2021 edition) is attached to this page as a PDF. Send us the console serial or part number, software version and the modules you need and we will confirm what can be supplied and quote. Seven Star LLC is an independent supplier in Muscat; price and lead time are confirmed per RFQ. Related range: level instrumentation.

Datasheets & Documents

Datasheet Veeder-Root TLS-350PLUS Automatic Tank Gauge datasheet (P/N 577014-453 Rev. B, 2021) Download
